- Joystick controllers have come a long way -- from simple levers to advanced control systems used in construction, agriculture, defense, and more
- Industrial joysticks come in different types, such as single-axis and multi-axis, offering flexible control options for various machines
- Modern sensing technologies like hall effect, resistive, inductive, and photoelectric sensors ensure smooth, precise, and durable performance
- They're widely used in cranes, tractors, UAVs, forklifts, and even e-transportation systems
- Choosing the right joystick depends on your equipment, environment, control type, and durability needs
- Customizable grips and multifunctional inputs make industrial joysticks adaptable to specialized applications

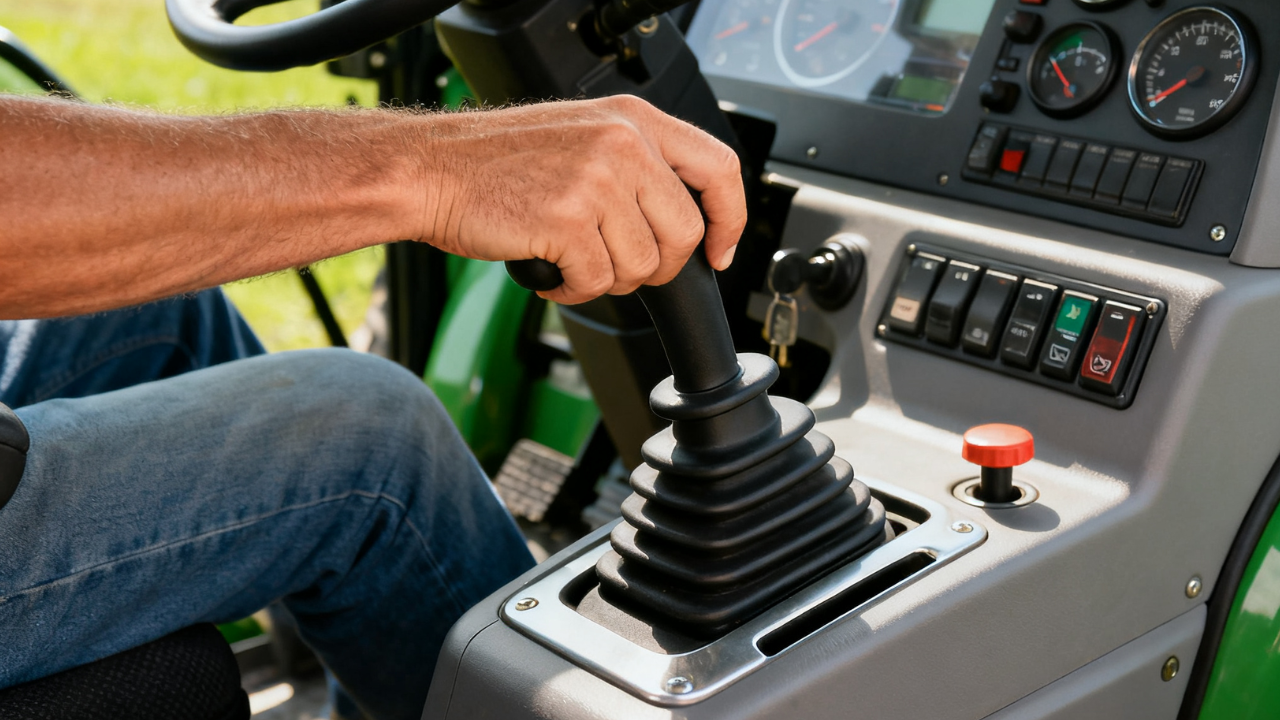

The joystick controller stands as a beacon of precision and reliability in the realm of machinery control. Over the years, these devices have undergone significant evolution, transforming from rudimentary levers into advanced control systems that serve a multitude of sectors, including construction, agriculture, and defense. The journey began in 1835 with the invention of the first industrial joystick by American innovator Otis, who designed a steam-powered single-bucket excavator. The operator utilized a control lever to manipulate the excavator, marking the inception of joystick technology in industrial applications. Today, joysticks have become integral components of heavy machinery, incorporating cutting-edge sensing technologies that enhance their functionality and efficiency.
Types of Industrial Joysticks
An industrial joystick controller is specifically engineered for controlling machinery and equipment within industrial environments. It converts manual input into electrical signals, ensuring robust and reliable control essential for heavy-duty applications. Various types of joysticks are available, each designed to meet specific operational needs:
Single-axis joysticks
These devices control movement along a single direction, either forward/backward or left/right. Often referred to as paddle controllers, single-axis joysticks are ideal for applications that require straightforward and simple directional control, providing operators with an intuitive interface for maneuvering equipment.
Multi-axis joysticks
Unlike their single-axis counterparts, multi-axis joysticks offer control across two or more axes, facilitating complex movements. These controllers are particularly advantageous in applications that demand simultaneous control of multiple movements, such as cranes, excavators, and robotic arms. Their design allows for enhanced precision and flexibility, making them essential tools in modern industrial operations.
In summary, joystick controllers are pivotal in modern industrial applications, providing the necessary versatility and control to operate a wide range of machinery effectively. Their evolution from simple levers to sophisticated control systems reflects the ongoing advancements in technology, ensuring that industries can meet the demands of an ever-changing landscape.
Exploring the World of Sensing Technologies in Joystick Controllers
Joystick controllers are integral to various industrial applications, employing sophisticated sensing technologies to convert motion into actionable signals. Each technology has its unique advantages, ensuring that users can achieve precise control and reliability in their operations.
Hall Effect Joysticks
Hall effect joysticks stand out for their use of magnetic field detection to accurately measure the position of the joystick handle. This technology not only provides exceptional precision in control but also boasts remarkable durability. Hall sensor joysticks are engineered to withstand the test of time, often enduring over 10 million cycles of use without significant degradation, making them a preferred choice for demanding environments.
Resistive Joysticks
Resistive joysticks utilize potentiometers to gauge the deflection of the joystick lever, translating this movement into a corresponding change in voltage output. While this traditional technology is both reliable and well-established, it employs contacting mechanisms that may be subject to wear over time. Nevertheless, the robustness of resistive joysticks makes them a dependable option for various applications.
Inductive Joysticks
Inductive joysticks introduce a more advanced approach by utilizing electrical coils to generate and detect magnetic fields. As the joystick lever is moved, the interaction between the coils is altered, which subsequently modifies the voltage output. This method ensures a dynamic and responsive control experience, adapting seamlessly to user inputs.
Photoelectric Joysticks
Photoelectric joysticks represent a cutting-edge innovation, employing light sensors to detect the position of the joystick handle without any physical contact. This contactless operation not only enhances the longevity of the joystick but also minimizes wear and tear, making it an excellent choice for applications requiring high precision and reliability.
What Are Industrial Joysticks Used for?
Industrial joysticks are essential tools that enhance control and precision across various sectors. APEM joysticks find their primary applications in the following areas:
Construction Machinery
In the realm of construction, joystick controllers are indispensable for crane and hoist operations. They provide operators with the ability to manage heavy loads with remarkable accuracy, ensuring both stability and safety during lifting and maneuvering tasks.
Agricultural Machinery
Within the agricultural sector, joystick control systems are integrated into tractors and harvesters. These systems facilitate seamless navigation across fields, significantly improving operational efficiency and productivity.
Military and Defense
APEM joysticks play a crucial role in military applications, particularly in the control of unmanned aerial vehicles (UAVs). Their reliability and performance under challenging conditions make them ideal for operations requiring precision and responsiveness.
Material Handling
The manufacturing of industrial joysticks by APEM extends to equipment used in material handling. This includes electric forklifts and various other vehicles designed for transporting and managing materials, where precise control is paramount.
E-Transportation
In the evolving landscape of transportation technology, joysticks are increasingly replacing traditional steering wheels in scenarios where human intervention is necessary to control autonomous vehicles. This innovative approach enhances the driving experience and safety for users.
Choosing the Right Industrial Joystick
Selecting the ideal industrial joystick is a critical decision that hinges on various essential factors, ensuring that you achieve optimal performance tailored to your specific application. Below is a detailed exploration of the key considerations to guide your selection process:
1. Application and Environment
Type of Machinery
It is imperative to identify the specific context in which the joystick will be utilized. Whether in construction, agriculture, military, marine, or industrial automation, each application demands unique specifications. For instance, some environments may necessitate higher precision or enhanced ruggedness.
Operating Environment
Evaluate the conditions the joystick will face. If it will be subjected to harsh elements such as extreme temperatures, dust, moisture, or chemicals, it is advisable to choose a joystick with a high Ingress Protection (IP) rating or a sealed design to ensure durability and functionality.
2. Ergonomics and User Comfort
Design for Comfort
For applications involving prolonged use, selecting a joystick with an ergonomic design is crucial. It should fit comfortably in the operator's hand and minimize fatigue. Certain models are specifically optimized for armrest mounting and one-handed control, enhancing user experience.
Grip Style
Depending on the control requirements, various handle types may be necessary. Options include ball grips, multifunctional grips, or custom-designed grips tailored to specific needs.
3. Control Requirements
Axes of Movement
Assess the number of axes the joystick must control. For simpler tasks, a 2-axis joystick may suffice for basic up/down and left/right movements. However, more complex machinery may require additional axes for comprehensive control.
Proportional vs. On/Off Control
Determine if the application requires proportional control, which allows for precise, variable movement, or a straightforward on/off switch. Proportional control joysticks facilitate finer adjustments, which are essential for delicate operations.
4. Electrical Specifications
Output Type
Ensure that the joystick is compatible with the control system of the machinery. Joysticks typically offer a range of output signals, including analog, Pulse Width Modulation (PWM), or CANbus communication.
Current and Voltage Requirements
It is vital to select a joystick that aligns with the voltage and current specifications of the system to prevent potential electrical failures.
5. Durability and Life Expectancy
Mechanical Endurance
Consider the expected number of operational cycles the joystick can endure, particularly in high-duty environments. Hall effect joysticks are recognized for their exceptional longevity, making them a top choice for demanding applications.
Sealing of Industrial Joysticks
Industrial joysticks are engineered to withstand harsh conditions, often featuring the capability of up to 20 million operating cycles and IP67 protection. This ensures complete dust resistance and safety against water immersion, allowing them to perform effectively in extreme temperatures while resisting electromagnetic interference (EMI) and radio frequency interference (RFI).
Material Quality
Seek joysticks constructed from robust materials such as metal or reinforced plastics, particularly for heavy-duty applications, to ensure long-lasting performance.
6. Customization and Additional Features
Multifunctional Inputs
Many joystick models allow for the integration of buttons and switches, enabling additional functions. Customizable options are available to accommodate complex control needs. -
Customization
In certain scenarios, specific applications may require custom labeling, unique handle designs, or specialized functions that deviate from standard offerings. Engaging with an APEM representative can provide valuable insights and assistance in making an informed decision tailored to your requirements.
FAQ
Q1: What industries utilize industrial joystick controllers?
A1: Industrial joystick controllers are employed across various sectors, including construction, agriculture, military, and e-transportation, providing operators with precise and dependable control over heavy machinery and vehicles.
Q2: What distinguishes single-axis joysticks from multi-axis joysticks?
A2: Single-axis joysticks operate in one direction (either forward/backward or left/right), whereas multi-axis joysticks facilitate more intricate movements, making them suitable for applications such as cranes or robotic arms.
Q3: Which joystick type offers the greatest longevity?
A3: Hall Effect joysticks are recognized for their durability, often exceeding 10 million cycles, making them particularly well-suited for challenging industrial environments.
Q4: How should one select the appropriate joystick?
A4: When selecting a joystick, consider the type of machinery, the working environment, and specific control requirements. It is advisable to prioritize ergonomic design, voltage compatibility, and a high IP rating for enhanced reliability.
Q5: Is customization available for industrial joysticks?
A5: Yes, industrial joysticks can be customized. Options include various grip styles, the addition of buttons or switches, and the design of custom handles to meet specific control needs.
