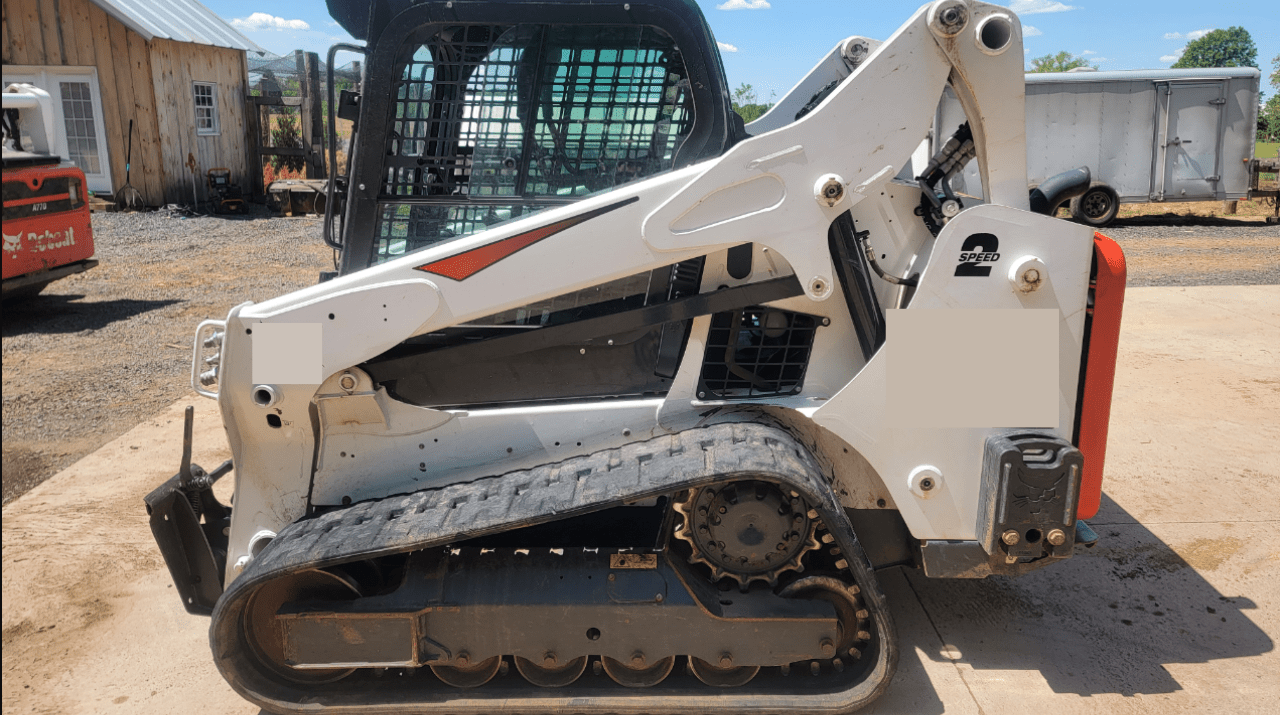

Bobcat T595



Operating Specifications

Horsepower                                                                                70.0 HP

Lifting Capacity (35% Tipping)                                              2280 lbs

Rated Operating Capacity                                                    2280 lbs

Lifting Capacity (50% Tipping)                                              3142 lbs

Operating Weight                                                                      8022 lbs

Tipping Load                                                                               6517 lbs

Lift Breakout Force

Tilt Breakout Force

Max. Travel Speed                                                                    7.1 mph

Ground Pressure                                                              5.1 psi



Cycle Time

Raise Lift Arms                                                                       3.5 sec.

Lower Lift Arms                                                                      2.6 sec.

Bucket Rollback                                                                     1.8 sec.

Bucket Dump                                                                          2.5 sec.



Hydraulic System

Pump Flow                                                                                17.1 GPM

Relief Pressure                                                                        3550 psi

Optional Flow                                                                           36.6 GPM

Hydraulic Capacity                                                                 9.5 gal



Engine Specs and Usable Horsepower for Compact Track Loader

Manufacturer                                                                        Doosan

Model                                                                                        D24

Type                                                                                          Diesel

Cylinders                                                                                      4

Emissions                                                                             Tier 4 - Stage V

Rated Speed                                                                         2600 RPM

Torque Power                                                                      1800 RPM

Combustion                                                                           Direct injection

Compression Ratio                                                            17.0 :1

Firing Order                                                                           1-3-4-2

Gross Power                                                                         70.0 HP

Displacement                                                                       146.0 cu in.

Bore                                                                                         3.5 in

Stroke                                                                                      3.7 in

Peak Torque                                                                         185.3 ft-lb

Coolant Capacity                                                                 3.1 gal

Engine Oil Capacity                                                            2.6gal

Fuel Tank Capacity                                                            36.5 gal

The Bobcat T595 features a vertical lift path, which enhances its ability to lift heavy loads to greater heights and is ideal for loading trucks or stacking materials.



Dimensions and Overall Width

Height                                                                                             77.8 in.

Bucket Hinge Pin (maximum lift height): 119.0 in.

Width                                                                                               67.0 in.

Length                                                                                             133.0 in.

Dump Height

Dump Reach                                                                                  18.4 in.

Ground Clearance

Dump Angle                                                                                     39°

Rollback Angle                                                                                29°

Departure Angle                                                                            28°



Undercarriage

Track Width                                                                                       12.6 in

Track Length                                                                                    104.5 in

Ground Contact Length                                                             54.1 in



The Bobcat T595 features a solid undercarriage and low ground pressure, which helps with traction and makes it reliable for demanding jobs. Check track tension and inspect rollers regularly. Greasing the lift arms and pivot joints supports optimal operation. Operators should avoid sharp turns on hard surfaces to extend undercarriage life.



Shop parts for Bobcat T595:

https://www.fabheavyparts.com/collections/doosan-d24-engine-parts



Travel and Maneuverability

The Bobcat T595 stands out for its impressive travel and maneuverability, making it built for contractors and landscapers who demand more usable horsepower and efficiency on the job. Powered by a robust Tier 4 engine, this machine is designed to deliver the kind of power that lets you work quicker and outperform the competition, no matter the task at hand.



With a maximum travel speed of 7.1 mph, the Bobcat T595 ensures you can move swiftly between tasks, saving valuable time on a busy jobsite. For those who need even more speed, the optional 2-speed upgrade boosts travel speed up to 10.4 mph, giving you the edge to deliver results faster and stay ahead of the competition.



The machine’s overall width of 67.0 inches and overall height of 77.8 inches make it perfectly suited for navigating tight spaces, whether you’re working in residential backyards, construction sites, or livestock operations. Its length of 133.0 inches provides a stable platform, enhancing both travel and maneuverability, while the vertical lift path gives more reach at full height to handle heavier loads and place materials accurately.



Equipped to handle a variety of attachments, the Bobcat T595 is ready to tackle any challenge, from landscaping to material handling. Standard hydraulic output can suit many work needs, while the high-flow option adds more hydraulic output for expanded attachment versatility with trenchers, stump grinders, and drum mulchers to help you load faster on demanding jobs. The control and attachment setup can also suit operator preferences, with optional hand and foot controls available as an option. Its optimized dimensions and powerful engine mean you get more usable horsepower where it counts, helping you work quicker and more efficiently. Designed with versatility and productivity in mind, this machine is a favorite among those who need reliable performance and the ability to upgrade as their needs grow.



Whether you’re looking to outperform the competition or simply get more done in less time, the Bobcat T595 delivers the travel speed, power, and maneuverability you need to get the job done right.
