Operating Specifications and Operating Weight

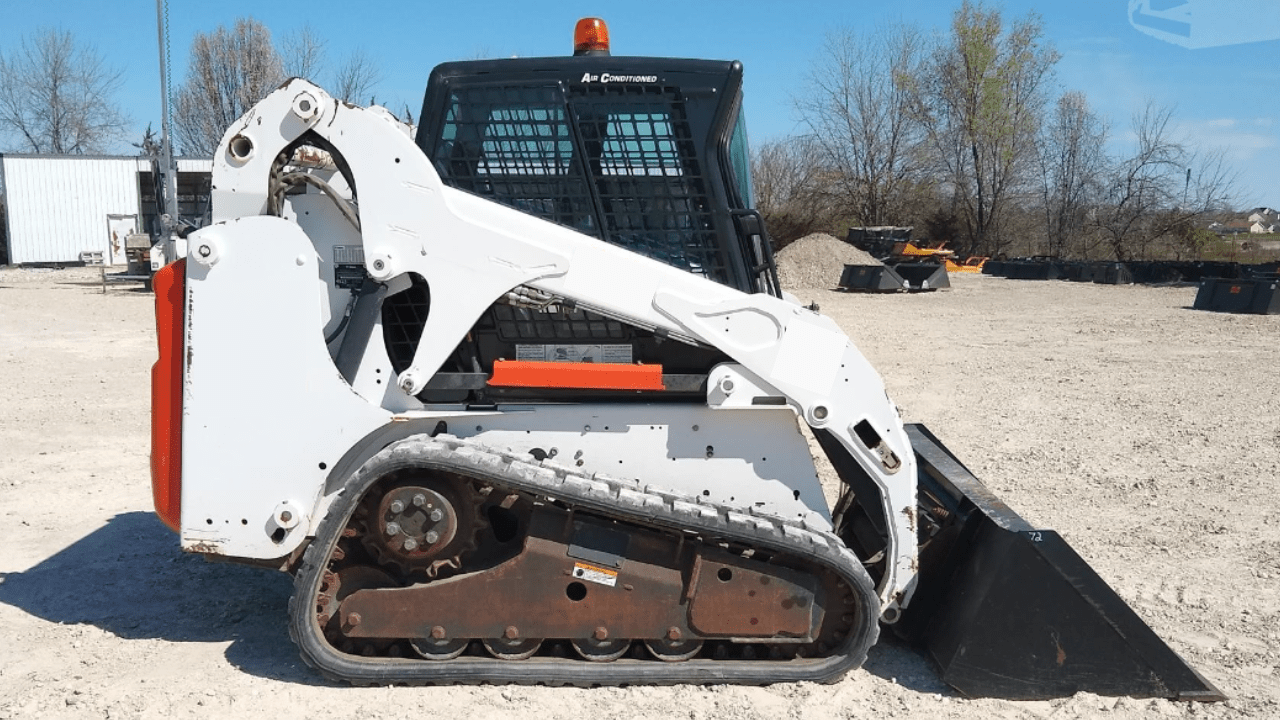

The Bobcat T190 is a compact track loader and skid steer built from 2001 to 2013, widely regarded as one of the most reliable skidsteers and a bulletproof workhorse. Its vertical lift path improves loading and carrying performance, while the tracked undercarriage delivers strong traction and low ground pressure.
Horsepower 66.0 HP
Lifting Capacity (35% Tipping) 1900 lbs
Lifting Capacity (50% Tipping) 2715 lbs
Operating Weight 7612 lbs
Tipping Load 6851 lbs
Lift Breakout Force 4700 lbs
Tilt Breakout Force 4450 lbs
Max. Travel Speed 7.1 mph
Ground Pressure 4.9 psi
Cycle Time and Max Lift
Raise Lift Arms 3.7 sec.
Lower Lift Arms 2.4 sec.
Bucket Rollback 1.9 sec.
Bucket Dump 2.4 sec.
Hydraulic System
Pump Flow 16.3 GPM
Relief Pressure 3300 psi
Optional Flow 25.5 GPM
Hydraulic Capacity 9.0 gal
The hydraulic system supports over 100 attachments for digging, lifting, and grading, and power attach with attachment control makes them easy to get hooked up.
Engine Specs
Manufacturer Kubota
Model V2403M-DI-T
Type Diesel
Cylinders 4
Emissions Tier 2
Rated Speed 2700 RPM
Torque Power 1600 RPM
Combustion Spherical (E-TVCS)
Compression Ratio 23.2:1
Firing Order 1-3-4-2
Gross Power 66.0 HP
Net Power 61.0 HP
Displacement 148.5 cu in.
Bore 3.4 in.
Stroke 4.0 in.
Peak Torque 117.0 ft-lb
Coolant Capacity 3.0 gal
Engine Oil Capacity 2.3 gal
Fuel Tank Capacity 28.0 gal
A common reference for this machine is the Kubota V2003T, a 4-cylinder, turbocharged diesel engine. This setup is built for hard work and helps make the T190 one of the reliable skidsteers on the used market. In well-kept machines, the engine is often described as a bulletproof workhorse that starts with no trouble, keeps running smoothly, and operates reliably.
Dimensions
Height 76.3 in.
Bucket Hinge Pin 118.2 in.
Width 66.0 in.
Length 130.3 in.
Dump Height 91.0 in.
Dump Reach 30.9 in.
Ground Clearance 8.1 in
Dump Angle 42°
Rollback Angle 31°
Departure Angle 25°
Undercarriage and Track Rollers
Track Width 12.6 in
Track Length 101.9 in
Ground Contact Length 55.2 in
The Bobcat T190 uses narrow rubber tracks with a zig-zag tread pattern, and its 4.9 psi ground pressure helps it work effectively in soft, wet, and muddy ground. Undercarriage upkeep deserves attention because wear items such as track rollers and sprockets can raise maintenance and repair costs; buyers often look for good tracks or new tracks when checking condition.
