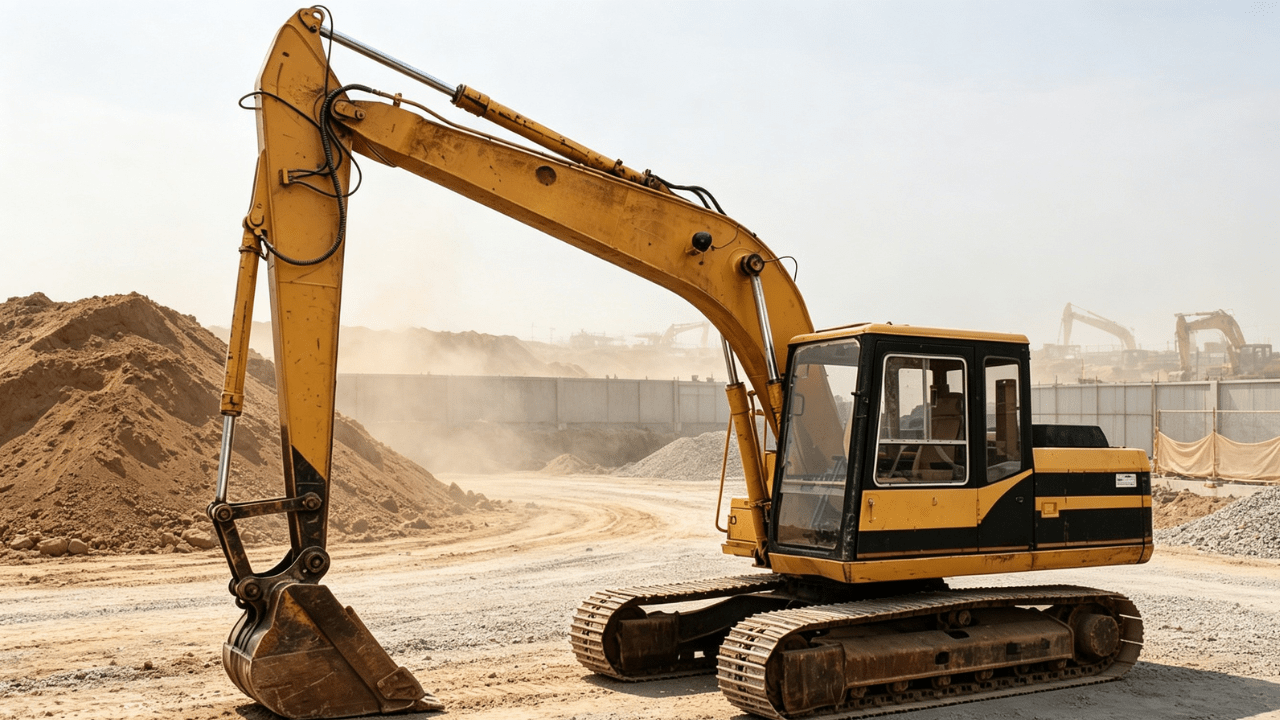

Caterpillar E120B Excavator Specs, Performance & Parts Support

If you own or are thinking about buying a Caterpillar E120B, you're looking at one of the most straightforward mid-size excavators ever built. This machine earned its place on jobsites across North America through decades of reliable service, and many units are still turning dirt today. In this guide, we'll break down the specs, performance, maintenance priorities, and parts support that matter most for E120B owners and buyers.

Key Takeaways

• The Cat E120B excavator is a 12–13 ton class crawler excavator, popular from the late 1980s through the 1990s for its reliability and simple mechanics. The standard operating weight is 28,500 lbs, with an overall width of about 8 ft 2 in, height of about 8 ft 10 in, and length of about 25 ft 10 in.
• The maximum digging reach of the E120B is approximately 26-29 ft depending on boom and stick configuration, making it a capable machine for a wide range of jobs.

• The E120B is powered by an 84 hp Cat 3114 diesel engine, known for strong low-end torque and long service life when maintained properly.

• The E120B is valued for its simplicity and ease of maintenance compared to modern excavators, making it a solid choice for owners who want dependable, easy-to-service equipment for digging, loading, and utility work.

• Fab Heavy Parts (fabheavyparts.com) can help you find quality replacement parts and components to keep your E120B productive on every job.


Overview of the Caterpillar E120B Excavator

The Cat E120B excavator is a mid-sized hydraulic crawler excavator that Caterpillar introduced in the late 1980s. It quickly became a go-to model for construction crews, utility contractors, and small quarry operations that needed a dependable machine without the complexity of larger rigs. The Caterpillar E120B is designed for general excavation and utility work, and that purpose-built focus is exactly why so many units are still running strong.



The E120B sits comfortably between compact excavators and the big 20-ton-plus machines. That sweet spot makes it versatile. Trenching for water lines, digging basements, laying pipe, cleaning ditches, general earthmoving-the E120B excavator handles all of it without being too heavy for residential streets or too small for commercial projects.

Newer Caterpillar models come packed with electronics, emissions after-treatment systems, telematics, and digital operator interfaces. Those features have real value, but they also bring complexity and cost. Some owners still prefer the simpler E-Series machines because they are easier to fix in the field, cheaper to maintain, and don't require specialized diagnostic software for every service call. The E120B is a legacy model and is no longer in production, but that hasn't stopped guys from running these machines hard every week.

Core Specifications at a Glance

Here are the numbers that matter most when you're evaluating or planning work around a Cat E120B. Keep in mind that attachments and undercarriage setup can slightly change these figures.

• Operating Weight: approximately 28,500 lbs (about 12,800 kg)
• Overall Length: about 25 ft 10 in (standard boom, stick, and bucket installed)
• Overall Width (outside of tracks): the width to the outside of tracks is 8.17 ft; wider track shoes add a bit more
• Cab Roof Height: about 8 ft 10 in to the top of the cab
• Bucket Capacity: the E120B has a standard bucket capacity of around 0.53 to 0.69 cubic yards depending on bucket type

• Max Reach at Ground Level: approximately 26 to 29 ft, depending on boom and stick combination
• Engine Power: roughly in the 80–90 gross hp range for the 3114/3114T engine, with strong torque at low RPMs rather than peak horsepower
• Maximum Travel Speed: approximately 3.1 to 3.2 mph
• Fuel Capacity: about 66.1 gallons

Why do these details matter? If you're planning transport, you need accurate dimensions and weight for trailer selection, permits, and bridge load limits. If you're bidding a job, you need to know whether the machine can fit through a gate, clear an overhead line, or reach the bottom of a trench before you commit money to the project.

Dimensions, Working Range, and Max Reach

Accurate dimensions and working range numbers are essential for transport planning and digging capability. The standard undercarriage has a track gauge of about 6 ft 6 in, with an overall width of roughly 8.17 ft using standard plates. Wider shoes improve flotation but may affect transport permits.

The boom and stick configuration determines digging reach and depth. A standard boom (15–16 ft) paired with a 7–9 ft stick suits most residential and light commercial trenches. Max reach along the ground can reach 28.7 ft with the longest stick, while shorter sticks increase breakout force but reduce reach.

Maximum digging depth is 19.85 ft, and max loading height is 20.77 ft, enough to fill most dump trucks. Shorter sticks improve lifting capacity near the machine, useful in dense soils.

For exact transport measurements, always verify with official Cat data sheets or owner's manuals, as configurations vary and affect legal limits.

Engine and Powertrain (Caterpillar 3114 / 3114T)

The Caterpillar 3114 is a four-cylinder, direct-injection diesel engine that served as the heart of many Cat E120B excavators. This engine family earned a reputation for durability and straightforward mechanical systems that most heavy equipment shops can service without specialized training.

Here's what you should know about it:

• The engine is typically a turbocharged 3114T in many units, producing strong low-rpm torque that's well suited for digging in tough soils and lifting heavy loads. The E120B is powered by an 84 hp Cat 3114 diesel engine at its standard rating.
• Basic engine features include mechanical fuel injection, wet-sleeve cylinder liners, and straightforward service items like filters, belts, and hoses. No complex electronic fuel management to troubleshoot.
• Displacement comes in at about 4.4 litres (268 cubic inches) with a bore of 105 mm and stroke of 127 mm. That's a compact package that delivers solid torque without being overbuilt for the machine's hydraulic demands.
• While exact factory horsepower can vary by configuration and market, owners generally experience enough power for smooth multi-function operation-running boom, stick, bucket, and swing simultaneously without bogging down.
• Fab Heavy Parts can help you identify the correct engine variant, gasket kits, injectors, and other replacement parts based on your serial number and arrangement number.

Hydraulic System and Digging Performance

The hydraulic system on the E120B is where the machine's real muscle lives. It uses a load-sensing setup designed to balance speed, smoothness, and fuel use across all working functions. Compared to modern proportional-valve systems, it's simpler-but it gets the job done.

Key characteristics to understand:

• The E120B features a hydraulic pump flow of approximately 62.4 gallons per minute, with a main relief valve pressure of about 4,270 psi. That combination provides responsive boom, stick, bucket, and swing operations.
• The hydraulic system fluid capacity is 43.6 gallons. Keeping that fluid clean and at proper level directly affects cycle times, smoothness, and component life.
• Pilot-operated controls give operators proportional feel through the joysticks. The system handles simultaneous functions-boom up while swinging and curling the bucket-without dramatic speed loss.
• In practical terms, the E120B handles common trenching, footing excavation, and utility work in dense clay without stalling when the hydraulics are in good shape.

• Older hydraulic systems in the E120B may experience pressure drops and wear over time. Sluggish cycle times, jerky movements, and increased fuel consumption often point to pump wear, tired control valves, or aging hoses. Regular oil sampling and filter changes go a long way.

• Fab Heavy Parts can support components such as pumps, final drives, swing motors, cylinders, and seal kits to restore original digging performance.

Boom, Stick, and Bucket Options

Choosing the right boom, stick, and bucket setup is key to getting the best out of a Cat E120B excavator for different types of jobs. The right combination depends on whether you prioritize reach, digging force, or versatility.

• The standard boom and stick option balances digging depth with max reach. Most standard setups give you a practical digging depth of 16–19 ft, which covers residential foundations, utility trenches, and light commercial footings.
• Shorter sticks (around 6 ft 11 in to 7 ft) improve breakout force and lifting capacity near the machine. Longer sticks (up to about 9 ft 10 in) favor trench reach and slope finishing but reduce bucket force.
• Common bucket types used on the E120B include general purpose (standard teeth for earth and clay), heavy-duty rock buckets (thicker steel, side cutters), and ditching or cleanup buckets (wider, shallower profile for grading). Typical bucket widths range from 30 to 36 inches depending on the application.

• On used machines, check wear on pins, bushings, and the boom and stick weldments carefully. Worn bushings create slop that kills precision and accelerates structural fatigue. Fab Heavy Parts can help you find replacement pins, bushings, bucket teeth, and cutting edge components that fit your specific model.

Operator Cab, Controls, and Comfort

The E120B cab doesn't offer modern luxury but provides a practical, durable workspace for operators.

• It features pilot joysticks, travel pedals, and analog gauges for engine temperature, oil pressure, and fuel level, making controls intuitive and easy to learn.
• Many units include a heater, adjustable seat, and good visibility thanks to large front and side windows. Air conditioning was optional or added later.
• With fewer electronics and simpler displays, the E120B is easier and cheaper to troubleshoot than newer models.

• Common upgrades include seat replacements, new cab glass, wiper motor swaps, and LED work lights to reduce operator fatigue and extend working hours. Fab Heavy Parts can supply many cab components.

Transport, Loading, and Jobsite Fit

The E120B's weight and size make it suitable for transport on a standard lowboy or gooseneck trailer in many areas, depending on local rules. This is an advantage over heavier machines that need special permits.

• Weighing 28,500 lbs, it often avoids oversize fees. Its 8.17 ft width usually fits legal highway limits, though wide shoes or protruding buckets might exceed them.
• The cab height of about 8 ft 10 in generally clears overhead limits, but check for low bridges or power lines.
• For loading, lower the boom and stick, secure the bucket, center the machine on the trailer, and use strong chains and binders. Always inspect tie-down points before hauling.
• Plan site access ahead—check gate width, overhead obstacles, and ground firmness. Soft soil can cause sinking without mats.
• Accurate dimensions are essential for moving the E120B across regions with varying oversize rules. Always measure and confirm.


Common Applications for the Cat E120B Excavator

The E120B is a versatile machine used on construction sites, utility projects, farms, and small quarries.

• It’s commonly used for trenching water and sewer lines, digging foundations, loading trucks, ditch cleaning, and site grading.
• With attachments like hammers and compactors, it can handle demolition, sorting, and backfilling efficiently.
• Its balance of power, weight, and reach suits contractors needing one excavator for many jobs. Matching boom, stick, and bucket to the task boosts productivity.
• Instead of buying newer, complex machines, keeping your E120B well-maintained with quality parts can extend its useful life in excavation and utility work.


Maintenance, Reliability, and Ownership Costs

The long-term value of an E120B depends on preventive maintenance. Its simpler design makes upkeep manageable even for smaller shops without specialized Cat diagnostic tools.

Engine Maintenance

• Change engine oil and filters at recommended intervals to prevent wear.

Hydraulic System Care

• Regularly service hydraulic oil and filters to avoid contamination in the 43.6-gallon system.

Cooling System Checks

• Monitor coolant level and quality to protect the wet-sleeve liners.

Undercarriage Inspection

• Routinely check rollers, idlers, sprockets, and tracks since worn parts increase fuel use and reduce traction.

Common wear points include boom and stick pins, hydraulic hoses, swing bearing play, and electrical corrosion. Small issues can quickly worsen.

Using quality replacement parts reduces downtime and extends the life of a 30+ year-old E120B. Fab Heavy Parts offers dependable aftermarket and OEM-equivalent components to help control ownership costs.

Finding Parts and Support for Your E120B

The Caterpillar E120B has been out of production for years, so having a trusted parts partner is essential to keep it running without long delays. Parts support for the E120B remains relatively accessible despite its age, thanks to aftermarket suppliers and remanufactured component specialists.

• Fab Heavy Parts offers engine rebuild components, fuel system parts, undercarriage parts, hydraulic pumps and motors, final drives, swing components, seal kits, and available cab or structural pieces.
• When contacting Fab Heavy Parts, have your machine's serial number, engine arrangement number, and part numbers ready to ensure accurate matching.
• Don't wait for breakdowns—keeping key filters, seals, and wear parts in stock helps avoid costly downtime caused by parts shipping delays.
• Caterpillar provides a parts and maintenance catalog for the E120B to help identify components. If you lack access, Fab Heavy Parts' team can assist with cross-referencing your needs.


Buying a Used Cat E120B Excavator: What to Check

Many E120B units for sale today are decades old, so a thorough inspection is crucial before buying to avoid costly surprises.

1. Engine Inspection

Check the start-up cold and hot. Blue or white smoke may indicate worn rings or valve seals; black smoke under load suggests fuel issues. Listen for unusual noises from injectors or bearings.

2. Hydraulic System Check

Test all functions—boom, stick, bucket, swing. Slow or jerky movements can signal pump wear or low pressure. Verify travel motor operation forward and reverse.

3. Structural Assessment

Look for cracks near boom foot and stick hinge welds. Heavy welding may mean past damage. Check slew ring play by pushing the stick sideways when stationary.

4. Undercarriage Evaluation

Inspect track shoes, sprockets, rollers, idlers, and track tension. Undercarriage replacement is costly, so factor this into your price.

5. Hours vs. Wear

Compare hour meter reading with wear on pedals, joysticks, seat, and overall condition. A low-hour machine with heavy wear may have a rolled-back meter.

6. Budget for Immediate Service

Plan for fresh engine and hydraulic oil, coolant, filters, and any needed seals or hoses. Fab Heavy Parts can help estimate these costs so you have a clear budget before buying.

FAQ

Q1: Is the Caterpillar E120B still a good excavator to run today?

A1: Many contractors and farmers still rely on the E120B because of its mechanical simplicity, reasonable fuel use, and sturdy construction. If you prefer less electronics and easier field repairs, it's hard to beat. While it lacks modern telematics and emissions systems, a well-maintained E120B can be an excellent value machine. Parts support from suppliers like Fab Heavy Parts keeps these machines running without the long lead times you might expect for a legacy model.

Q2: What kind of jobs is a Cat E120B excavator best suited for?

A2: The E120B works well for trenching utilities, digging basements, loading trucks on small to mid-size earthmoving projects, cleaning ditches, and handling moderate demolition with the right attachments. Its size and max reach make it a strong fit for contractors who need one primary excavator that can travel between residential, commercial, and light industrial sites without requiring oversize permits in most cases.

Q3: Can I still get major components like final drives and hydraulic pumps for an E120B?

A3: Yes. Many critical components such as final drives, swing motors, and hydraulic pumps are still available either new, rebuilt, or aftermarket through specialized heavy equipment parts suppliers. Fab Heavy Parts can often source these major components for Cat E120B excavators and help match them correctly using the machine's serial number and part tags.

Q4: What should I budget for annual maintenance on a used E120B?

A4: Costs vary with hours worked and job conditions, but owners should plan for regular oil and filter changes, periodic hydraulic and coolant service, undercarriage work as components wear, and unexpected hose or seal replacements. Contact Fab Heavy Parts with your anticipated annual hours so the team can help estimate a parts budget for common service items and wear components specific to your machine.

Q5: How do I find the correct part numbers for my specific E120B?

A5: The best starting place is the machine's serial number plate and, if available, the original Caterpillar parts manual for the E120B excavator. If you don't have the manual, Fab Heavy Parts can often help identify the correct parts by serial number, photos, and basic measurements—reducing the risk of ordering the wrong components and saving you time and money on returns.
