- A fuel filter acts as your engine’s first line of defense, keeping dirt, rust, and water out of the fuel system.
- It ensures clean fuel delivery, preventing costly damage to components like injectors and fuel pumps.
- There are three main types of fuel filters: inline, cartridge, and canister — each suited for different vehicle setups.
- Contaminants like rust, dirt, and water are the main threats that filters remove to maintain smooth engine performance.
- Regular replacement (typically every 20,000–40,000 miles) is essential for optimal fuel efficiency and system longevity.

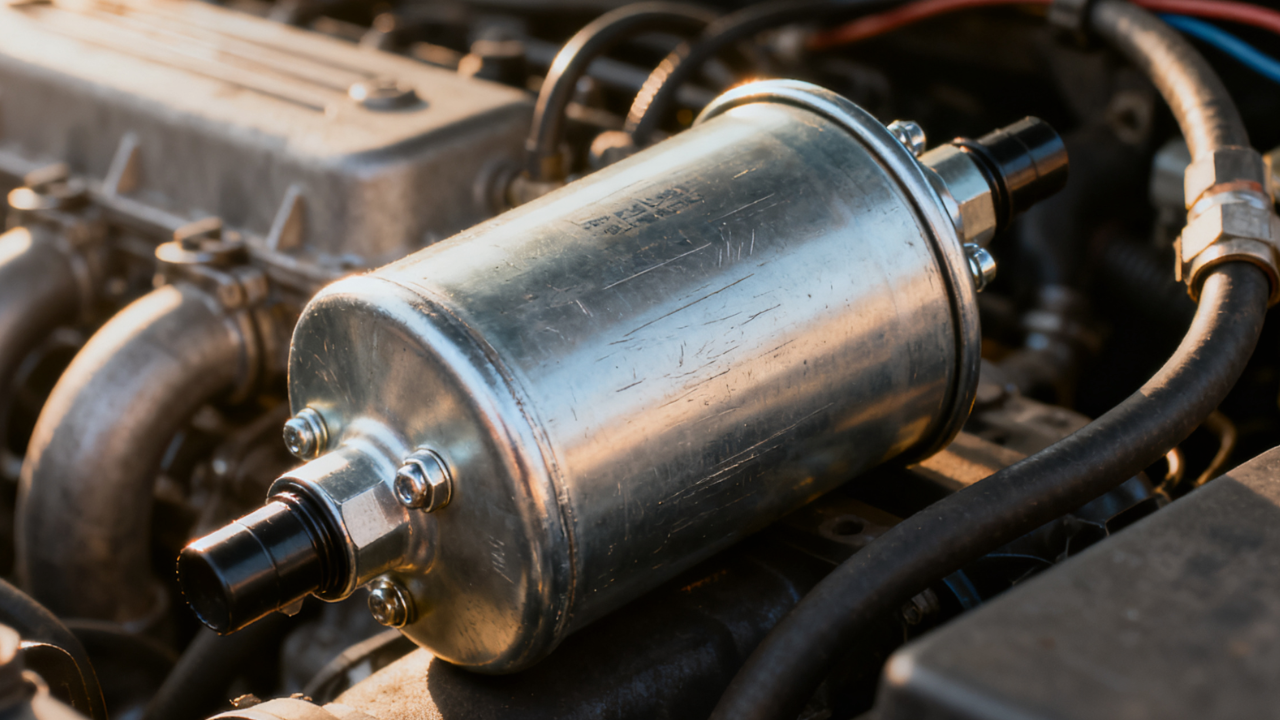

What is a Fuel Filter
Your engine depends on clean fuel to run smoothly and efficiently. A fuel filter serves as the guardian of your fuel system, protecting expensive components from harmful debris and contaminants.
Think of your fuel filter as a coffee filter for your engine. Just like a coffee filter removes grounds from your morning brew, fuel filters screen out foreign particles and liquids from gasoline or diesel fuel. Without this protection, your engine would quickly suffer damage.
These essential components sit between your fuel tank and your engine’s fuel injection system or carburetor. Inline fuel filters are typically located in the middle of the fuel line, positioned between the fuel tank and engine components to ensure contaminants are filtered out before reaching the engine.
Every drop of fuel passes through the filter before reaching critical parts like injectors and fuel pumps. The order in which fuel flows through the system—starting from the tank, passing through the filter, and then reaching the engine—is crucial for protecting sensitive engine components.
The filter’s primary job is protecting your investment. Modern fuel injectors cost hundreds of dollars to replace. A fuel pump replacement can run over $1,000 in parts and labor. Compare that to a $20-50 fuel filter, and the math becomes clear.
Different types of vehicles use different filter designs. The type and location of the fuel filter can vary depending on your vehicle's year, make, and model. Some cars have easy-to-reach inline filters, while others hide cartridge filters—also referred to as cartridges—inside the fuel tank. These cartridge-style units typically contain filter paper to trap contaminants. The complexity of replacing a fuel filter can vary depending on your vehicle’s configuration, and the requirements for replacement and the location of the filter vary by vehicle model and year.
Importance of Filtration
Filtration is the unsung hero of your vehicle’s fuel system. By installing quality fuel filters, you’re taking a crucial step to protect your engine from hidden threats. Every time you fill up, contaminants like dirt, rust, and water can sneak into your fuel. If these impurities reach your engine, they can cause engine misfires, clogs, and even permanent damage to vital components.
A clean fuel filter acts as a barrier, ensuring only pure fuel reaches your engine. This not only prevents costly repairs but also keeps your vehicle running smoothly and efficiently. Regularly installing and replacing your fuel filter helps prevent clogs and engine misfires, safeguarding your investment for the long haul. In short, a well-maintained filter is your best defense against the unseen dangers lurking in every tank of fuel.
How Fuel Filters Work
The science behind fuel filtration is surprisingly simple. As fuel flows from your tank toward the engine, it must pass through specialized filter media. This process removes contaminants while allowing clean fuel to continue its journey.
Most filters use pleated paper or synthetic materials with tiny pores. These small openings, often just a few microns across, are critical for trapping contaminants while still allowing fuel to pass. To put that in perspective, a human hair is about 75 microns wide. For example, a grain of dirt or a tiny rust particle can be trapped by the filter. Your filter catches particles much smaller than what you can see.
Fuel pressure pushes gasoline or diesel through the filter media. Proper movement of fuel through the filter is essential to prevent clogs and maintain engine performance. Clean fuel passes through easily. Dirt, rust, and other debris get trapped in the filter material. Over time, these contaminants build up and restrict fuel flow.
The filtration process works best when fuel flows in the correct direction. Filters have inlet and outlet markings to ensure proper installation. Installing a filter backward reduces its effectiveness and can damage your fuel system.
Filtering Solid Contaminants
Solid particles pose the biggest threat to your fuel system. Common contaminants include dirt, rust flakes, paint chips, and metal particles. These materials enter your fuel tank through various sources.
Rust forms naturally in steel fuel tanks over time. Paint chips can flake off older tanks. Dirt enters during fuel stops when tanks are opened. Even new fuel sometimes contains small metal particles from refinery equipment.
Cartridge-type filters excel at trapping these particles. Their pleated paper elements provide maximum surface area in a compact space. The pleats create a maze-like path that forces contaminants to contact the filter media.
Proper sealing prevents contaminated fuel from bypassing the filter. Quality filters use rubber gaskets and precise machining to ensure all fuel passes through the filtering material. Cheap filters may allow debris to slip past.
Removing Water and Liquids
Water contamination creates serious problems, especially in diesel fuel systems. Water enters fuel tanks through condensation, poor storage, or contaminated fuel supplies. Even small amounts can cause big problems.
Diesel engines are particularly vulnerable to water damage. Water promotes bacterial growth that clogs filters and corrodes components. It can also freeze in cold weather, blocking fuel lines entirely.
Bowl-type filters separate water using gravity. Since water is heavier than fuel, it settles to the bottom of the filter housing. A clear bowl lets you see water accumulation. Some advanced filters include sensors that warn when water levels get too high.
Drain valves allow you to remove collected water. These valves attach to the bottom of the filter housing. Simply open the valve and drain water until clean fuel appears. Regular draining prevents water-related problems.
Types of Fuel Filters
Three main filter designs serve different applications and vehicle types. These different types of fuel filter products are designed to meet the needs of various vehicles and applications. Understanding these differences helps you identify what your vehicle uses and plan for maintenance accordingly.
Each design offers specific advantages. Your vehicle’s fuel system determines which type you have. Modern cars often use cartridge filters for space savings. Older vehicles typically have inline filters for easy access.
The choice between filter types varies depending on several factors. Engine size, fuel type, and available space all influence the design. Heavy-duty applications often require larger capacity filters.
Inline Fuel Filters
Inline fuel filters connect directly into your fuel line using hose clamps or threaded fittings. These cylindrical filters are the most common type on older vehicles and some modern cars.
You’ll typically find inline filters under the vehicle or in the engine bay. Their external location makes them easy to inspect and replace. Most DIY mechanics can handle inline filter replacement with basic tools.
These filters work well for gasoline engines with moderate flow requirements. They’re available in different sizes to match your engine’s needs. Larger engines require bigger filters to handle increased fuel flow.
Installation is straightforward with inline filters. Cut the fuel line, install the new filter, and secure it with clamps. Always check the flow direction arrow before installation. Installing it backward restricts fuel flow.
Cartridge Fuel Filters
Cartridge fuel filters use a replaceable element inside a permanent housing. This design is more common on newer vehicles where space is limited. The housing often integrates with the fuel pump assembly.
These filters typically install inside the fuel tank or in a dedicated housing near the engine. Their compact design saves space but can make replacement more challenging. Some require special tools for removal.
The cartridge design reduces waste since only the filter element gets replaced. The housing stays in place for the vehicle’s lifetime. This approach is more environmentally friendly than disposable inline filters.
Accessing cartridge filters varies by vehicle. Some require dropping the fuel tank for access. Others have access panels under the rear seat. Check your owner’s manual for specific instructions on your model.
Canister Fuel Filters
Canister fuel filters resemble large oil filters with their spin-on design. These high-capacity units are common on diesel engines and heavy-duty applications. They handle higher flow rates than smaller filters.
Large diesel engines generate significant fuel flow demands. Canister filters provide the capacity needed without restricting performance. Their size allows for longer service intervals in commercial applications.
Many canister filters include water separation features. A clear bowl at the bottom collects water that settles out of the fuel. Some include heating elements to prevent freezing in cold climates.
Installation involves spinning the filter onto a threaded base. A rubber gasket seals the connection. Always apply a thin layer of clean oil to the gasket before installation. This prevents leaks and makes future removal easier.
High-Performance Options
For drivers who demand more from their vehicles, high-performance fuel filters offer an extra layer of protection and efficiency. These advanced filters are engineered with superior materials and cutting-edge technology to capture even the smallest contaminants and debris. Whether you drive a high-powered sports car or a workhorse truck, installing a high-performance fuel filter can help prevent engine misfires and clogs that rob your engine of power.
High-performance filters are designed to handle greater fuel flow without sacrificing filtration quality. This means your engine gets the clean fuel it requires, even under demanding conditions. By choosing these filters, you can experience smoother acceleration, improved fuel efficiency, and longer engine life. If your vehicle requires top-tier performance, upgrading your filter is a smart move to keep contaminants at bay and your engine running at its best.
Filter Efficiency
When it comes to fuel filters, efficiency is everything. A filter’s job is to remove contaminants and debris from the fuel before it reaches your engine, but it must do so without restricting the flow your engine needs. High-efficiency fuel filters are designed to trap even the tiniest particles, ensuring your fuel system stays clean and your engine performs at its peak.
Choosing a filter with high efficiency means fewer clogs, less risk of engine damage, and more consistent performance. It’s important to replace your fuel filters regularly to maintain this level of protection—an old or clogged filter can’t do its job effectively. By prioritizing filter efficiency, you’re taking a proactive step to prevent problems and keep your vehicle’s engine and fuel system in top shape.
When to Replace Your Fuel Filter
Regular filter replacement prevents expensive fuel system damage and keeps your engine running smoothly. Manufacturers provide specific replacement intervals based on extensive testing and real-world experience. These intervals can vary depending on the vehicle make, model, and your driving conditions.
Most gasoline engines need new filters every 20,000 to 40,000 miles. Diesel engines often require more frequent changes due to higher contamination risks. Some newer vehicles with improved filtration can go 60,000 to 100,000 miles between changes.
Your driving conditions affect replacement frequency. Vehicles operating in dusty environments need more frequent filter changes. Poor fuel quality also accelerates filter clogging. City driving with frequent stops can increase contamination levels.
Always refer to your owner’s manual for manufacturer recommendations. These intervals consider your specific engine design and fuel system components. Following the recommended schedule protects your warranty coverage.
When replacing your fuel filter, the existing filter must be removed before installing a new one. The difficulty of removing the filter can vary depending on your vehicle's design.
Some vehicles use lifetime filters that supposedly never need replacement. However, these claims often prove optimistic in real-world conditions. Even lifetime filters benefit from inspection and occasional replacement.
Installation Instructions
Installing a replacement fuel filter is a manageable project for most vehicle owners, provided you follow the right steps and use the proper tools. Always start by referring to your vehicle’s manual for specific instructions tailored to your model and year. Typically, the fuel filter is located between the fuel tank and the engine’s fuel injection system.
Begin by removing the fuel pump relay fuse and allowing the engine to idle until it stalls—this relieves pressure in the fuel system and makes the process safer. Place a drain pan beneath the filter to catch any remaining fuel, then carefully remove the old filter. Attach the new filter securely to the fuel line, making sure it’s installed in the correct direction as indicated by the markings. Once the new filter is in place, reinstall the fuel pump relay fuse and start the engine to check for leaks and ensure proper installation. With the right preparation and attention to detail, installing a new fuel filter can help keep your engine running clean and strong.
Disposal and Recycling
Proper disposal and recycling of old fuel filters and windows is essential for protecting both the environment and your community. After removing a used fuel filter, drain any remaining fuel and place the filter in a sealed container to prevent leaks. Many auto parts stores and service centers offer recycling programs for fuel filters, making it easy to dispose of them responsibly and reduce environmental impact.
When it comes to old windows, especially those with lead paint or other hazardous materials, always follow local regulations for disposal. Handle these materials with care to prevent contamination and protect your health. Many manufacturers and recycling centers accept old windows and fuel filters, ensuring they are processed safely and sustainably. By taking these extra steps, you help prevent pollution, reduce waste, and contribute to a cleaner environment for everyone.
FAQ
Q1: What does a fuel filter do?
A1: A fuel filter removes dirt, rust, and other contaminants from the fuel before it reaches the engine. This ensures only clean fuel enters the injectors or carburetor, helping your engine run smoothly and preventing costly damage.
Q2: How often should I replace my fuel filter?
A2: Most gasoline vehicles need a new fuel filter every 20,000–40,000 miles, while diesel engines may require more frequent changes. Always follow your vehicle manufacturer’s recommendations for best results.
Q3: What are the signs of a clogged fuel filter?
A3: Common symptoms include hard starting, engine stalling, loss of power, or rough idling. If you notice these issues, it’s time to inspect or replace your fuel filter.
Q4: What types of fuel filters are there?
A4: There are three main types:
Inline filters – easy to replace and commonly found on older vehicles.
Cartridge filters – compact and eco-friendly, common in modern cars.
Canister filters – large, durable, and ideal for diesel or heavy-duty engines.
Q5: Can I replace a fuel filter myself?
A5: Yes, inline filters are relatively easy to replace with basic tools. However, cartridge or in-tank filters may require special tools or professional service due to their complex installation.
