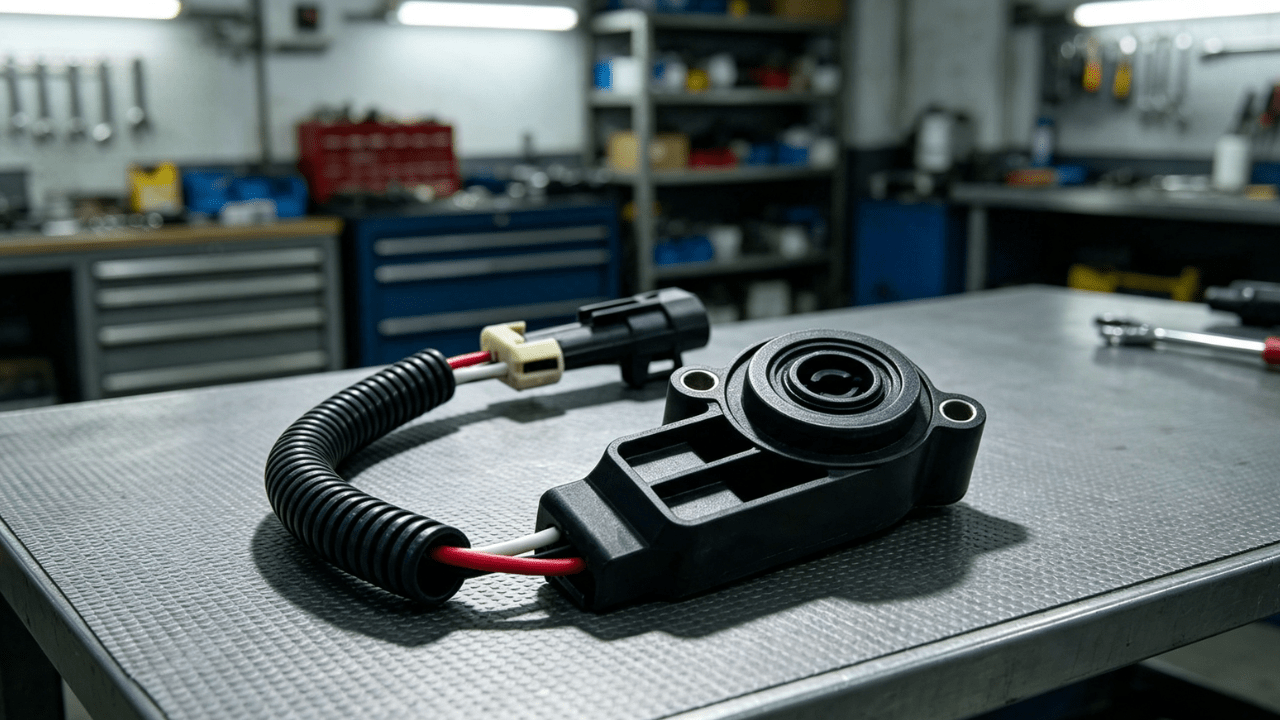

Throttle Position Sensor (TPS): What It Does, Symptoms, and How to Test It

Key Takeaways

• A throttle position sensor (TPS) monitors how far the throttle plate is open and tells the engine computer (ECU or ECM) exactly how much air the engine is getting. It does this by sending a changing voltage signal that the computer reads many times per second.
• A bad TPS can cause rough idle, poor shifting, stalling, hesitation, and bad fuel mileage. These problems hit work trucks and heavy equipment hard because downtime costs money.
• The TPS is mounted on the throttle body or integrated into the accelerator pedal assembly, making it one of the most important engine parts for fuel and air control.
• You can test a TPS at home with a basic digital multimeter by checking voltage sweep and resistance, even without a scan tool.
• Visit FabHeavyParts.com to source quality replacement throttle position sensors and related auto parts for common truck and fleet applications.

Introduction: Why the Throttle Position Sensor Matters

Modern engines rely on a network of sensors to keep everything running right. Among them, the throttle position sensor is one of the most critical. If it fails, your truck may stumble, stall, or lose power at the worst possible time.

In plain terms, throttle position is how far the driver is pressing the gas pedal, and how wide the throttle plate (sometimes called a butterfly valve) opens inside the throttle body. The TPS converts that physical movement into an electrical signal. The engine computer uses that signal to adjust fuel injection, spark timing, and transmission shift points.

Consider a 2015 Chevy Silverado hauling equipment to a job site. If the TPS sends a bad signal, the ECU cannot deliver the right fuel and air mix. The truck hesitates on a highway merge, shifts late under load, and burns more fuel than it should. A sensor problem can cost a full day's productivity. That is why this sensor matters, and why understanding it is worth your time.

What Is a Throttle Position Sensor (TPS)?

A throttle position sensor TPS is a position sensor that tracks the angle of the throttle plate and sends a changing voltage signal to the ECU. As the throttle opens wider, the signal voltage rises. As it closes, the voltage drops.

The basic construction includes a plastic or metal housing with 3 to 6 electrical terminals. A TPS may utilize a variable resistor (potentiometer with a wiper arm riding on a resistive strip) or a Hall-effect sensor design that uses a magnetic field for non-contact measurement. Older potentiometric types wear out faster because of physical contact between the wiper and the strip. Hall-effect and magnetoresistive versions avoid that mechanical wear entirely.

On older cable-driven systems, the TPS is bolted directly to the throttle body and rotates with the throttle shaft. Modern vehicles may use electronic throttle control instead of mechanical linkage, pairing a throttle body sensor with an accelerator pedal position sensor. Common voltage ranges on many GM, Ford, and Dodge trucks from the 1990s through 2010s run about 0.5 V at closed throttle to around 4.5 V at wide open throttle. The TPS is a wear item like other engine parts, subject to heat, vibration, and contamination over time.

Where the TPS Lives: Throttle Body and Pedal Sensor Locations

On gasoline engines with cable-operated throttles, the TPS sits directly on the throttle body, mounted with two small screws on the side opposite the throttle cable. On a 2004 Ford F-150 5.4L, for example, you can find it right on the throttle body near the air intake. On a 2010 GMC Sierra 1500 5.3L, the throttle position is monitored inside the electronic throttle body and by a separate accelerator pedal position sensor near the firewall.

Both are position sensors reporting to the ECU, but they measure different things. The TPS reads the actual throttle plate angle. The pedal sensor reads how far the driver is pressing the gas pedal. The ECU compares both to ensure the system is operating correctly.

On some heavy-duty diesel applications (2008 through 2016 medium-duty trucks, for instance), the TPS function is built into a larger pedal or governor assembly rather than existing as a small standalone auto part. Here is a simplified layout to help you picture where the sensor sits:

Air Intake → Throttle Body Housing

                └── Throttle Plate (butterfly valve) on throttle shaft

                └── TPS mounted on throttle shaft side, opposite motor or cable

Accelerator Pedal → Pedal Position Sensor → ECU

How a Throttle Position Sensor Works with the Engine Computer

The TPS is one piece of a larger sensor network. The ECU also reads data from the MAF (mass airflow), MAP (manifold absolute pressure), oxygen sensors, and crankshaft position sensor. All of these inputs work together to control how the engine runs.

Here is what happens when you press the gas pedal:

1. The throttle plate opens.
2. The TPS detects the change and its signal voltage rises.
3. The ECU reads this signal many times per second.
4. Based on the throttle position, the computer adjusts fuel injection pulse width, ignition timing, and idle speed.



The TPS sends voltage signals to the engine computer to control fuel injection. It communicates with the ECU for making immediate adjustments to engine performance, including automatic transmission shift points. Throttle position data impacts automatic transmission shifting because the ECU uses throttle angle to decide when to upshift or downshift under load.

When TPS data conflicts with readings from other sensors, the ECU can trigger a check engine light, enter limp mode, or limit power to protect the drivetrain. A loaded pickup going from idle to wide open throttle on a highway on-ramp depends on a clean, accurate TPS signal for responsive acceleration.

Common Symptoms of a Bad Throttle Position Sensor

TPS failure is common on high-mileage vehicles from the late 1990s through mid-2010s. Symptoms tend to appear gradually rather than all at once. Here is what drivers typically notice:

• A failing TPS can cause engine hesitation during acceleration, especially from a stop or during passing.
• Random surging at steady cruising speed, where RPMs rise and fall without pedal input.
• Unstable or rough idle that varies by 100 to 200 RPM.
• Incorrect throttle data can lead to rough idling or stalling, particularly when coming to a stop at a light.
• A faulty TPS can result in decreased fuel economy due to incorrect air-fuel mixtures.
• Delayed or harsh shifting in automatic transmissions as the ECU misreads throttle angle.
• Intermittent "Reduced Engine Power" warnings on late-model GM trucks such as the 2005 through 2015 Chevy Tahoe and Cadillac Escalade.
• A malfunctioning TPS can trigger a check engine light.

Owners of a 2007 Chevy Tahoe or a 2003 Dodge Ram 1500 often report a flat spot in throttle response between 1,500 and 2,000 RPM when the TPS starts to wear. These symptoms overlap with problems caused by MAF sensors, fuel injectors, and vacuum leaks. Testing is important before you replace parts.

Diagnosing TPS Problems: Codes and Basic Checks

Modern vehicles record diagnostic trouble codes when the TPS or accelerator pedal position sensor acts up. A basic OBD-II scanner can pull these codes on vehicles from 1996 through today.

Common codes and what they mean:

Code	Meaning
P0120	TPS "A" circuit malfunction; signal missing or wiring open/shorted
P0121	TPS "A" range/performance problem; signal erratic or out of expected range
P0122	TPS "A" circuit low input; voltage stuck near ground
P0123	TPS "A" circuit high input; voltage stuck near reference
P2135	Throttle/pedal sensor voltage correlation; dual circuits disagree

Before grabbing a multimeter, do a visual check. Inspect the throttle body area and pedal connector for loose plugs, broken locking clips, damaged wiring, and corrosion. On trucks in rust belt regions, road salt corrodes TPS wiring harnesses and connectors, leading to intermittent signal loss that mimics a bad sensor.

Step-by-Step: How to Test a Throttle Position Sensor with a Multimeter

Safety first. Work with the engine off to ensure safety during testing for resistance checks. Set the parking brake and chock the wheels, especially on heavier vehicles. Only turn the key on (engine off) when you need to read live voltage.

Here is the procedure for a typical 3-wire TPS on a truck engine from the 2000s, such as a 2005 Chevy Silverado 2500HD 6.0L:

1. Locate the TPS connector on the throttle body. Identify the ground, 5 V reference, and signal wires using a wiring diagram or service manual for your specific model.
2. Use back-probing techniques to avoid damaging wires. Insert fine probe pins or thin paperclips into the back of the connector so it stays connected. Do not puncture insulation.
3. Turn the key to the ON position (engine off). Test TPS voltage with a multimeter for accurate readings. Measure the reference wire; it should read close to 5V.
4. Measure the signal wire at closed throttle. Expect about 0.5 V. A reading near zero or above 2 V at idle indicates a fault.
5. Slowly open the throttle by hand (or have someone press the pedal). Watch the signal voltage rise smoothly from about 0.5 V to near 4.5 V. There should be no jumps, dropouts, or dead spots.
6. Check resistance variation to diagnose TPS issues on older non-drive-by-wire sensors. Disconnect the connector, then measure resistance between signal and ground while turning the throttle shaft by hand. Resistance should change smoothly and proportionally.
7. Any sudden dropouts, spikes, or dead zones in voltage or resistance usually mean the TPS is worn and needs to be replaced.

Replacing a Throttle Position Sensor: Practical Tips

Many TPS replacements take under 30 minutes with basic hand tools. Some newer vehicles require throttle body relearn procedures with a scan tool after the swap.

General steps:

1. Disconnect the battery (negative terminal first).
2. Unplug the TPS connector. Be careful with the locking tab.
3. Remove the mounting screws from the throttle body.
4. Install the new TPS and align it with the throttle shaft.
5. Reconnect the connector and battery.

Be careful not to overtighten small mounting screws. Cracking a plastic housing on an older GM or Ford throttle body from the late 1990s or early 2000s means buying the whole assembly. On later trucks (2015 through 2022 models), electronic throttle bodies and pedal assemblies often come as complete units. You replace and calibrate the whole module rather than swapping only the sensor.

While you have access, clean the throttle body bore and plate. Carbon buildup can cause the throttle plate to stick near idle, which mimics TPS problems by holding the resting voltage in the wrong place. After the install, clear codes and test drive the vehicle. Pay attention to idle quality, shift points, and throttle response to confirm the fix.

Choosing the Right Replacement TPS and Related Engine Parts

Correct fit is critical. Throttle position sensors vary by year, engine, and sometimes by production date within the same model. Always match OEM part numbers or trusted cross-reference numbers when ordering.



Throttle position sensors are compatible with various vehicle models across brands. Compatible vehicles include Chevrolet, GMC, Cadillac, and Pontiac, among others. The HiSport TPS fits multiple Chevrolet models from 2003 to 2015. The A-Premium TPS is compatible with Toyota models from 1989 to 1995.

Cheap, unbranded sensors often have poor signal stability, loose connectors, and short lifespans under heavy-use conditions. For work trucks and fleet vehicles, investing in a quality part avoids repeat failures.

FabHeavyParts.com carries dependable throttle position sensors, throttle bodies, accelerator pedal position sensors, and related auto parts for work trucks, vocational fleets, and heavy-use pickups. Before you add a sensor to your cart, gather your VIN, engine size, and build year. This information lets you quickly confirm compatibility on the product page or through customer support. You can purchase with confidence when you know the part is selected for your exact application.

Preventing Future TPS Issues: Maintenance and Best Practices

The TPS itself cannot be serviced internally, but the conditions around it can be maintained to extend sensor life.

• Inspect throttle body and sensor connectors during routine maintenance such as oil changes or air filter replacements.
• Clean the throttle body every 30,000 to 50,000 miles on gasoline engines using appropriate throttle body cleaner.
• Protect wiring looms from heat and abrasion. On high-mileage fleet trucks, keeping harnesses secured and away from exhaust components prevents signal problems that get blamed on the TPS.
• Apply dielectric grease to connectors to block moisture, especially in humid or salt-heavy environments.
• Address early symptoms (slight hesitation, intermittent check engine lights) before they become problems that take trucks out of service for a full day.

FAQ

Q1: Can I drive with a bad throttle position sensor?

A1: The car may still run, but it can lose power, shift poorly, or enter limp mode. For towing, hauling, or highway driving, that is a real security risk. Continued driving with a failing TPS puts extra stress on the transmission and catalytic converter because the ECU is working with incorrect fueling data. The longer you drive, the more related damage can add up.

Q2: Does a new TPS need to be programmed or relearned?

A2: On older cable-driven systems, you usually just need to clear codes and test drive. No programming required. On newer drive-by-wire systems, an idle relearn or throttle relearn procedure is often necessary. Some vehicles enable a manual relearn through a key-on pedal sequence. Others need a scan tool at a shop or dealer to complete the calibration.

Q3: What is the difference between a TPS and an accelerator pedal position sensor?

A3: The TPS monitors the actual throttle body position. The accelerator pedal position sensor monitors how far the driver is pressing the pedal. On many late-model trucks, the ECU compares both signals to detect faults and ensure safe drive-by-wire operation. If the two readings do not correlate, the system can set code P2135 and limit engine power.

Q4: How long does a throttle position sensor usually last?

A4: A general range is 100,000 to 200,000 miles, depending on heat, vibration, and driving conditions. Early 2000s trucks with potentiometric sensors often start showing TPS issues around 120,000 to 150,000 miles. Harsh environments such as heavy towing, dusty worksites, and frequent stop-and-go driving shorten sensor life.

Q5: Can cleaning the throttle body fix TPS-related problems?

A5: Cleaning can fix a sticking throttle plate and poor idle, which sometimes feel like a bad TPS to the driver. However, cleaning does not repair internal wear or electrical faults inside the sensor. If cleaning the throttle body and checking wiring does not resolve the issue, test the TPS signal with a multimeter. If the voltage sweep shows dead spots or dropouts, the sensor needs to be replaced.
