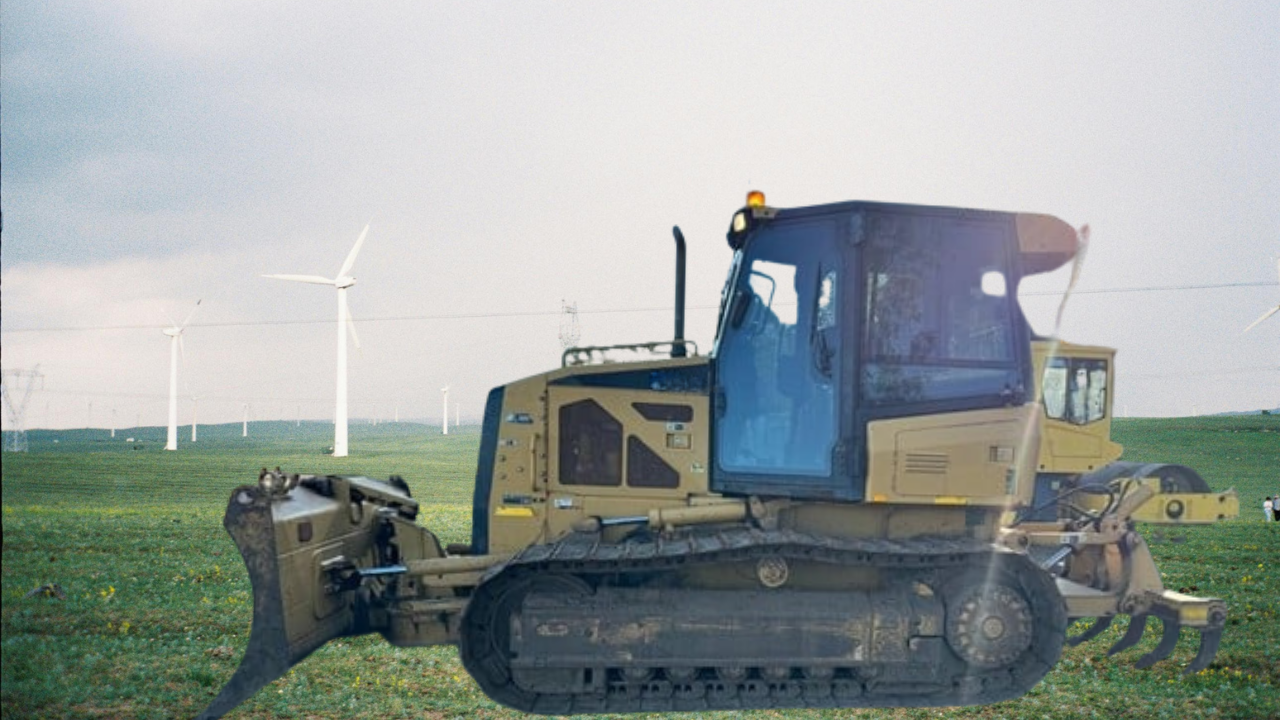

Caterpillar D5K Crawler Tractor
Dimensions
Undercarriage
Ground Contact Area - Lgp 4726in2
Ground Contact Area - Lgp With 770 Mm (30 In) Shoes 5514in2
Ground Contact Area - Xl 3652in2
Ground Pressure - Lgp 4.52 psi
Ground Pressure - Lgp With 770 Mm (30 In) Shoes 3.93 psi
Ground Pressure - Xl 5.67 psi
Length - Track On Ground - Lgp 91in
Length - Track On Ground - Xl 91in
Shoe Width - Lgp 26in
Shoe Width - Lgp Option 2 30in
Shoe Width - Xl 20in
Track Gauge - Lgp 69in
Track Gauge - Lgp, 770 Mm (30 In) 73.2in
Track Gauge - Xl 63in
Specifications
Ripper
Ripper Type Parallelogram
Number Of Shanks 3
Maximum Digging Depth 13.3in
Maximum Reach - Ground Line 21.9in
Maximum Ground Clearance Under Tip 17.6in
Overall Width 67.3in
Height 6.5in
Weight 1222lb
Engine
Displacement 269cu in
Bore 4.2in
Stroke 5in
Engine Model CAT C4.4 ACERT
Eec 80/1269 96hp
Sae J1349 96hp
Iso 9249 96hp
Power - Gross 100hp
Power - Net 96hp
Caterpillar 96hp
Transmission
Drive Pumps 2
Track Motors 2
Relief Valve Settings 6911 psi
Maximum Travel Speed - Forward 5.6mph
Maximum Travel Speed - Reverse 6.2mph
Weights
Operating Weight - Lgp 21347lb
Operating Weight - Xl 20741lb
Blade
Blade Width - Xl 109.5in
Blade Width - Intermediate 115in
Blade Width - Lgp 126.7in
Blade Height - Xl 42.2in
Blade Height - Intermediate 39.8in
Blade Height - Lgp 39.8in
Blade Capacity - Xl 2.9yd3
Blade Capacity - Intermediate 2.8yd3
Blade Capacity - Lgp 3.1yd3
Digging Depth - Xl 23.1in
Digging Depth - Intermediate 22.5in
Digging Depth - Lgp 22.5in
Service Refill Capacities
Cooling System 6gal
Fuel Tank 51.5gal
Final Drive - Each - Lgp 2.6gal
Final Drive - Each - Xl 2.6gal
Crankcase - With Filter 3gal
Transmission - Hydraulic Tank 15.7gal
Standards
Rops SAE J397-OCT95, SAE J1040-MAY94, ISO 3471-94, ISO 3164-95
Fops SAE J231-JAN81, ISO 3449-92
Hydraulic Controls
Pump Output 19.4 gal/min
Relief Valve Setting 2988 psi
Winch
Winch Drive Hydrostatic
Control Hydraulic
Overall Width 29.2in
Drum Diameter 10in
Drum Width 10.8in
Rope Diameter - Recommended 0.7in
Weight 1345lb
Rope Diameter - Optional 0.8in
Speed Variable
Winch Length 27.8in
Throat Clearance 6.8in
Drum Capacity - Recommended Cable 371ft in
Drum Capacity - Optional Cable 256ft in
Maximum Line Pull - Bare Drum 40000lb
Maximum Line Pull - Full Drum 25000lb
Maximum Line Speed - Bare Drum 131 ft/min
Maximum Line Speed - Full Drum 207 ft/min
