Key Takeaways
Your exhaust manifold gasket might seem like a small component, but it plays a critical role in keeping your engine running efficiently and safely. This heat-resistant seal prevents hot exhaust gases from escaping at one of the most demanding points in your entire exhaust system. Understanding how it works, why it fails, and what to do about it can save you from expensive repairs down the road.
- The exhaust manifold gasket seals the joint between the engine’s cylinder head and the exhaust manifold, keeping hot gases inside the exhaust system where they belong.
- Common failure signs include ticking or hissing noises on cold start, a burning smell under the hood, visible exhaust leaks around the manifold, and noticeably worse fuel economy.
- Driving for a long time with a failed gasket can overheat nearby parts, damage exhaust valves, and allow dangerous exhaust fumes to enter the cabin.
- Most DIYers with moderate experience and the right tools can replace this gasket, but rusted bolts and tight spaces make professional service a smart choice for many drivers.

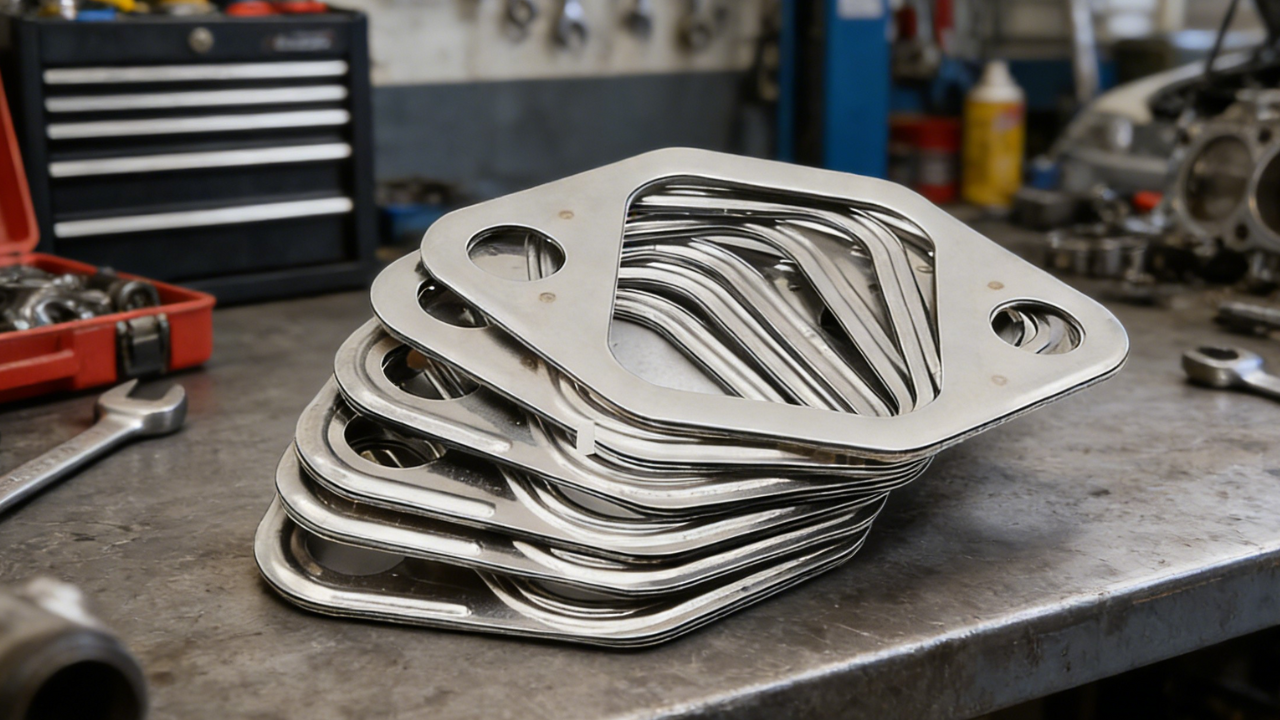

What Is an Exhaust Manifold Gasket?
Think of your engine as a system that needs to breathe in fresh air and exhale burned gases. The exhaust manifold is the component that collects those burned gases from each cylinder and channels them toward the rest of the exhaust system. The gasket sits right between the manifold and the cylinder head, forming a critical seal at this junction.
The job of this gasket is straightforward but demanding. It must create a gas-tight barrier so exhaust flows from the engine to the catalytic converter and muffler without leaking into the engine bay. When this seal fails, you get noise, fumes, and potentially serious engine problems.
Modern exhaust manifold gaskets are engineered from materials that can handle extreme conditions. Common options include embossed multi-layer steel (often called MLS), graphite-coated steel, and high-temperature composite materials. These gaskets must withstand temperatures that can exceed 1,200 to 1,400 degrees Fahrenheit during normal operation.
It’s worth noting that your vehicle likely has another gasket where the manifold connects to the front pipe or catalytic converter. This is often called a “donut” or flange gasket and serves a different purpose. This article focuses mainly on the manifold-to-head gasket, which operates under the most severe conditions.
How the Exhaust Manifold Gasket Works in Your Engine
Picture the exhaust manifold gasket as a heat-proof seal that keeps exhaust gases confined to their proper path. Without it, those gases would escape into the engine compartment instead of flowing through your exhaust system where they can be processed and expelled safely.
Here’s the path exhaust gases travel through your engine:
1. Burned gases leave the combustion chamber after the power stroke
2. They pass through the exhaust ports in the cylinder heads
3. The gases flow into the exhaust manifold
4. From there, they travel down toward the catalytic converter
The challenge this gasket faces comes from thermal expansion. Metal parts expand when they heat up and contract as they cool. Every time you start your vehicle, the manifold and cylinder head move slightly against each other as temperatures rise from ambient to operating levels. When you shut off the engine, everything contracts again.
This constant movement happens thousands of times over the years you own a vehicle. The exhaust manifold gasket is designed to flex with this motion while maintaining its seal. A quality gasket handles these hot-cold cycles reliably for many years without losing its ability to block escaping gases.
A good seal does more than just prevent noise. It also:
- Protects oxygen sensor readings from false air contamination
- Keeps exhaust noise down to acceptable levels
- Shields nearby wires, hoses, and plastic covers from direct blasts of hot gas
- Maintains proper backpressure for engine efficiency
What Causes an Exhaust Manifold Gasket to Go Bad?
Most exhaust manifold gaskets don’t fail from typical wear the way brake pads or tires do. Instead, they break down from a combination of heat stress, vibration, and accumulated time in service. Understanding these causes helps you recognize when your gasket might be approaching the end of its useful life.
Repeated heat cycles stand as the primary culprit. Every daily cold start followed by a warm-up to full operating temperature stresses the gasket material. Over time, this can cause the exhaust manifold itself to warp slightly, creating uneven pressure across the gasket surface.
Corrosion and road salt accelerate problems significantly, especially for vehicles driven in winter climates across North America and Europe. Salt spray works its way onto manifold bolts and studs, weakening them over time and allowing small gaps that let exhaust gas erode the gasket edges.
Loose or broken hardware is particularly common on older trucks and SUVs with over 150,000 miles. When bolts or studs lose their clamping force, the gasket can no longer maintain a proper seal. Exhaust gas finds these weak spots and gradually burns away the gasket material.
Other contributing factors include:
- Engine misfires or poor tuning that create extra exhaust heat
- Running too lean or with retarded ignition timing
-
Oil leaks from valve covers or cam seals that soak the gasket area
- Previous repairs done without proper torque sequence
- Reusing damaged manifolds that pinch or crush new gaskets
Consider a typical 10 to 15 year old commuter car that has seen hundreds of thousands of heat cycles. Even with no other problems, that gasket has endured tremendous stress. Add in some rust, a few hard winters, and maybe a neglected engine issue or two, and gasket failure becomes increasingly likely.
Bad Exhaust Manifold Gasket Symptoms
Detecting a failing exhaust manifold gasket early can save money and prevent further damage. Symptoms often appear during cold starts when metal parts are contracted, making leaks more noticeable.
Hissing, Ticking, or Tapping Noise on Cold Start
A ticking or hissing noise from the engine bay shortly after starting is a common sign of a gasket leak. The noise usually fades as the engine warms and metal expands.
Burning Smell, Smoke, or Heat Damage
A hot, metallic, or burnt plastic smell under the hood often indicates an exhaust leak. You may see smoke or discoloration on nearby wires or plastic parts, signaling heat damage.
Poor Fuel Economy and Check Engine Light
Exhaust leaks can cause oxygen sensors to detect extra air, leading the engine to add fuel unnecessarily. This reduces fuel economy and may trigger a check engine light.
Loud Exhaust Noise and Cabin Fumes
A growing exhaust leak can produce loud noises and allow fumes into the cabin, posing serious health risks due to carbon monoxide exposure.
Visible Cracks, Soot, or Damaged Hardware
Look for black soot around the manifold flanges and inspect for broken or corroded bolts and studs. These signs confirm gasket failure and the need for repair.
What Happens When an Exhaust Manifold Gasket Fails?
A failed gasket creates problems that go well beyond annoying noise. Left unaddressed, the leak can affect engine health, safety, and long-term reliability in ways that become increasingly expensive to fix.
Hot exhaust gas escaping at the cylinder head can overheat localized areas. This excessive heat can weaken the manifold itself, damage surrounding bolts, and in extreme cases affect the cylinder head. The hotter things get, the faster the deterioration progresses.
Long-term leaks pose additional risks:
|
Problem |
Consequence |
|
Eroded sealing surfaces |
More difficult future repairs, possible manifold replacement |
|
Exhaust valve overheating |
Edge cracking or burning in severe cases |
|
Wiring and hose damage |
Melted insulation, electrical faults |
|
Elevated under-hood temperatures |
Increased fire risk if oil leaks are present |
|
Oxygen sensor contamination |
False readings, poor fuel economy |
Emissions test failures become likely if the leak affects oxygen sensor readings or prevents the catalytic converter from reaching proper operating conditions. Many states and countries require passing emissions tests for vehicle registration.
The safety implications deserve special emphasis. Leaks under the hood raise under-bonnet temperatures and increase the risk of nearby oil or debris catching fire. When combined with existing oil leaks, this creates a genuinely dangerous situation.
When Should You Replace an Exhaust Manifold Gasket?
Exhaust manifold gaskets are designed to last many years and tens of thousands of miles under normal conditions. However, they are not truly lifetime parts. Environmental factors, driving conditions, and engine health all affect how long a gasket will last.
Any confirmed leak at the manifold-to-head joint is reason enough to replace the gasket. Waiting for the problem to worsen only allows more damage to accumulate and makes the eventual repair more difficult.
General replacement guidelines:
- Vehicles over 10 to 15 years old face higher gasket failure risk
- Mileage beyond 150,000 miles increases likelihood of problems
- Towing or heavy-duty use accelerates gasket wear
- Harsh climates with extreme temperature swings stress gaskets more
During major top-end repairs like cylinder head removal, timing chain work, or manifold replacement, always install a new gasket. Reusing an old, compressed gasket invites early failure and wastes the labor you’re already investing.
If you’ve had exhaust repairs done before and the noise returns, the problem may indicate improper torque during the previous repair, a warped manifold that needs attention, or the wrong type of gasket for your application.
How to Replace an Exhaust Manifold Gasket
While procedures vary by vehicle, the basic steps for replacing an exhaust manifold gasket are similar across most gasoline engines. This moderate-difficulty job suits DIYers with experience and the right tools, but professional help is advisable if access is tight or hardware is rusted.
Safety tips:
- Work on a cool engine
- Disconnect the negative battery cable
- Support the vehicle securely if working underneath
- Wear safety glasses and gloves
Tools Needed
- Socket set and ratchet
- Torque wrench
- Penetrating oil
- Wire brush and plastic scraper
- Brake cleaner
- Safety gear and shop rags
Spray bolts with penetrating oil hours before starting to ease removal. Take photos to aid reassembly.
Removing the Old Gasket
Remove engine covers, heat shields, and disconnect sensors, EGR tubes, and brackets. Loosen bolts from outside in to prevent warping. Rusty bolts may break and require extraction. Carefully remove the manifold and old gasket, avoiding debris in exhaust ports.
Cleaning and Inspection
Clean surfaces with scrapers, wire brushes, and solvents. Check for warping with a straightedge and inspect bolts and the manifold for damage or cracks. Replace any faulty hardware.
Installing the New Gasket
Align the new gasket correctly, hand-tighten bolts, then torque them in stages following manufacturer specs. Reinstall removed components in reverse order.
After reassembly, start the engine and check for leaks or unusual smells. Some recommend re-torquing bolts after initial heat cycles.
DIY or Professional? Making the Right Choice
Many home mechanics can replace exhaust manifold gaskets themselves, but some jobs are better left to professionals.
Good DIY candidates:
- Transverse 4-cylinder engines with accessible manifolds
- Vehicles with minimal rust and corrosion
- Cars in dry climates with clean hardware
- Experienced owners with proper tools
Better for professionals:
- Severely rusted or broken hardware
- Tight engine bays with limited access
- Turbocharged engines with complex manifolds
- Previous bolt breakage during inspection
- Lack of necessary tools
Professionals can accurately diagnose leaks and provide precise labor estimates. Assess your tools, time, and comfort level honestly—there’s no shame in seeking expert help for difficult jobs.
Preventing Future Exhaust Manifold Gasket Problems
While some gasket failures are unavoidable with age, good maintenance habits can slow the process and help you catch issues early before they become serious.
Regular inspection habits:
- Check for new noises, smells, and soot marks every oil change
- Look at manifold hardware for signs of loosening or corrosion
- Address any exhaust-related symptoms promptly
- Note changes in engine sound or performance
Engine problems that increase exhaust heat also stress the gasket. Fix misfires, rough running, and warning lights quickly. Running lean or with ignition timing issues creates unnecessary thermal stress on exhaust components.
Keep oil leaks under control. Valve cover gaskets and cam seals that drip onto hot exhaust components create hot spots that can damage nearby gaskets and wiring. Repair these leaks as soon as practical.
Climate-specific tips:
|
Climate |
Recommendation |
|
Heavy road salt regions |
Rinse underside and engine bay during winter (carefully avoid electronics) |
|
Extreme temperature swings |
Allow slightly longer warm-up before hard acceleration |
|
Humid coastal areas |
Inspect for corrosion more frequently |
Any time the exhaust manifold comes off for other repairs, install a fresh gasket. The small cost of a new gasket is nothing compared to doing the job twice because you tried to reuse an old one.
FAQ
Q1: How long can I safely drive with a minor exhaust manifold gasket leak?
A1: Short-term driving to a repair shop is generally acceptable, but don’t treat a “minor” leak as something you can ignore for weeks or months. Even small leaks expose you to exhaust fumes and can worsen rapidly. If you smell exhaust in the cabin or experience headaches while driving, stop immediately and have the vehicle towed. Carbon monoxide poisoning is a real danger that develops faster than most people expect.
Q2: Can exhaust leak sealants or repair pastes fix a manifold gasket leak?
A2: These products are temporary solutions at best and unreliable at the extreme temperatures present near the cylinder head. Exhaust manifold gaskets operate at temperatures that can exceed 1,200 degrees Fahrenheit. Most repair pastes and sealants simply cannot withstand this heat for any significant length of time. They might quiet a noise briefly, but the underlying problem will return.
Q3: How can I tell the difference between a cracked manifold and a bad gasket?
A3: Visual inspection is your first step. Look for visible cracks in the manifold casting, especially around the flange area and between runners where stress concentrates. Black soot at the gasket line suggests gasket failure, while soot appearing elsewhere on the manifold may indicate a crack. A mechanic can perform a smoke test, introducing smoke into the exhaust and watching where it escapes. In many cases, removing the manifold is the only way to know for certain.
Q4: Can a bad exhaust manifold gasket damage my catalytic converter?
A4: Yes, it can. When an exhaust leak allows extra air into the system before the oxygen sensor, the engine computer often enriches the fuel mixture to compensate. This excess fuel can reach the catalytic converter and damage the catalyst over time. Additionally, if the leak is severe enough to cause misfires or allow raw fuel into the exhaust, catalyst damage accelerates significantly. Protecting your catalytic converter is one more reason to address gasket leaks promptly.
Q5: Are all exhaust leaks dangerous?
A5: Any exhaust leak that allows fumes into the passenger cabin should be treated as a serious safety issue. Leaks near the firewall or in locations where gases can enter the HVAC air intake are particularly concerning. Even leaks that don’t immediately threaten occupant health can create fire hazards if hot exhaust contacts flammable materials or oil residue. While a small leak in an exposed location might seem harmless, it’s always best to repair exhaust problems rather than wait for them to become dangerous.
