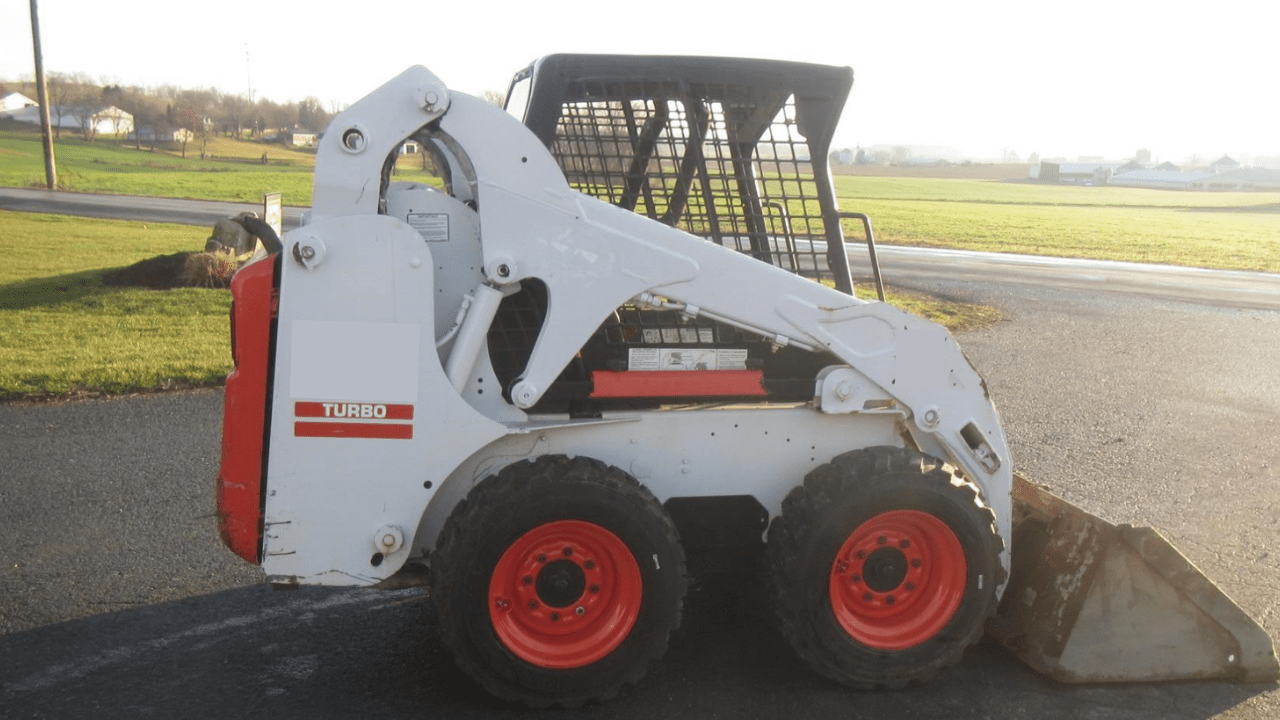

Bobcat S205 Skid Steer Operating Specifications
Horsepower 66.0 HP
Lifting Capacity (35% Tipping) 1500 lbs
Lifting Capacity (50% Tipping) 2050 lbs
Operating Weight 6842 lbs
Tipping Load 4100 lbs
Lift Breakout Force 3800 lbs
Tilt Breakout Force 7825 lbs
Max. Travel Speed 10.7 mph
Optional High Speed 11.2 mph
Bucket Capacity (standard bucket attachment) 0.6 yd³
These specs help buyers find a machine that will meet jobsite needs and offer solid loading and digging capability.
Cycle Time and Max Lift
Raise Lift Arms 3.5 sec.
Lower Lift Arms 2.3 sec.
Bucket Rollback 1.9 sec.
Bucket Dump 2.5 sec.
Hydraulic System
Pump Flow 16.3 GPM
Relief Pressure 3350 psi
Optional Flow 25.5 GPM
Hydraulic Capacity 8.5 gal
This hydraulic flow can provide more productivity when a Bobcat skid steer runs more than one attachment type.
Engine Specs
Manufacturer Kubota
Model V2607-DI-TE3B-BC-1 (DI T)
Type Diesel
Cylinders 4
Emissions Interim Tire 4
Rated Speed 2700 RPM
Torque Power 1425 RPM
Combustion Direct injection
Compression Ratio 23.2 :1
Firing Order 1-3-4-2
Gross Power 66.0 HP
Net Power 61.0 HP
Displacement 148.5 cu in.
Bore 3.4 in.
Stroke 4.0 in.
Peak Torque 161 ft-lb
Coolant Capacity 2.7 gal
Engine Oil Capacity 2.4 gal
Fuel Tank Capacity 24.0 gal
This diesel engine is equipped for reliable power delivery.
Skid Steer Loader Dimensions
Height to top of cab 76.3 in. (6.36 ft)
Bucket Hinge Pin 118.2 in.
Width over tires 60.0 in. (5.5 ft)
Length 130.3 in. (10.86 ft)
Dump Height 91.0 in.
Dump Reach 29.6 in.
Ground Clearance 7.5 in
Dump Angle 42°
Rollback Angle 25°
Departure Angle 23°
These measurements help confirm whether the S205 skid steer loader will fit a restricted jobsite.
For maneuverability, turning radius is commonly measured from the center.
Tire Size
Front 10-16.5
Rear 10-16.5
Matching front and rear tire sizes help support stable skid steer operation.
