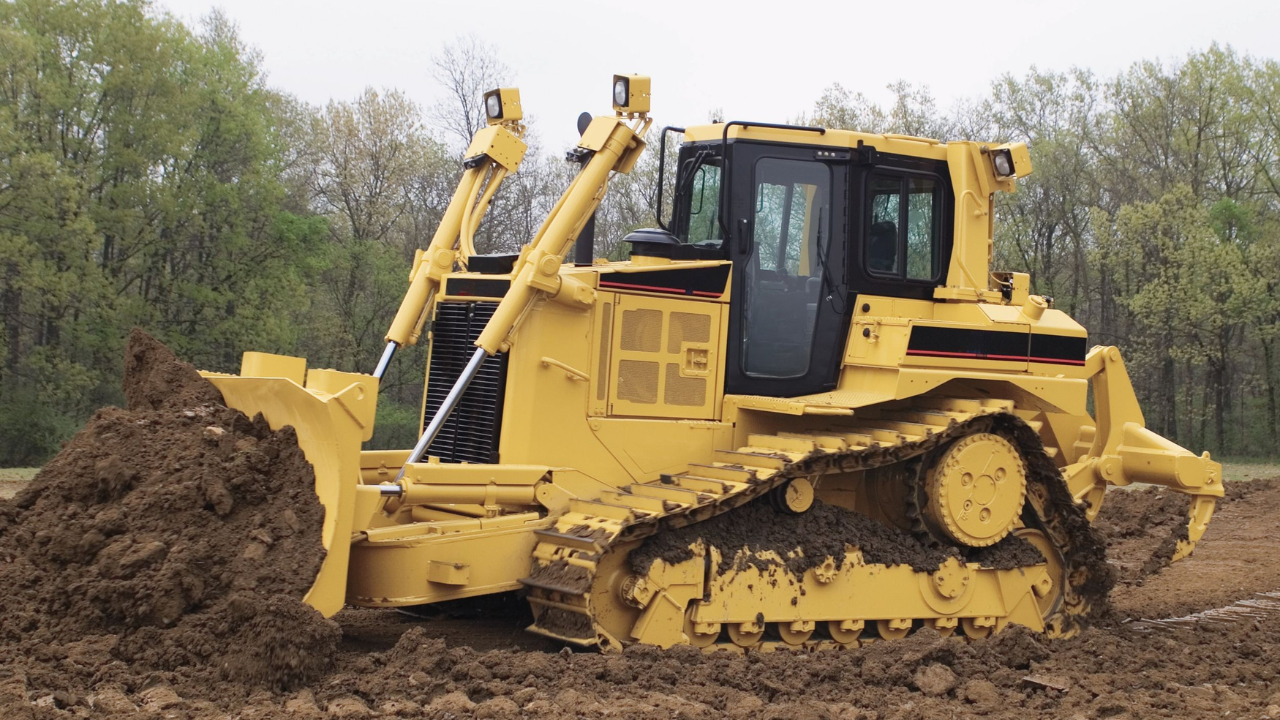

Caterpillar D6R Series 3 Crawler Tractor
Dimensions
Blades
Xw Su - Blade Width 11.67ft in
A-Blade Width 13.67ft in
Blade Type A
Lgp S-Blade Capacity 4.91yd3
Lgp S-Blade Width 13.33ft in
Lgp Vpat - Blade Capacity 5.65yd3
Lgp Vpat - Blade Width 13.65ft in
S-Blade Capacity 5.09yd3
S-Blade Width 11.02ft in
Su - Blade Capacity 7.34yd3
Su - Blade Width 10.7ft in
Xl Vpat - Blade Capacity 6.19yd3
Xl Vpat - Blade Width 12.73ft in
Xw A - Blade Capacity 5.62yd3
Xw A - Blade Width 13.78ft in
Xw Su - Blade Capacity 7.35yd3
A-Blade Capacity 5.14yd3
Dimensions
Ground Clearance 1.25ft in
Track Gauge 6.17ft in
Width - Without Blade 103.94in
Drawbar Height (Center Of Clevis) From Ground Face Of Shoes 22.68in
Overall Length - Basic Tractor - With Drawbar 12.66ft in
Height - Rops/Canopy 10.48ft in
Length - Track On Ground 104.88in
Height 10.31ft in
Width - With Blade 132in
Undercarriage
Track Gauge 6.67ft in
Ground Clearance 1.25ft in
Track Gauge - Lgp 90in
Track On Ground - Lgp 128.94in
Track On Ground 113.03in
Pitch 7.99in
Width - Shoe 29.92in
Width - Shoe - Lgp 36.03in
Shoes/Side 41
Shoes/Side - Lgp 45
Ground Contact Area 6758.01 in
Ground Contact Area - Lgp 9284.52in2
Ground Pressure 6.72psi
Ground Pressure - Lgp 5.15 psi
Grouser Height 2.56in
Specifications
Ripper
Beam Cross Section 216 x 254 mm 8.5 x 10 in
Number Of Pockets 3
Ripper Type Fixed Parallelogram
Overall Beam Width 87in
Weight - Each Additional Shank 163lb
Maximum Penetration 19.7in
Maximum Clearance Raised - Under Tip, Pinned In Bottom Hole 20.1in
Pry-Out Force 20137lb
Weight - With One Shank 3606lb
Maximum Penetration Force 14557lb
Engine
Gross Power 213hp
Displacement 537cu in
Bore 4.4in
Stroke 5.9in
Net Power - Iso 9249 185hp
Net Power - Sae J1349 183hp
Engine Model Cat C9 ACERT
Flywheel Power 185hp
Net Power - Din 70020 192 PS
Net Power - Caterpillar 185hp
Net Power - Eu 80/1269 185hp
Operational
Operating Weight 41159lb
Transmission
1.0 Forward 2.3mph
2.0 Forward 4.1mph
3.0 Forward 7.1mph
1.0 Reverse 3mph
2.0 Reverse 5.2mph
3.0 Reverse 9.1mph
Drawbar Pull - 2.0 Forward 42000lb
Drawbar Pull - 3.0 Forward 23000lb
Drawbar Pull - 1.0 Forward 77000lb
Weights
Shipping Weight 32426lb
Operating Weight - Xl A 44645lb
Shipping Weight - Xl A 36824lb
Operating Weight - Xl Su 44270lb
Shipping Weight - Xl Su 36824lb
Operating Weight - Xw A 46553lb
Shipping Weight - Xw A 38281lb
Operating Weight - Xw Su 45573lb
Shipping Weight - Xw Su 38281lb
Operating Weight - Lgp S 47874lb
Shipping Weight - Lgp S 41551lb
Shipping Weight - Std A 32426lb
Shipping Weight - Std Su 32426lb
Operating Weight - Std Su 40400lb
Operating Weight - Std A 41148lb
Service Refill Capacities
Cooling System 18.5gal
Fuel Tank 112gal
Final Drive - Each 3.6gal
Hydraulic Tank 13.6gal
Engine Crankcase 7.4gal
Power Train 38.5gal
Pivot Shaft Compartment 1.3gal
Roller Frames - Each 6.5gal
Standards
Brakes Brakes meet criterion SAE J/ISO 10265 MAR99
Cab Meets appropriate standards as listed below.
Rops/Fops: ROPS meets criteria SAE J395, SAE 1040 MAY 94, ISO 3471-1994/FOPS meets ISO 3449-1992 Level II
Hydraulic Controls - Main Relief Valve
Pressure Setting 6092 psi
Hydraulic Controls - Maximum Operating Pressure
Bulldozer 2799 psi
Tilt Cylinder 2799 psi
Ripper - Pitch 2799 psi
Ripper - Lift 2799 psi
Steering 5802 psi
Bulldozer - Tilt 2799 psi
Hydraulic Controls - Pump
Lift Cylinder Flow 50.2 gal/min
Ripper Cylinder Flow 42.3 gal/min
Tilt Cylinder Flow 21.1 gal/min
Pump Capacity 1001 psi
Rpm At Rated Engine Speed 2125rpm
Pump Output 57.3 gal/min
Winch
Flange Diameter 19.8in
Oil Capacity 17.8gal
Winch Model PA 56
Winch And Bracket Length 47.6in
Drum Capacity - 22 Mm (0.88 In) 290ft in
Drum Diameter 10in
Drum Width 13in
Winch Case - Width 38.4in
Weight* 2600lb
Increased Tractor Length - Std 20.4in
Increased Tractor Length - Lgp 15.6in
Drum Capacity - 29 Mm (1.13 In) 220ft in
Ferrule Size (O.D. Length) 54 x 67 mm 2.10 x 2.63 in
Increased Tractor Length - Xl/Xw 20.4in
Drum Capacity - 25 Mm (1.0 In) 220ft in
Winch Case - Length 47.6in
Engine - Xl/Xw/Lgp
Gross Power 228hp
Net Power - Caterpillar 200hp
Net Power - Iso 9249 200hp
Net Power - Eu 80/1269 200hp
Net Power - Sae J1349 198hp
Bore 4.4in
Stroke 5.9in
Displacement 537cu in
Net Power - Din 70020 207 PS
Engine Model Cat C9 ACERT
