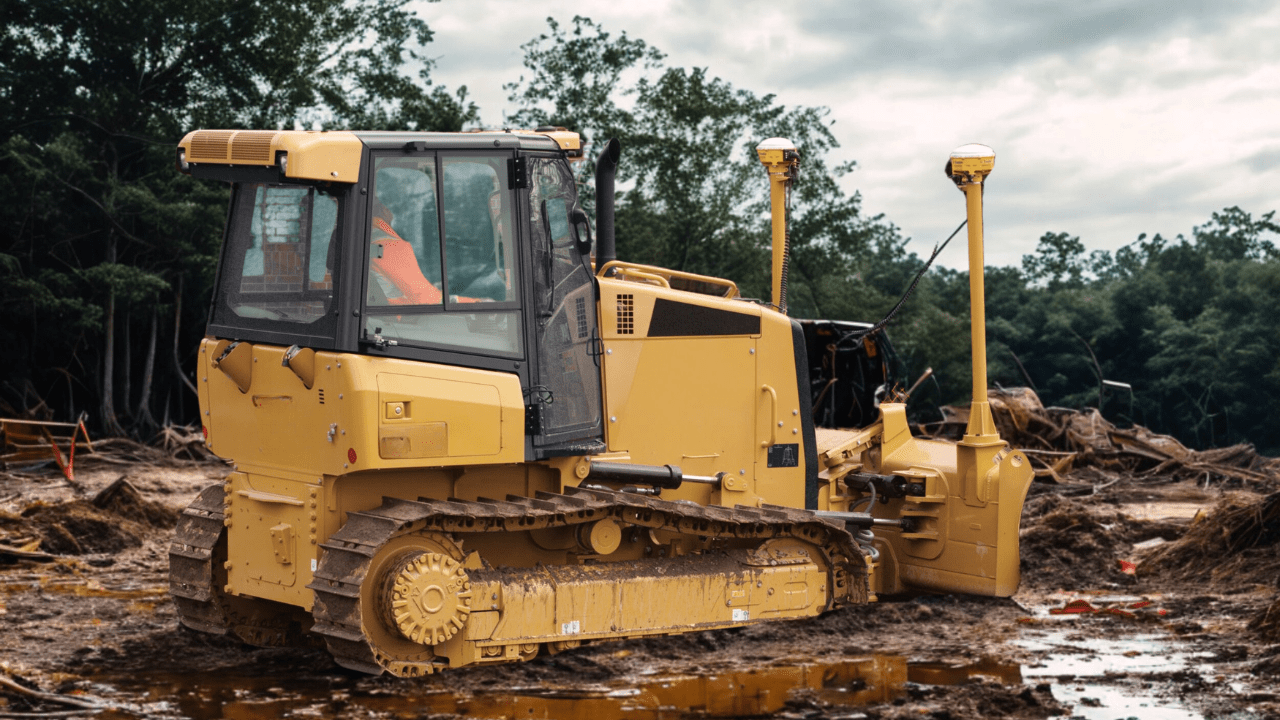

Caterpillar D4K2
Dimensions
Undercarriage
Ground Contact Area - Lgp 4425in2
Ground Contact Area - Xl 3206in2
Ground Pressure - Lgp 4.24 psi
Ground Pressure - Xl 5.6 psi
Length - Track On Ground - Lgp 89in
Length - Track On Ground - Xl 89in
Shoe Width - Lgp 25in
Shoe Width - Xl 18in
Track Gauge - Lgp 68in
Track Gauge - Xl 61in
Specifications
Ripper
Ripper Type Parallelogram
Number Of Shanks 3
Maximum Digging Depth 13.3in
Maximum Reach - Ground Line 23.5in
Maximum Ground Clearance Under Tip 17.6in
Overall Width 67.3in
Height 6.5in
Weight 1222lb
Engine Model C4.4 ACERT
Gross Power 92hp
Net Power 92hp
Power Measured @ 2200rpm
Displacement 269cu in
Bore 4.2in
Stroke 5in
Engine Model Cat C4.4 ACERT
Eec 80/1269 92hp
Sae J1349 92hp
Iso 9249 92hp
Power - Net 92hp
Transmission
Drive Pumps 2
Track Motors 2
Relief Valve Settings 6918 psi
Maximum Travel Speed - Forward 5.6mph
Maximum Travel Speed - Reverse 6.2mph
Weights
Operating Weight - Lgp 18761lb
Operating Weight - Xl 18080lb
Blade
Blade Width - Xl 109.5in
Blade Width - Intermediate 115in
Blade Width - Lgp 124in
Blade Height - Xl 39.8in
Blade Height - Intermediate 33.9in
Blade Height - Lgp 35.8in
Blade Capacity - Xl 2.6yd3
Blade Capacity - Intermediate 2yd3
Blade Capacity - Lgp 2.5yd3
Digging Depth - Xl 22.5in
Digging Depth - Intermediate 23.2in
Digging Depth - Lgp 23.2in
Service Refill Capacities
Cooling System 6gal
Fuel Tank 51.5gal
Final Drive - Each - Lgp 2.6gal
Final Drive - Each - Xl 2.6gal
Crankcase - With Filter 3gal
Transmission - Hydraulic Tank 15.7gal
Standards
Rops
SAE J397-OCT95, SAE J1040-MAY94, ISO 3471-94, ISO 3164-95
Fops
SAE J231-JAN81, ISO 3449-92
Hydraulic Controls
Pump Output 19.4 gal/min
Relief Valve Setting 2988 psi
Winch
Winch Drive Hydrostatic
Control Hydraulic
Overall Width 29.2in
Drum Diameter 10in
Drum Width 10.8in
Rope Diameter - Recommended 0.7in
Weight 1345lb
Rope Diameter - Optional 0.8in
Speed Variable
Winch Length 27.8in
Throat Clearance 6.8in
Drum Capacity - Recommended Cable 371ft in
Drum Capacity - Optional Cable 256ft in
Maximum Line Pull - Bare Drum 40000lb
Maximum Line Pull - Full Drum 25000lb
Maximum Line Speed - Bare Drum 131 ft/min
Maximum Line Speed - Full Drum 207 ft/min
