Key Takeaways
- The Caterpillar 314 excavator is a compact-radius 14-ton class machine built for tight jobsites, delivering net power in the 90–97 hp range and an operating weight around 30,000–33,000 lb depending on configuration.
- The 314 series includes multiple generations such as C, D, E, F, each offering slightly different specs and emissions compliance.
- The Caterpillar 314ECR weighs 32,600 lbs with a standard operating length of 24 ft 5 in and a width of 8 ft 10 in, though Caterpillar 314ECR specifications vary by machine configuration.
- Adding a hydraulic quick coupler dramatically increases versatility, letting operators switch buckets and attachments in minutes.
- Fab Heavy Parts helps owners find quality replacement items, from undercarriage components to hydraulic seal kits, so your unit stays productive.

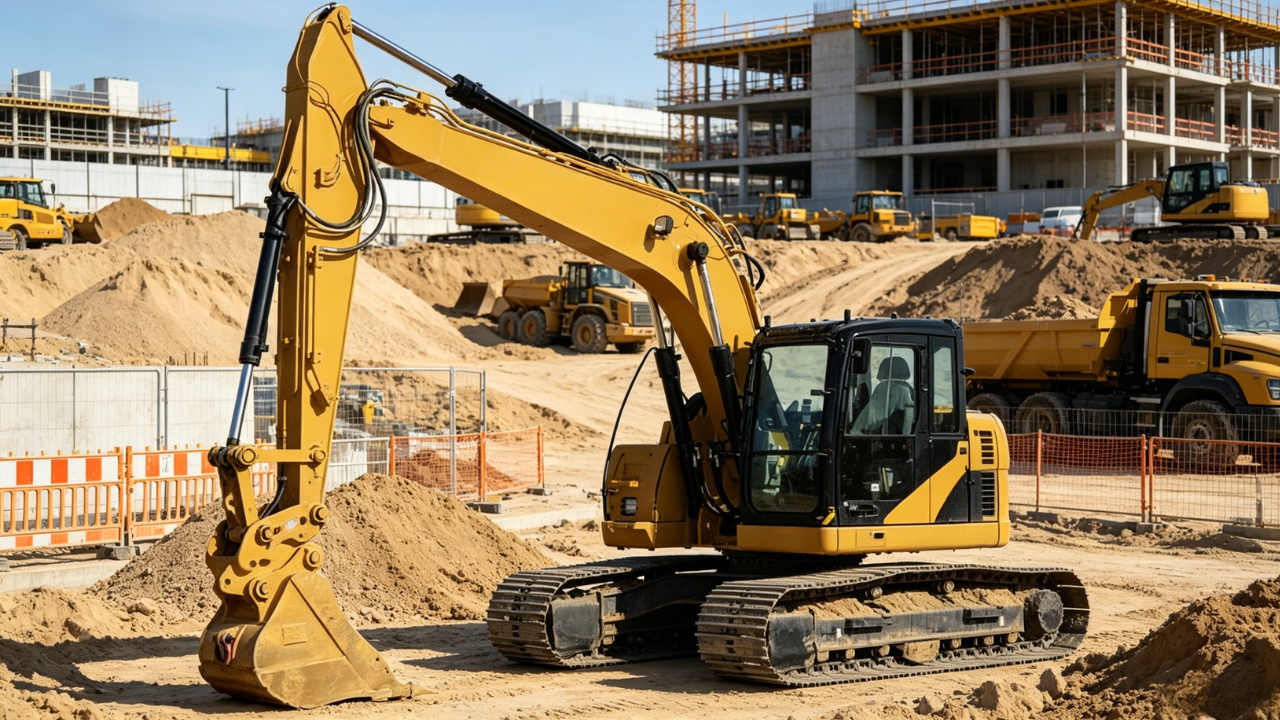

Introduction: Why Contractors Choose the Caterpillar 314
The Cat 314 is engineered for projects requiring high-efficiency earthmoving in confined spaces. It sits in a sweet spot between compact minis and full-size 20-ton machines, giving contractors enough power and reach to handle real work without the transport headaches of a bigger unit.
This article focuses on the tracked 314 family-314D, 314E CR, and 314F variants. The Caterpillar M314 wheel excavator shares the name but is a different machine; the M314 offers high swing torque for efficiency, low fuel and DEF consumption rates, long life filters for increased uptime, and emits lower CO₂ than the previous M314F model. We won't cover the wheeled version in depth here.
The 314 balances net power, fuel economy, and maneuverability in a package that's easy to operate and cost-effective to move. Below you'll find specs, common applications, ownership tips, and parts guidance to help you get the most from your machine and your money.
Caterpillar 314 Model Overview
"Caterpillar 314" refers to a family of compact-radius crawler excavators produced from the mid-2000s through the 2020s. The 314 series includes multiple generations such as C, D, E, F. The 314D appeared around 2007–2011, the 314E CR around 2012–2017, and the 314F L/CR from roughly 2017–2020 depending on the market.
The "CR" and "LCR" designations matter. Compact Radius design prevents the rear of the machine from extending far past the tracks, which is critical when you operate near traffic, buildings, or other obstacles. The LCR adds a longer undercarriage for extra stability without much additional width.
While performance profiles stay similar across the family, later models meet stricter emissions standards. Caterpillar engines in the 314E and 314F meet stringent emission standards like U.S. EPA Tier 4 Final, cutting NOx and particulate output compared to older Tier 3 units.
4 Key Specifications and Net Power of the Caterpillar 314
Exact numbers depend on the specific model and options installed. Always confirm from the serial number plate or operator's manual before you purchase or spec a job. That said, the table below gives you a practical comparison of two popular variants.
|
Spec |
314E CR |
314F L/CR |
|
Net Power |
~89 hp / 66 kW |
~95–100 hp (varies by region) |
|
Operating Weight |
32,600 lbs (≈14,800 kg) |
~32,000–34,200 lb depending on config |
|
Max Digging Depth |
~19 ft |
~19–19.5 ft depending on stick |
|
Max Reach (Ground Level) |
~27.4 ft |
Up to ~28.4 ft for certain models |
|
Transport Length |
24 ft 5 in |
~24 ft 8 in |
|
Transport Width |
8 ft 10 in |
~8 ft 2 in to 8 ft 10 in |
|
Transport Height |
9 ft 11 in |
~9 ft 1 in to 9 ft 11 in |
|
The maximum digging depth varies from approximately 19 ft to 19.5 ft depending on the model and stick length. The maximum reach at ground level is around 28.4 ft for certain models with long-stick configurations. |
|
|
So what does "net power" actually mean? It's the usable engine output after all accessories-oil pump, alternator, cooling fan-are running. It represents the power you actually feel in the cab when you're digging or swinging. The 314E CR sits around 89 hp, and later F-series units can push slightly higher.
The 314's compact width and height matter for transport permits and bridge clearances. At 8 ft 10 in wide and 9 ft 11 in tall, the Caterpillar 314ECR fits on most standard heavy-haul trailers without oversize permits in many U.S. states.
Performance, Fuel Efficiency, and Emissions
The hydraulic system provides an optimal balance of power and precision, giving operators smooth, predictable control for trenching, grading, and lifting. Open-center, two-pump systems improve overall fuel economy by matching flow to demand rather than running at full pressure all the time.
High swing torque in modern excavators allows for faster operation and quicker cycle times. The machines are also equipped with advanced technology features like rearview cameras, improving situational awareness in crowded jobsites.
Fuel efficiency improves noticeably across generations. Older 314D models can burn roughly 4-15 liters per hour depending on load, while newer 314E and 314F units use advanced fuel injection and auto-idle modes to cut that burn rate. Keeping filters clean, running in appropriate power modes, and avoiding unnecessary high-idle time are practical ways to lower fuel use on any 314.
6 Attachments, Quick Coupler Options, and Jobsite Versatility
Attachments are what turn a Caterpillar 314 into a true multi-tool.
Common attachments include:
- Digging and trenching buckets
- Grading buckets
- Hydraulic thumbs
- Plate compactors
- Hydraulic hammers
- Tilt buckets
Installing a hydraulic quick coupler is one of the smartest upgrades you can make. It lets the operator switch tools in about five minutes without leaving the cab-no manual pin removal, no helper needed on the ground, and better safety overall.
Here's a real-world example: a utility contractor starts the morning digging a trench with a general-purpose bucket, swaps to a narrow trenching bucket for pipe bedding, uses a compactor to pack backfill, then finishes with a clean-up bucket to dress the street. One machine, one operator, multiple tasks. That kind of versatility saves time, fuel, and money compared to hauling several different units to the same job.
Common Applications for the Caterpillar 314
The 314 slots between mini excavators and larger 20-ton class machines, making it ideal for mixed workloads. Typical projects include city and subdivision utilities, sewer and water line installation, road and bridge work, residential excavation, and small demolition jobs.
The compact radius design shines in narrow lanes, along active traffic, and on tight residential lots. You can explore tight spaces without worrying about the counterweight swinging into a fence or parked car.
The 314 is also a popular pick for rental fleets. It fits on common trailers, and intermediate-skill operators can handle it confidently. Owners who maintain their machines and match them with the right attachments often find strong resale value when it's time to move on.
Ownership, Maintenance, and Operating Cost Tips
Total cost of ownership on a Caterpillar 314 depends heavily on how well you maintain it and how you operate it day to day. Undercarriage alone can account for 15–20% of total machine value if you let it go.
Routine service points are accessible from ground level to reduce downtime on daily checks. Here's what to keep on your radar: walk around the machine every morning and inspect tracks, rollers, and idlers. Check engine oil, hydraulic fluid, and coolant levels. Clean mud and debris from the undercarriage-especially after working in wet or rocky conditions. Inspect bucket teeth, cutting edges, and hydraulic hoses for wear or leaks. On Tier 4 models, monitor DEF levels and ensure regeneration cycles complete.
Follow Cat service intervals for engine oil, fuel filters, hydraulic filters, and DEF system components to avoid costly derate events. Many owners track operating hours and fuel use to plan maintenance, budget for repairs, and decide when to rebuild or replace key components.
How Fab Heavy Parts Supports Caterpillar 314 Owners
Fab Heavy Parts specializes in helping heavy equipment owners keep machines like the Caterpillar 314 working with minimal downtime. Whether you need undercarriage components, hydraulic pumps and cylinders, engine and fuel system parts, cooling components, or wear items like bucket teeth and cutting edges, we carry quality replacements at competitive pricing versus dealer list.
A common issue on high-hour 314s is worn boom cylinder seals. Left unchecked, a leaking cylinder bleeds performance, wastes fuel, and slows your crew. Sourcing a quality seal kit quickly can keep your job on schedule and avoid a cascade of more expensive damage.
Browse our catalog at Fab Heavy Parts or contact us with your serial number when you need parts, a new quick coupler, or advice on keeping your excavator productive. We'll help you view details, confirm fitment, and get the right items shipped fast.
FAQ
Q1: Is a Caterpillar 314 big enough to replace a larger excavator on my jobs?
A1: The 314 can handle many tasks normally done by 20-ton machines on smaller jobsites, but it won't match a 320-class unit in lifting capacity or mass-dig production. Compare required lift charts, trench depth, and bucket size to your typical work before downsizing. Many contractors successfully use the 314 as their main machine for residential, municipal, and light commercial work where ease of access matters more than raw size.
Q2: What should I look for when buying a used Caterpillar 314?
A2: Check service records, hours, and any history of heavy demolition or hammer work-those accelerate wear on pins, bushings, and hydraulics. Inspect the undercarriage carefully, look for oil leaks around swing bearings and final drives, and test all hydraulic functions under load. Note that Caterpillar 314D excavators are listed for sale in various years, and Caterpillar 314ELCR excavators are available for auction, so options exist across generations.
Q3: How hard is it to transport a Caterpillar 314 between jobsites?
A3: Most 314 models fit on a standard heavy equipment trailer without oversize permits in many regions, thanks to a moderate width and height. Always confirm local regulations on weight limits and securement rules before moving any excavator. Measure your specific machine with attachments mounted to be sure transport dimensions stay within legal limits.
Q4: Can I add a hydraulic quick coupler to an older Caterpillar 314?
A4: Many older 314 units can be retrofitted with a hydraulic quick coupler kit as long as auxiliary hydraulics and control circuits are set up correctly. Verify compatibility with your boom, stick, and linkage, and factor in the added weight when reviewing lift capacity. Fab Heavy Parts can help match couplers and attachment interfaces for specific 314 models.
Q5: How do I know which parts fit my specific 314 variant?
A5: Always use the full serial number or machine identification number (PIN) when ordering parts. Caterpillar often updated components within a model line, so two excavators both labeled "314E CR" can have different configuration codes affecting undercarriage, hydraulics, or engine components. Contact Fab Heavy Parts with your serial number and a description of your machine-it's the fastest way to confirm accurate part matching and avoid ordering the wrong items.
Replacement Parts for Caterpillar 314 at Fab Heavy Parts
1.
Water Pump 296-4655 for Caterpillar CAT Engine C4.2 C6 C6.4 Excavator 311D 312D 314D 320D 323D
Replacement Part Number: 296-4655, 2964655, CA2964655
Fit For Caterpillar Engine: C4.2, C6, C6.4
Applications: The Water Pump fits for Caterpillar Excavator: 311D LRR, 312D, 312D L, 314D CR, 314D LCR, 315D L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D, 323D L, 323D LN, 323D S, 323D SA, 323D LN
2.
Hydraulic Radiator 196-8039 1968039 Fits for Caterpillar CAT Excavator 312C 312C L 314C
Part Number: CA1968039, 196-8039, 1968039
Packing size: 950 710 200mm
Application: The Hydraulic Radiator fits for Caterpillar CAT Excavator:312C, 312C L, 314C
Fitment Details: 312C & 312C L Excavators CBA00001-01200 (MACHINE), 314C CR & 314C LCR Excavators KJA00001-UP (MACHINE) POWERED BY 3064 Engine, 312C & 312C L Excavators CBA01201-UP (MACHINE) POWERED BY 3064 Engine, 312C & 312C L Excavators BWH00001-UP (MACHINE) POWERED BY 3064 Engine, 314C CR Excavator SNY00001-UP (MACHINE) POWERED BY 3064 Engine
3.
Condition: new, aftermarket
Part Number: CA2128470,212-8470,2128470
Engine: Fits for Caterpillar CAT 3066, 3064
Applications: The Fuel Injector fits for Caterpillar CAT Excavator:311C, 312C, 312C L, 314C, 318C, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN
Fitment details: 323D LN & 323D S Excavators CYD00001-UP (MACHINE) POWERED BY 3066 Engine, 323D L Excavator PBM00001-UP (MACHINE) POWERED BY 3066 Engine, 323D & 323D L Excavator SDC00001-UP (MACHINE) POWERED BY 3066 Engine, 321C LCR Hydraulic Excavator MCF00001-UP (MACHINE) POWERED BY 3066 Engine, 321C LCR Excavator KCR00001-UP (MACHINE) POWERED BY 3066 Engine...
4.
Throttle Motor 227-7372 2277372 Fits for Caterpillar CAT 312C 312D 320C 314C Excavator
Part Number: 227-7372, 2277372
Condition: new, aftermarket
Warranty: 6 months
Application: The Throttle Motor fits for Caterpillar 312C 312D 320C 314C
2 Cables, 7 pins
OEM grade position sensor
5.
Condition: new, aftermarket
Replace Part Number: CA229-9137, 229-9137, 2299137
Fit for Engine: Fits for Caterpillar: 3126B, 3064, 3066, C7, C6.4; Mitsubishi: 4M40
Applications: The Blower Motor fits for Caterpillar Excavator: 314C, 321C, 321D LCR, 325C, 328D LCR, 308C
See Details: 325C LCR Mobile Hydraulic Power Unit BKW00001-UP (MACHINE) POWERED BY 3126B Engine, 308C CR Excavator KCX00001-UP (MACHINE) POWERED BY 4M40 Engine, 314C CR & 314C LCR Excavators KJA00001-UP (MACHINE) POWERED BY 3064 Engine, 321C LCR Hydraulic Excavator MCF00001-UP (MACHINE) POWERED BY 3066 Engine, 321C LCR Excavator KCR00001-UP (MACHINE) POWERED BY 3066 Engine, 314C CR Excavator SNY00001-UP (MACHINE) POWERED BY 3064 Engine, 328D LCR Excavator GTN00001-UP (MACHINE) POWERED BY C7 Engine...
6.
Part Number: CA3109547, 310-9547, 3109547, CA2396659, 239-6659, 2396659
Specification: Diameter (mm):230, Height (mm):620, Inlet Diameter (mm):63.5, Outlet Diameter (mm):70, Clamp:59.564.5
Fit For Caterpillar CAT Engine: C4.2
Applications: The Muffler Silencer fits for Caterpillar CAT Excavator: 311D LRR, 312D, 312D L, 314D CR, 314D LCR, E312D
