Operating Specifications

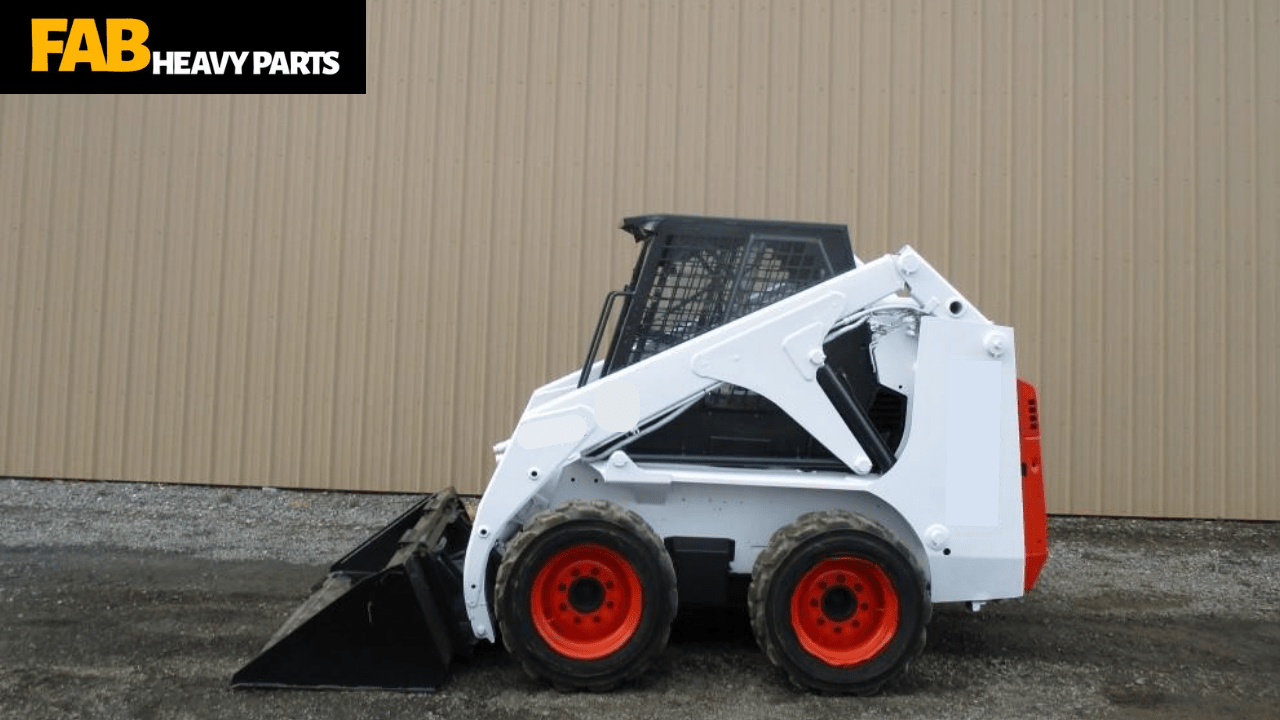

For quick 7753 specifications, this diesel-powered skid steer loader was built from 1993 to 1994, and the loader remains a popular reference for basic operating data.
Horsepower 46.0 HP
Lifting Capacity (35% Tipping) 1250 lbs
Lifting Capacity (50% Tipping) 1700 lbs (rated operating capacity: 771 kg)
Operating Weight 5476 lbs
Tipping Load 3800 lbs
Lift Breakout Force -
Tilt Breakout Force -
Max. Travel Speed 7.3 mph
This model is known for reliability and ease of service.
Cycle Time
Raise Lift Arms 3.6 sec.
Lower Lift Arms 2.5 sec.
Bucket Rollback 1.8 sec.
Bucket Dump 2.3 sec.
Hydraulic System
Pump Flow 15.0 GPM
Relief Pressure 3000 psi
Optional Flow N/A
Hydraulic Capacity 8.5 gal
The Bobcat 7753 uses a universal skid steer quick hitch for attachments.
Engine Specs
Manufacturer / Model / Type The Bobcat 7753 is equipped with a 46 hp Kubota V2203-B diesel engine.
Cylinders 4
Rated Speed 2800 RPM
Torque Power 2600 RPM
Combustion Spherical (E-TVCS)
Compression Ratio 23.1:1
Firing Order 1-3-4-2
Gross Power 46.0 HP
Displacement 134.1 cu in.
Bore 3.4 in.
Stroke 3.6 in.
Peak Torque 102.5 ft-lb
Coolant Capacity 3.4 gal
Engine Oil Capacity 1.9 gal
Fuel Tank Capacity 23.0 gal
Dimensions and Hinge Pin Height
The 7753 skid steer loader uses a vertical lift path.
Height 76.3 in. (6 ft 3 in)
Bucket Hinge Pin 115.0 in.
Width 68.1 in. (6 ft 0 in)
Length 130.1 in. (11 ft 0 in)
Dump Height 87.5 in.
Dump Reach 28.9 in.
Ground Clearance 7.5 in
Dump Angle 43°
Rollback Angle 25°
Departure Angle 26°
Overall width is 68.1 inches and can vary with attachments.
Bucket capacity is 0.48 cubic meters.
These dimensions are provided for comparison and based on engineering calculations rather than actual measurements, so they may vary based on individual equipment, design, manufacturing, normal variations, operating conditions, and other factors, and are subject to change without notice.
Tire Size
Front 10-16.5
Rear 10-16.5
