This guide provides a comprehensive overview of the Isuzu 4HF1 engine, covering its technical specifications, common applications, maintenance requirements, and tips for purchasing or replacing this popular commercial diesel engine. The Isuzu 4HF1 is a core powerplant for many Isuzu trucks and commercial vehicles, making this resource valuable for fleet managers, mechanics, and truck owners. Whether maintaining a fleet, considering an engine swap, or evaluating replacement options, this guide answers key questions and helps you make informed decisions.
Key Takeaways
- The Isuzu 4HF1 engine is a 4.3L (4,302 cc) mechanical-injection diesel primarily used in Isuzu Elf, NPR, NKR, and NQR trucks from the mid-1990s onward.
- Core technical data: inline-4, OHV valvetrain, compression ratio around 18.5–19.0:1, typical power output of 120–145 hp, and torque of 320–380 Nm depending on market and tune.
- The 4HF1 is known for exceptional durability and simple maintenance, often running 400,000–500,000 km before a major overhaul when serviced correctly.
- Both naturally aspirated and turbocharged versions exist, affecting power levels and parts compatibility.
- Fab Heavy Parts supplies 4HF1 engines and overhaul components, and this guide helps readers understand specifications, maintenance needs, and replacement options.

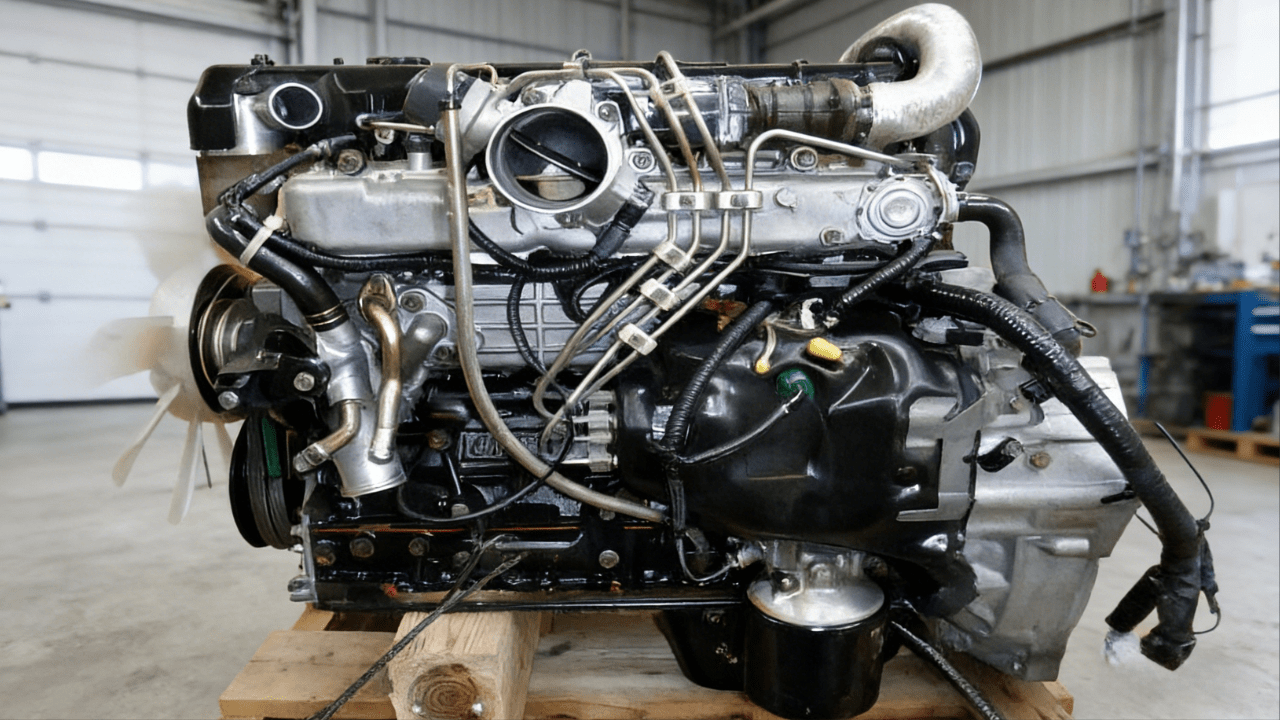

Overview of the Isuzu 4HF1 Engine
The Isuzu 4HF1 engine is a 4-cylinder, 4-stroke, horizontal, and water-cooled engine. It features a direct injection fuel system and a cast iron block, utilizing a mechanical direct injection (VE-type rotary pump) fuel system without common rail technologies. The engine is known for its mechanical simplicity, durability, and ease of maintenance due to minimal reliance on electronics. It is used in various applications, including commercial trucks, construction equipment, agriculture machinery, and marine vessels.
The Isuzu 4HF1 engine is a 4.3L diesel workhorse built for light and medium-duty Isuzu trucks. You’ll find it powering city delivery vehicles, construction trucks, and regional transport chassis across the globe.
This engine belongs to Isuzu’s respected H-series family. It features a cast-iron block and head designed specifically for commercial duty cycles and long service life. The thick castings help the engine handle heavy loads day after day without excessive wear.
The 4HF1 uses mechanical fuel injection rather than modern common rail technology. This design choice makes it significantly easier to repair in markets where advanced diagnostic tools are limited or unavailable. A skilled mechanic with basic equipment can service, adjust, and repair the injection system without specialized electronics.
Production and widespread use of the 4HF1 spans mainly from the mid-1990s to the late 2000s across many markets. Today, these engines remain extremely popular in Asia, Africa, the Middle East, and Latin America. Many arrive as imported used trucks from Japan, where strict inspection standards mean the vehicles are often retired while still mechanically sound.
Fab Heavy Parts focuses on supplying new and remanufactured 4HF1 engines, short blocks, and overhaul kits for fleets and individual owners who need reliable replacement options, supported by extensive Isuzu 4HF1 Engine Parts.
Next, let's examine the core technical specifications that define the 4HF1's performance and reliability.
Isuzu 4HF1 Core Technical Specifications
Below is a summary table that directly answers the most common search queries about the Isuzu 4HF1 engine:
|
Feature |
Specification |
|---|---|
|
Displacement |
3.0 liters (183 cubic inches) |
|
Power Output |
110–150 hp (variant and tuning dependent) |
|
Peak Torque |
285–350 Nm (295–325 lb-ft) |
|
Compression Ratio |
20:1 |
|
Fuel System Type |
Mechanical direct injection (VE-type rotary pump), no common rail |
|
Applications |
Commercial trucks (Isuzu Elf, NPR, NKR, NQR), construction, agriculture, marine |
|
Durability |
Can exceed 500,000 km with proper care and maintenance |
This section lists the main technical data that customers commonly search for when researching the 4HF1 engine. Whether you’re looking up “4HF1 engine cc” or “Isuzu Elf 4HF1 specs,” you’ll find the essential numbers here.
Displacement and Configuration
|
Specification |
Value |
|---|---|
|
Displacement |
4,302 cc (4.3L) |
|
Configuration |
Inline-4, four-stroke, water-cooled diesel |
|
Bore |
115 mm |
|
Stroke |
110 mm |
|
Compression Ratio |
18.5–19.0:1 |
|
The bore and stroke dimensions create a large-bore, long-stroke design optimized for torque production. This compression ratio is high enough to ensure reliable cold starting and good fuel efficiency across operating conditions. |
|
Power Output and Torque
|
Specification |
Typical Range |
|---|---|
|
Power Output |
88–107 kW (120–145 hp) at 2,800–3,000 rpm |
|
Peak Torque |
320–380 Nm at 1,500–2,200 rpm |
|
The power figures vary based on tune, emissions specifications, and whether the engine is naturally aspirated or equipped with a turbocharger. What makes the 4HF1 particularly suitable for commercial vehicles is that strong low-rpm pulling power. You get maximum torque right where you need it for loaded trucks. |
|
Valvetrain and Timing System
The 4HF1 uses an OHV (overhead valve) layout with two valves per cylinder. A gear-train timing system drives the camshaft rather than a belt or chain. This design is extremely reliable and eliminates the need for timing belt replacements that many other engines require.
Fuel System Details
The fuel system relies on mechanically controlled injection:
- Inline or distributor-type injection pump
- Direct injection combustion chamber design
- Mechanical injectors with simple maintenance requirements
This mechanical approach means fewer electronic components that can fail. It also makes the system tolerant of lower fuel quality—an important feature in remote regions where diesel standards vary.
Cooling and Lubrication
- Water-cooled with belt-driven fan
- Mechanically driven water pump
- Gear-driven oil pump for consistent pressure
- Full-flow oil filter for maximum protection
Physical Specifications
The dry weight of a complete 4HF1 engine falls in the 350–380 kg range. This weight reflects heavy-duty construction with thick castings designed for longevity rather than lightweight performance. The robust build is exactly what commercial operators need.
With the technical foundation established, let's explore the different 4HF1 variants and how they impact performance and parts compatibility.
4HF1 Variants: Naturally Aspirated vs Turbocharged
The 4HF1 was produced in both naturally aspirated (NA) and turbocharged versions. Understanding which variant you have—or need—directly affects parts selection and performance expectations.
Naturally Aspirated 4HF1
The non turbo version delivers around 120 hp with a simpler overall design. Fewer components mean fewer potential failure points. This variant is ideal for:
- Stop-start city deliveries
- Light-duty applications
- Basic chassis configurations where maximum power isn’t critical
The naturally aspirated engine offers adequate performance for many urban and suburban routes where average speeds remain moderate.
Turbocharged and Intercooled 4HF1
Later versions with turbocharging (sometimes labeled 4HF1-TC in certain markets) provide higher power output and improved torque characteristics, similar to Yanmar engines for which specialized Yanmar engine turbochargers are available. The turbo variant excels at:
- Highway cruising with heavy loads
- Hill climbing and mountain routes
- Applications demanding quicker acceleration
An intercooler paired with the turbocharger helps cool the compressed intake air. This improves power density and protects the engine from excessive heat stress.
Identifying Your Variant
You can usually spot a turbocharged 4HF1 by looking for:
- A turbocharger mounted on the exhaust manifold
- Extra charge-air piping running from the turbo
- A front-mounted intercooler positioned behind the grille
Because tuning, emissions rules, and local markets cause exact specifications to vary, always confirm the engine code stamped on the block tag before ordering parts from Fab Heavy Parts. This step prevents compatibility issues and ensures you get exactly what your vehicle needs.
Common Applications of the Isuzu 4HF1
Knowing which trucks use the 4HF1 helps you confirm compatibility when planning engine swaps or sourcing replacement parts.
Primary Truck Lines
|
Model Series |
Common Body Types |
|---|---|
|
Isuzu Elf |
Box trucks, flatbeds, tippers |
|
NPR |
Delivery vans, refrigerated units |
|
NKR |
Light-duty commercial chassis |
|
NQR |
Medium-duty applications |
|
These trucks serve countless roles: urban delivery, construction material transport, refuse collection, and more. |
|
Production Era and Markets
The 4HF1 commonly appears in chassis built from the mid-1990s through the late 2000s. Japanese domestic models and export versions from this era are still actively working around the world.
Many imported used trucks—especially vehicles exported from Japan—now operate in:
- Africa
- Southeast Asia
- The Middle East
- South America
This global distribution creates strong ongoing demand for replacement engines and parts through suppliers like Fab Heavy Parts.
Special Applications
Beyond standard trucks, the 4HF1 also appears in various construction and agricultural applications where machines equipped with Caterpillar CAT 950H Loader replacement parts are also used:
- Small passenger buses
- Garbage compactor trucks
- Crane trucks and other specialized equipment
Before ordering any engine or components, always check your vehicle’s VIN plate and engine identification tag to confirm the 4HF1 is indeed your powerplant.
Performance, Fuel Economy, and Driving Characteristics
The 4HF1 is a torque-focused engine. It wasn’t designed for high-rev performance or racing applications. Instead, Isuzu engineers optimized it for consistent pulling power and reasonable fuel efficiency under commercial operating conditions.
Low-RPM Torque Delivery
One of the 4HF1’s strongest characteristics is its ability to produce substantial torque just above idle. This makes launching with a heavy load straightforward. Drivers can crawl through stop-and-go traffic without constantly shifting gears.
The torque curve suits both manual transmission trucks and those equipped with an automatic transmission. Either way, the engine provides responsive, predictable power.
Fuel Consumption
Most fleets operating 4HF1-equipped trucks report mid-range fuel economy that balances operational costs with adequate performance. The mechanical injection system contributes to decent fuel efficiency without the complexity of electronic controls.
Actual consumption varies based on:
- Load weight
- Terrain and route profile
- Driver behavior
- Vehicle condition and maintenance history
Tolerance for Variable Fuel Quality
The mechanical injection system helps the engine tolerate lower-quality diesel fuel better than many modern common-rail systems. This tolerance matters in remote regions or countries where fuel standards aren’t tightly controlled.
A Note on Modifications
While mild tuning and turbo upgrades are possible, Fab Heavy Parts recommends prioritizing reliability and cooling upgrades over chasing maximum horsepower in commercial vehicles. An engine that runs dependably for 500,000 km is more valuable than one with an extra 20 hp that fails prematurely.
With performance and economy in mind, let's move on to the maintenance requirements that keep the 4HF1 running strong.
Maintenance Requirements and Service Intervals
Proper maintenance is the primary reason some 4HF1 engines run beyond 500,000 km before requiring a major overhaul. Neglect shortens engine life dramatically, while consistent care extends it well past typical expectations.
Oil and Filter Changes
|
Service Item |
Recommended Interval |
|---|---|
|
Engine oil |
Every 7,500–10,000 km or 6 months |
|
Oil filter |
Every oil change |
|
Use diesel-rated oils meeting Isuzu’s viscosity and API standards. The workshop manual for your specific model provides exact specifications. Quality oil is cheap insurance against premature wear. |
|
Cooling System Care
To keep the cooling system in top shape:
- Replace coolant according to manufacturer intervals
- Inspect hoses and radiator regularly
- Check fan belts and fan clutch operation
- Clean external radiator fins to prevent airflow blockage
Overheating under load can crack cylinder heads and destroy head gaskets. Prevention costs far less than repair.
Air Intake Maintenance
Dusty operating environments demand extra attention:
- Check air filters frequently—monthly in severe conditions
- Use quality filters from reputable manufacturers
- Ensure all intake piping connections remain sealed
- Look for signs of dust ingestion around the throttle
A compromised air filter allows abrasive particles into the cylinders, accelerating bore and ring wear.
Fuel System Service
Keep the fuel system clean and properly adjusted:
- Replace fuel filters on schedule
- Drain water separators regularly
- Have injectors tested and serviced if starting problems, excessive smoke, or high fuel consumption appear
- Inspect injection pump timing if performance degrades
The fuel system components are mechanical, so a qualified diesel technician can service them without expensive diagnostic equipment.
Valve Clearance Adjustment
Check and adjust valve clearances at manufacturer-recommended intervals. Proper clearance maintains:
- Good cold-start behavior
- Full power output
- Optimal fuel economy
Incorrect valve clearance causes hard starting, power loss, and increased fuel consumption.
Exhaust and EGR Systems
Some emissions-controlled versions include EGR systems. On older imported vehicles, inspect for:
- Exhaust leaks
- EGR valve clogging
- Corrosion in exhaust components
Addressing these issues early prevents larger problems.
Fab Heavy Parts supplies filters, gasket sets, pumps, and other wear items as part of periodic service or major overhaul kits, alongside dedicated Cummins B3.3 Engine Parts for mixed-brand fleets. Having the right parts on hand keeps your trucks running.
Common 4HF1 Issues and Troubleshooting
While the 4HF1 has earned its reputation for reliability, age, high mileage, and poor maintenance create predictable problems. Recognizing symptoms early helps you address issues before they become catastrophic failures.
Common Symptoms and Likely Causes
|
Symptom |
Probable Causes |
|---|---|
|
Hard starting |
Worn injectors, low compression, glow plug issues |
|
White exhaust smoke |
Unburned fuel, low compression, coolant leak |
|
Black exhaust smoke |
Overfueling, clogged air filter, timing problems |
|
Blue exhaust smoke |
Oil burning past rings or valve seals |
|
High oil consumption |
Worn rings, valve stem seals, or turbo seals |
|
Power loss |
Air restriction, fuel delivery issues, compression loss |
Oil Leaks
As engines age, oil leaks commonly develop from:
- Rocker cover gaskets
- Front and rear crankshaft seals
- Oil pan gaskets
- Various housing seals
Monitor oil levels closely. Fix leaks early before they cause low-oil damage or create environmental problems.
Cooling System Problems
Cooling failures can destroy an otherwise healthy engine:
- Clogged radiator cores reduce heat transfer
- Failing water pumps stop circulation
- Stuck thermostats prevent proper temperature regulation
- Cracked hoses leak coolant under pressure
Overheating leads directly to head gasket failure and potential cylinder head cracking. Never ignore temperature warnings.
Reading Smoke Signals
Exhaust smoke tells a story:
- White smoke on startup: Often unburned fuel from cold engine or worn injectors; can also indicate low compression
- Blue smoke: Oil burning in the combustion chamber from worn rings, valve guides, or turbo seals
- Heavy black smoke under load: Usually overfueling or air restriction; check filters and injection timing
Preventive Diagnostics
When problems persist, perform:
- Compression tests to identify weak cylinders
- Leak-down tests to pinpoint rings, valves, or head gasket issues
- Injection pump and injector bench testing to evaluate fuel delivery
Rebuilding vs Replacing a Worn 4HF1
Once a 4HF1 reaches high mileage or suffers a major failure, owners face a choice: rebuild the existing engine or install a replacement. Both approaches have merit depending on your situation.
What Rebuilding Involves
A typical 4HF1 rebuild includes:
- New liners (if applicable to the block design)
- New pistons and rings
- Main bearings and rod bearings
- Thrust washers
- Complete gasket set
- Refreshed cylinder head with new valves and seals
Machine shop work often includes:
- Block decking and honing
- Crankshaft inspection and grinding if needed
- Cylinder head resurfacing
When Rebuilding Makes Sense
Rebuilding is best when:
- The block and crankshaft remain within factory specifications
- The vehicle is structurally sound and worth the investment
- Skilled labor and qualified machine shops are available locally
- Downtime is acceptable
Replacement Engine Options
Replacement engines come in several forms:
|
Option |
Description |
|---|---|
|
Low-mileage used imports |
4HF1 engines from Japan with documented history |
|
Remanufactured long blocks |
Factory-rebuilt assemblies with new wear components |
|
New or factory-built short blocks |
Complete lower-end assemblies ready for installation |
|
Fab Heavy Parts supplies all these options to match your needs and budget, and you can easily discuss the right choice via the Fab Heavy Parts contact page. |
|
Cost Comparison
A rebuild might appear cheaper in parts alone, but consider:
- Machine shop labor costs
- Unexpected problems discovered during teardown
- Extended downtime while waiting for machining
A quality used or remanufactured engine may actually save money when you factor in reduced downtime and known-good condition.
Ensuring Compatibility
Before purchasing any replacement 4HF1, verify:
- Engine code matches your application
- Flywheel housing pattern fits your transmission
- Ancillary component layout (mounts, manifolds, pumps) matches your chassis
How to Choose a Quality 4HF1 Engine or Spare Parts
Not all used or rebuilt 4HF1 engines are equal. Cutting corners on your power source leads to expensive problems down the road. A working truck needs a dependable engine.
Evaluating Used or Rebuilt Engines
Before purchasing, examine the following:
- Compression test results: Even cylinder readings indicate good internal condition
- Visible smoke on start and under load: Blue or white smoke suggests defects
- Oil condition: Clean oil with no milky appearance or metal particles
- Maintenance evidence: Tags, invoices, or markings showing recent service
External Inspection Points
Check for signs of damage or wear:
- Cracked exhaust manifolds
- Broken mounting ears
- Corroded coolant passages
- Missing major components like the injection pump or turbocharger
An engine with missing accessories needs additional investment to complete.
Sourcing from Reputable Suppliers
Working with established suppliers like Fab Heavy Parts provides advantages:
- OEM-grade or equivalent component quality
- Proper documentation and part numbers
- Technical support for installation questions
- Warranty coverage on purchased engines
Beyond the Lowest Price
When comparing options, evaluate:
- Warranty terms and coverage period
- Return policies if problems arise
- After-sales support availability
- Shipping costs and delivery timeframes
The cheap option often becomes the expensive option when problems surface.
Fleet Standardization
If you operate multiple trucks, standardize on one 4HF1 variant where possible:
- Either NA or turbo—not both
- Consistent emission specifications
- Same model year range
Standardization simplifies parts stocking and technician training across your fleet, especially if you also operate equipment powered by Isuzu 3KC1 Engine Parts that share similar maintenance practices.
DIY Replacement vs Professional Installation
Some experienced owners can swap a 4HF1 themselves. However, most commercial users benefit from professional installation that minimizes downtime and reduces the risk of costly mistakes.
For DIY Mechanics
If you’re tackling the swap yourself, here’s a high-level overview, and Fab Heavy Parts also offers general tools and parts for DIY projects:
- Disconnect battery and label all wiring connections
- Drain fluids from cooling system, oil pan, and transmission
- Disconnect fuel lines, exhaust, intake, and cooling connections
- Support the transmission with a jack or stand
- Attach engine hoist and remove motor mounts
- Carefully lift the old engine out
Critical Safety Points
- Use a rated engine hoist with adequate capacity, just as you would when working on other machines with a Shibaura engine overhaul kit
- Never work under an unsupported engine or vehicle
- Keep the work area clean and organized
- Have a second person help with heavy lifting and positioning
Installing the Replacement Engine
Installation reverses removal with these additions:
- Transfer sensors, brackets, and manifolds as needed
- Install flywheel and clutch assembly
- Connect all systems and refill with fresh fluids, and replace filters and pumps as needed with compatible Kubota D902 engine parts or similar quality components
- Bleed the fuel system properly
- Follow torque specifications from the workshop manual
When to Choose Professional Installation
- The truck is mission-critical and downtime must be minimized
- Emissions compliance requirements are strict
- You’re unfamiliar with diesel engine swaps
- Warranty coverage requires certified installation
Fab Heavy Parts can coordinate with partner workshops or provide technical guidance to ensure engines and parts are installed correctly and warranties remain valid, just as with their range of Kubota V1902 engine parts.
FAQ
Q1: What vehicles commonly use the Isuzu 4HF1 engine?
A1:The 4HF1 is mainly found in Isuzu Elf, NPR, NKR, and NQR trucks built from the mid-1990s through the 2000s, often alongside vehicles with Isuzu 4HK1 engine parts. Common body configurations include box trucks, flatbeds, tippers, and small bus chassis. Many of these vehicles are now imported as used trucks from Japan into developing markets. The best way to confirm a 4HF1 is installed is to check the engine plate stamped on the block and cross-reference with chassis identification tag, especially if you also work with trucks that use Isuzu 4JA1 engine parts.
Q2: How can I tell if my engine is a 4HF1?
A2: Look for the stamped or riveted engine information plate on the block. This plate typically displays “4HF1” along with the serial number. Cross-check this code with your vehicle’s registration documents or data plate. Visual cues like the inline-4 layout and Isuzu casting marks help with general identification, but the engine code stamped on the block provides the most reliable proof, especially when managing different Isuzu series with, for example, Isuzu 4JB1 engine parts in the same fleet. This matters when ordering parts to ensure proper fit.
Q3: Is the 4HF1 engine compatible with biodiesel or alternative fuels?
A3: Because the 4HF1 uses mechanical injection, many units can tolerate low-blend biodiesel such as B5 or B10. However, this requires good local fuel quality and more frequent filter changes. Avoid high-percentage biodiesel or untested alternative fuels without professional guidance. These can damage injection pumps, seals, and injectors that weren’t designed for those fuel types. When in doubt, stick with standard diesel.
Q4: How long can a 4HF1 engine last with proper maintenance?
A4: Many 4HF1 engines reach 400,000–500,000 km before requiring a major overhaul when serviced on schedule. Some fleets operating in light-duty applications report even higher mileage. The biggest factors in achieving long engine life are frequent oil changes, clean filters, and a healthy cooling system. Neglect any of these areas, and engine life drops dramatically.
Q5: Can I upgrade from a naturally aspirated 4HF1 to a turbocharged version?
A5: Upgrading from NA to turbo is technically possible but not a simple bolt-on modification. You’ll need:
- Turbo-specification exhaust manifolds
- The turbocharger itself
- Oil feed and drain lines
- Possibly an intercooler
- Careful fueling adjustments
Whether you’re maintaining your current 4HF1 or shopping for a replacement, understanding these specifications helps you make better decisions. The 4HF1 remains a proven choice for commercial vehicles worldwide, combining durability with straightforward serviceability.
Contact Fab Heavy Parts at www.fabheavyparts.com with your VIN and engine number to get matched with the right 4HF1 engine or parts for your specific application.
Shop Replacement Parts Fit for Isuzu 4HF1 Engine
FAB Heavy Parts: Your Trusted Engine Parts Supplier
Welcome to Fab Heavy Parts' online catalog, your trusted source for quality auto parts and tools. Explore our extensive selection of replacement parts for Isuzu 4HF1 Engine and more. Avoid delays by securing the parts you need from a reliable supplier who keeps inventory moving. Our expert team is here to provide personalized support, ensuring you get the right parts. Reach out today to stay ahead and keep your operations seamless!
