Key Takeaways
- A clogged oil cooler is one of the most common 6.0L Powerstroke failures, quietly destroying engine components when ignored.
- The clearest symptom is a high temperature delta between Engine Oil Temperature (EOT) and Engine Coolant Temperature (ECT)—anything over 15°F with oil running hotter than coolant on a warmed-up truck signals trouble.
- Other real-world signs include frequent fan engagement, EGR cooler failures with white smoke, coolant loss from the degas bottle, and oil/coolant cross-contamination.
- At Fab Heavy Parts, we focus on practical solutions: proper diagnosis with a scan tool, thorough cooling system cleaning, and quality replacement or upgrade parts.
- Catching a failing oil cooler early can save your turbo, EGR cooler, and thousands of dollars in serious engine damage.
Introduction: Why the 6.0L Oil Cooler Matters
The 2003–2007 6.0L Powerstroke doesn’t just use engine oil for lubrication. It relies on high-pressure oil—up to 3,600 psi—to fire the HEUI injectors. That makes oil temperature control absolutely critical for consistent power and injector life.
The factory oil cooler sits buried in the engine valley under the intake manifold. It uses coolant to pull excess heat from the oil. The problem? Those narrow coolant passages are notorious for clogging with casting sand, rust, and scale—especially by 150,000–200,000 miles on trucks with inconsistent coolant maintenance.
At Fab Heavy Parts, we see clogged oil coolers weekly on work trucks, tow rigs, and fleet vehicles. This article breaks down how to spot the oil cooler symptoms before major damage occurs. No fluff—just real temperatures, real numbers, and next steps any 6.0L owner can understand.
What the Oil Cooler Does on a 6.0L Powerstroke

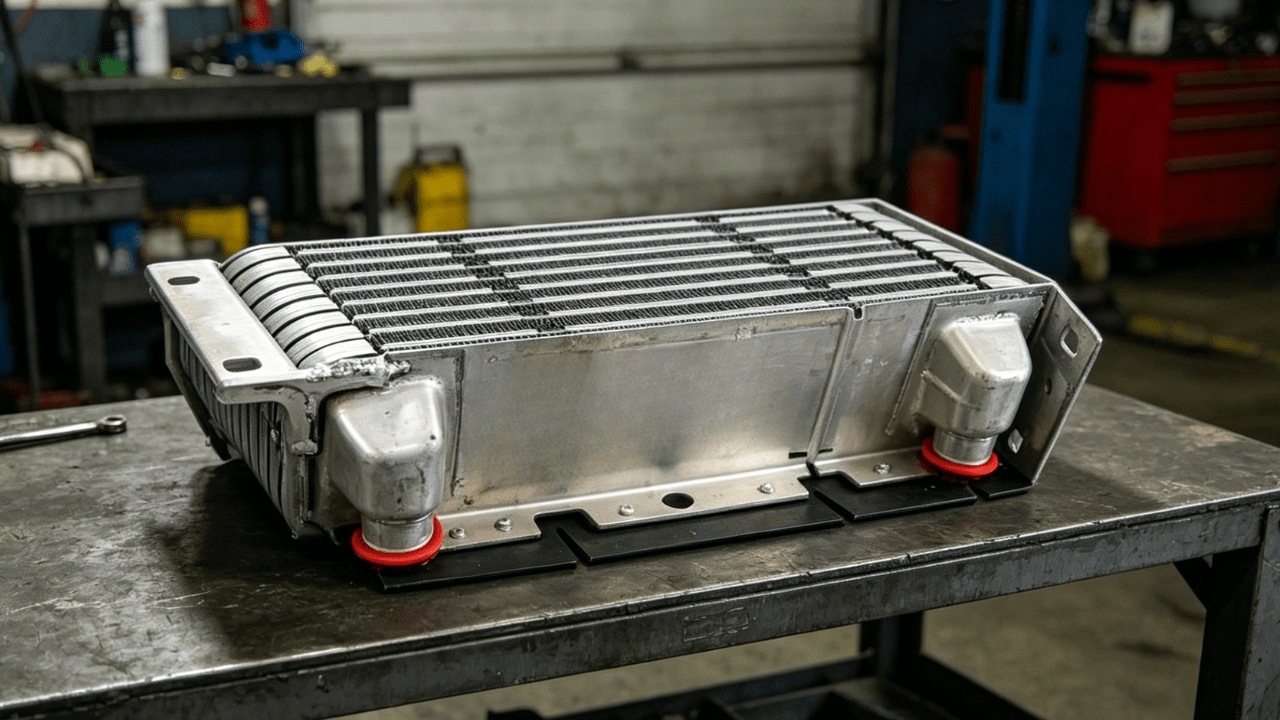

On a 6.0L, the oil cooler mounts in the engine valley and routes hot engine oil through a stacked-plate heat exchanger surrounded by coolant. This design keeps oil temp near the same temperature as coolant—typically 190–210°F in a healthy truck.
Stable oil temperature matters because the HEUI system depends on consistent oil pressure for clean injector operation and smooth power under load. Any restriction on the coolant side reduces heat transfer. The oil gets hotter, pushes the cooling system harder, and creates problems that snowball—especially when towing or climbing grades.
Why 6.0L Oil Coolers Clog in the First Place
The OEM cooler uses extremely narrow coolant passageways—some less than 0.5mm in diameter. This design is the root of most 6.0L oil cooler problems. Debris accumulates over time, progressively choking coolant flow.
The main causes of clogging include:
- Leftover casting sand from the original block and heads
- Rust and scale from neglected or old coolant
- Mixing coolant types (green, gold, and “universal” formulas)
- Hard water minerals from topping off with tap water instead of distilled
On trucks built between 2003 and 2006, the first major restriction typically shows up between 100,000 and 175,000 miles. Work trucks that tow in hot weather with minimal coolant system maintenance hit this point faster.
Once the coolant side starts to plug, restricted flow sends hotter coolant toward the EGR cooler downstream. That’s why many owners notice EGR cooler failure and related EGR valve problems before realizing the oil cooler was the upstream cause.
Core Symptoms of a Clogged 6.0 Oil Cooler
Clogged oil cooler symptoms usually build slowly over weeks or months. Most can be spotted clearly on a scan tool long before the truck overheats or throws a wrench light.
Watch for these warning signs:
- Increasing EOT–ECT delta over 15°F
- Engine fan running more often and louder
- EGR cooler failures with white smoke from exhaust
- Coolant puking from the degas bottle
- Visible oil in coolant or coolant reservoir
- Gradual loss of power or fuel economy under load
- Unexplained coolant loss with no external leaks
The following sections dig into each major symptom with real temperature numbers and what they mean.
High EOT-ECT Temperature Delta
EOT (Engine Oil Temperature) and ECT (Engine Coolant Temperature) are the two readings most 6.0L owners monitor with an Edge CTS3, ScanGauge, or similar OBD-II device.
Here’s what the numbers mean:
|
Delta (EOT minus ECT) |
Status |
|
Under 10°F |
Healthy |
|
10–15°F |
Warning—monitor closely |
|
Over 15°F |
Restricted oil cooler likely |
|
Over 20°F |
Replacement overdue |
|
To test: drive 65–70 mph on level highway with ambient temps around 70–90°F, truck fully warmed, no trailer. If ECT stabilizes at 192°F but EOT climbs to 210–225°F, you’ve got a problem. Look for a consistent high delta over several minutes—not just a quick spike from a hill. |
|
Fan Clutch Running Hard and More Often
As the oil cooler clogs, the cooling system works harder. The fan clutch locks up more frequently, pulling extra air through the radiator to compensate.
The real-world symptom: a loud “jet engine” roar at moderate speeds or on grades, even when dash gauges look normal. A bad fan clutch alone causes high engine coolant temperature without a large delta. But when you see both heavy fan use and a big EOT–ECT difference, the oil cooler is a prime suspect, and it’s worth reviewing the typical symptoms of a bad fan clutch to rule it out.
EGR Cooler Problems Triggered by a Clogged Oil Cooler
On the 6.0L, coolant from the oil cooler routes through the EGR cooler. When the oil cooler restricts flow, the EGR cooler overheats and cracks. Shop data shows 70–80% of EGR cooler failures trace back to upstream oil cooler clogging.
Common EGR failure signs:
- White smoke or steam from the exhaust
- Unexplained coolant loss with no visible leaks
- Sweet smell from exhaust after hard pulls
Replacing the EGR cooler alone without addressing the restricted oil cooler and cooling system contamination almost guarantees a repeat failure. Some owners opt for an EGR delete, but the core issue remains the oil cooler.
Coolant Puking or Contamination
"Puking" coolant shows up as dried crust around the degas bottle cap, coolant streaks on the bottle, or spray on the underside of the hood. Repeated puking after towing points to cooling system stress--often worsened by a bad oil cooler that can no longer shed heat or issues with the coolant reservoir (degas bottle).
Severe oil cooler failure can allow engine oil to enter the coolant, leaving a brown or tan film in the degas bottle or radiator hoses. This contamination attacks hoses, the radiator, water pump, and heater core. A deep system flush is mandatory—not just a cooler swap.
Subtle Performance Changes Under Load
Before engine temps get extreme, many owners report less pull on grades, more downshifts, or higher EGTs while towing the same load on the same route.
Hotter, thinner oil and elevated coolant temps cause the computer to pull timing and reduce power to protect engine components. Fuel economy can drop 1–2 mpg. By the time performance changes are noticeable, the EOT–ECT delta is often already 20–25°F—and the cooler is overdue for replacement.
How to Confirm a Clogged Oil Cooler (At Home and in the Shop)
Don’t throw parts at the truck. Get a clear diagnosis first.
Steps to confirm:
- Check coolant level and quality in the coolant reservoir
- Look for oil in coolant (chocolate-milk appearance)
- Monitor EOT and ECT with a scan tool
- Perform a steady highway delta test at operating temperature
- Scan for fault codes—especially EGR-related or over-temp codes
Consumer tools like the Edge CTS3 or ScanGauge III work well. Shops often use Ford IDS for deeper diagnostics.
Running a Reliable EOT-ECT Delta Test
Warm the truck fully. Drive 60–70 mph on level ground for 10–15 minutes with no trailer. Set cruise control if possible.
Watch live data on the scan tool and record EOT and ECT once they stabilize. Take 3–5 readings spaced a minute apart to confirm the pattern. Don’t base decisions on one short burst of high load or a steep hill—consistent, repeated readings are what matter.
Ruling Out Sensor or Fan Clutch Problems
Sometimes what looks like a clogged cooler is actually a faulty sensor or weak fan clutch.
Quick checks:
- Swap EOT and ECT sensor connectors briefly—if the problem follows the sensor reading, the sensor is bad
- Watch for voltage jumps or sudden 20–30°F swings on one sensor while the other stays steady
- A worn fan clutch shows high ECT with normal oil temp; a restricted oil cooler shows hot oil with cooler coolant
This difference is critical for correct diagnosis.
What To Do If Your 6.0 Oil Cooler Is Clogged
Once confirmed, you have three paths: drive gently while planning the repair, attempt a backflush as a temporary fix, or schedule full cooler replacement with coolant decontamination.
Safe operating guidelines:
- If ECT approaches 235°F or EOT crosses 255°F, reduce speed immediately
- Avoid heavy towing with deltas consistently over 15°F
- Get off steep grades and reduce load when temperatures climb
Backflushing is a band-aid at best. Once restriction is significant, replace the cooler.
Backflushing vs. Replacing the Factory Cooler
Backflushing can knock some debris loose and reduce the delta by a few degrees. But it rarely restores full flow and can push contaminants elsewhere in the coolant system.
For work trucks and tow rigs, replace the factory cooler and flush the entire system—especially on trucks past 150,000 miles. A new OEM-style cooler with fresh coolant and a coolant filter kit often brings deltas back under 7–10°F.
If oil has already contaminated the coolant, backflushing isn’t enough. Full teardown, replacement, and multi-step cleaning are required.
Upgrading and Protecting the New Cooler
Some owners upgrade to an external air-to-oil cooler system, moving the cooler out of the engine valley entirely. This improves serviceability and avoids coolant-side debris.
Protect the new cooler:
- Install a quality coolant filter kit in the heater hose circuit
- Use correct spec coolant—never mix types
- Flush the system every 30,000–50,000 miles depending on use
- Inspect EGR cooler, O rings, gaskets, and valley components while access is easy
Long-Term Maintenance Tips for 6.0L Cooling and Oil Systems
A new oil cooler is only as good as the coolant system feeding it.
Key practices to prevent overheating and repeat failures:
- Test and replace coolant on schedule
- Use distilled water only for mixing
- Install and maintain a coolant filter
- Monitor EOT/ECT delta on road trips
- Inspect degas bottle and hoses at every oil change
- Keep a simple log of delta readings in the glove box
This log helps spot trends early—especially on work trucks logging 25,000+ miles a year.
FAQ
Q1: Can I keep driving my 6.0 if the oil cooler delta is 15-20℉？
A1: Many trucks feel normal with a 15–20°F delta during light driving. But continuing to tow heavy or drive hard in hot weather with this restriction greatly increases the risk of EGR cooler failure, coolant puking, and serious engine damage. Short trips around town are less stressful, but plan a cooler replacement soon rather than waiting for trouble.
Q2: Is a clogged oil cooler the same as a bad EGR cooler?
A2: No. They’re separate parts. The oil cooler manages engine oil temperature using coolant. The EGR cooler reduces emissions by cooling exhaust gas. On the 6.0L, a restricted oil cooler frequently causes overheated EGR coolers—so EGR problems are often a symptom of upstream blockage, not an isolated issue.
Q3: How often should I replace or service the 6.0L oil cooler?
A3: There’s no fixed mileage interval. Many original coolers start showing restriction between 100,000 and 175,000 miles, especially on trucks that tow. Monitor your delta regularly. When readings consistently pass 15°F during unloaded highway driving, it’s time for replacement and a thorough cooling system service.
Q4: Can a clogged oil cooler damage the turbo or injectors?
A4: Indirectly, yes. Running hot, thin oil accelerates wear on turbo bearings and reduces protection for injectors that depend on high-pressure oil. Overheated oil also breaks down faster, increasing sludge and varnish in oil rails and small passages feeding critical components, all of which raise the risk factors behind turbocharger failures and even rare explosions.
Q5: Do I have to use a factory-style cooler, or should I upgrade to an external kit?
A5: Both approaches work. A new OEM-style cooler with clean coolant and filtration is solid for daily drivers. External air-to-oil systems appeal to owners wanting better serviceability and lower coolant-side risk. Consider how you use the vehicle—light commute versus heavy tow versus commercial work—and consult with a diesel-focused shop or Fab Heavy Parts to match the solution to your real-world needs and budget.
