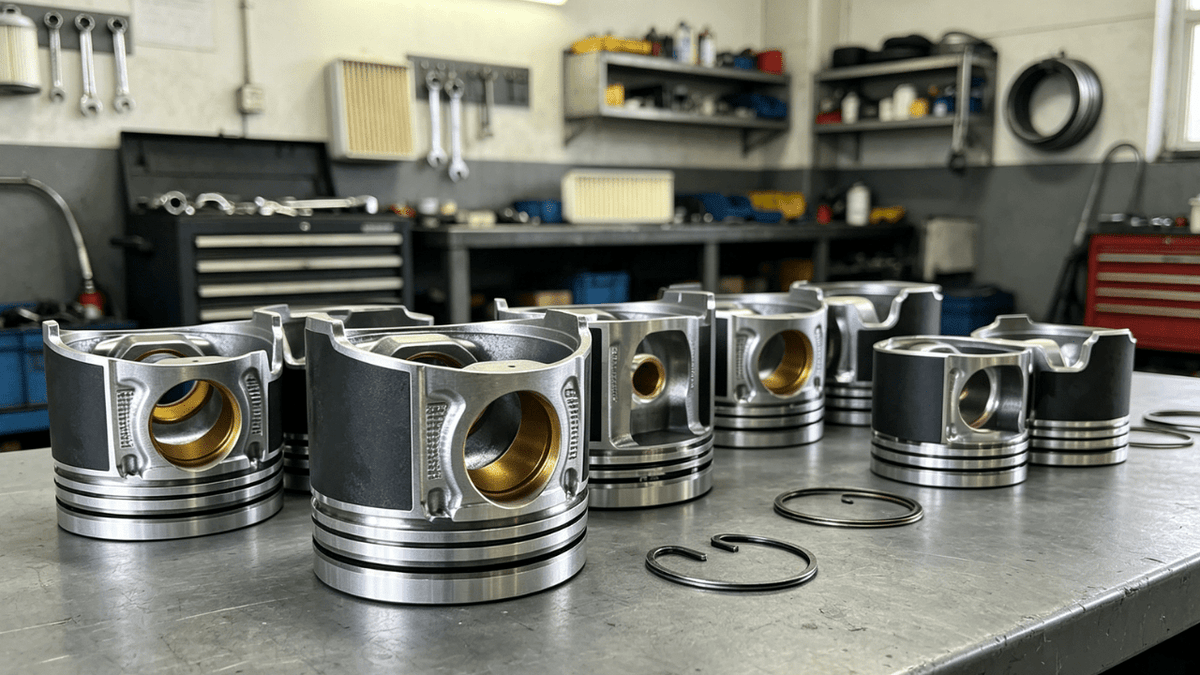

Every engine that moves a truck up a mountain pass, drives an excavator bucket through rock, or keeps a generator humming through the night depends on one critical moving part. The piston sits at the heart of every internal combustion engine, converting explosive pressure into the mechanical force that does real work. This guide breaks down how pistons function, what makes diesel engine pistons different from gasoline designs, why they fail, and how to choose the right replacement when it's time for a rebuild.
Key Takeaways
- The piston is a core moving component inside the cylinder of an internal combustion engine. It converts the pressure from burning air and fuel into force on the connecting rod and crankshaft, producing the rotation that powers vehicles, machines, and generators.
- Diesel engines in trucks, loaders, and excavators operate at higher compression ratios, higher cylinder pressures, and elevated temperatures compared to gasoline engines. Their engine pistons, rings, and piston pin bores must be stronger and better cooled to survive these conditions.
- Piston wear or damage shows up as power loss, blow-by, rising oil consumption, and exhaust smoke. Timely replacement with quality parts-like those supplies by fabheavyparts.com-prevents catastrophic engine failure.
- Choosing the right piston design, material, and compression ratio is essential when rebuilding engines for fleets and heavy equipment. The wrong piston can destroy an engine in hours.
- Regular maintenance-correct oil, clean air filtration, functioning cooling systems, and proper operating habits-extends piston life by hundreds of thousands of miles.
What Does a Piston Actually Do in an Internal Combustion Engine?
A piston converts combustion pressure into mechanical force. When the air fuel mixture ignites inside the combustion chamber, the expanding gases push the piston downward along its vertical axis. That force travels through the connecting rod to the crankshaft, turning linear up and down motion into the rotational power that drives wheels, hydraulic pumps, and generators.
Pistons are connected to the crankshaft via connecting rods, and this simple linkage is the foundation of every reciprocating engine. Each piston moves up and down inside an engine cylinder, and piston rings pressed against the cylinder wall seal the combustion chamber above. That seal keeps compression high and prevents hot combustion gases from leaking into the crankcase below.
To understand why this matters, compare the internal combustion engine to an older steam engine. In a steam engine, heat is applied externally to boil water, and the resulting steam pushes a piston. In modern combustion engines, combustion occurs directly inside the cylinder. This internal process allows much higher pressures, faster response, and far more compact power density.
In heavy trucks, agricultural machines, and construction equipment, larger-diameter pistons handle very high cylinder pressures and long duty cycles. Modern heavy-duty diesels regularly produce peak pressures exceeding 200 bar on a power stroke. That kind of load demands thick crowns, reinforced ring lands, and effective cooling-features you won't find on a standard passenger-car piston.
Main Parts of an Engine Piston and How They Work Together
Understanding each part of the piston helps explain common wear and failures in engines. Key components include:
- Piston crown (head): The top face exposed to combustion. Diesel pistons often have a recessed bowl to improve air-fuel mixing. Crown temperatures can reach 400–500 °C.
- Ring belt and grooves: Houses compression and oil control rings. The top ring seals gas pressure, the second supports sealing, and the oil ring manages lubrication.
- Piston skirt: Guides the piston in the cylinder and is designed with ovality for thermal expansion. Low-friction coatings reduce scuffing.
- Pin bosses and piston pin: Connect the piston to the connecting rod. Heavy-duty pistons have reinforced bosses to handle cyclic loads. Failure here can cause major engine damage.
These parts work together to convert combustion pressure into controlled piston movement while withstanding heat and mechanical stress.
The Piston's Role in the Four-Stroke Cycle
The piston moves up and down in a four-stroke cycle: intake, compression, power, and exhaust strokes. This cycle repeats thousands of times per minute in a running engine.
Intake stroke: The piston moves down, drawing air or an air-fuel mix into the cylinder. Turbochargers boost air intake in heavy-duty engines.
Compression stroke: The piston moves up, compressing the charge. Diesel engines compress air to ignite fuel without a spark; gasoline engines use spark plugs.
Power stroke: Combustion pushes the piston down, transferring force to the crankshaft. Diesel pistons endure pressures up to 20 MPa.
Exhaust stroke: The piston moves up, expelling exhaust gases.
In multi-cylinder engines, pistons fire in sequence to deliver smooth power and reduce vibration.
Diesel Engine Pistons vs. Gasoline Engine Pistons
Diesel and gasoline engines place different demands on pistons. Diesel engines run at compression ratios of 16:1 to 23:1 with peak cylinder pressures up to 200–250 bar. Gasoline engines operate at 9:1 to 12:1 compression with lower pressures but higher speeds.
Diesel pistons are taller, heavier, and have deeper combustion bowls to control air swirl and fuel spray. They feature stronger ring lands, reinforced pin bores, and sometimes steel or hybrid construction to handle pressures of 150–160 bar or more.
Gasoline pistons are lighter aluminum designs with thinner skirts and valve reliefs, optimized for high engine speeds. Lighter pistons reduce reciprocating mass, improving acceleration and response.
For example, heavy-duty Cummins or CAT diesels use steel-crowned or full-steel pistons with oil cooling galleries, while light-duty gasoline engines use aluminum pistons with coatings and thin walls. Matching piston type to engine design is critical to avoid compression issues, overheating, or failure.
Compression Ratio and Why Diesel Pistons Run So Much Harder
Compression ratio is the total volume above the piston at bottom dead center divided by the volume remaining at top dead center. It measures how much the air is compressed before combustion.
Diesel engines have higher compression ratios than gasoline engines, often above 16:1. For example, the Isuzu 6H engine runs at 18.5:1. This high compression heats air enough to ignite diesel fuel without a spark plug. Gasoline engines use lower ratios to prevent knocking.
Higher compression means higher pressure and temperature on the piston crown and rings, increasing mechanical and thermal stress. Dome pistons raise compression by increasing surface area, while dish pistons lower it for turbocharged engines. Flat-top pistons promote efficient combustion and are common in naturally aspirated gasoline engines.
Piston bowl shape and height affect compression ratio, air swirl, and fuel mixing. Engine builders must match pistons to compression ratio, ECM calibration, and emissions requirements. Even small changes to bowl volume can impact combustion and emissions.
How Piston Rings Seal and Protect the Cylinder
Most automotive and heavy-duty pistons have two compression rings and one oil control ring to seal the piston against the cylinder wall.
Here's how they work:
- Top compression ring: Seals combustion pressure and prevents blow-by, facing the highest pressure and temperature.
- Second compression ring (scraper ring): Supports sealing and helps scrape excess oil downward.
- Oil control ring: Controls lubrication oil on the cylinder wall, preventing excess oil from entering the combustion chamber and causing smoke.
Proper ring fit and tension are crucial. Worn or sticking rings, common in high-soot diesel engines with heavy EGR, lead to blue smoke, high oil use, and compression loss.
Ring groove tolerances are vital; loose grooves cause ring flutter and poor sealing. Quality replacement pistons from fabheavyparts.com ensure precise groove machining for reliable diesel engine performance.
Piston Materials: Aluminium, Steel, and Hybrids
Engine pistons are categorized by manufacturing method and material composition, and different piston materials influence engine performance, reliability, and thermal efficiency.
Aluminium alloys are standard for most light-vehicle engines. They are lightweight with good thermal conductivity, operating at temperatures about 200 °C lower than cast iron. Hypereutectic pistons have more silicon to reduce thermal expansion and improve wear resistance.
Steel pistons suit heavy-duty applications where aluminium falls short. Steel withstands higher temperatures and pressures, expands less, and resists cracking better but is heavier, less heat-conductive, and costlier.
Hybrid pistons combine a steel crown with an aluminium skirt, offering strength where needed and reducing overall weight. Pistons may be cast or forged from high-temperature alloys depending on use.
Material choice affects warm-up noise, piston-to-bore clearance, and component design. While aluminium dominates passenger vehicles, steel and hybrid pistons are common in heavy trucks handling pressures over 200 bar.
Piston Geometry: Ovality, Taper, and Skirt Design
Pistons are not perfectly round. Engineers design them with ovality and taper so they fit and function correctly at operating temperature.
At room temperature, pistons are slightly oval—wider across the pin axis and narrower across the thrust faces. When heated, pistons expand into a more circular shape that fits snugly in the cylinder bore without seizing.
Piston crowns often have a smaller diameter than the skirt (a tapered profile) to allow the hotter crown to expand freely. Steel pistons expand less than aluminium ones, enabling tighter cold clearances and quicker warm-up.
Skirt shapes vary by use. Barrel-shaped skirts distribute oil evenly and reduce pressure, while slipper pistons have cut-down skirts to reduce weight and friction for high-revving petrol engines. Heavy-duty diesels use full skirts for stability under heavy loads. Modern coatings like graphite and molybdenum disulfide reduce friction and protect against wear.
Piston slap, caused by excessive clearance or misalignment, leads to engine vibrations. Proper design and coatings help minimize this. Slipper pistons reduce weight and friction, improving performance in racing and high-speed engines, but are less common in heavy equipment.
Mechanical Loads on Pistons in Real-World Engines
Pistons in combustion engines endure extreme cyclic loads from gas pressure and inertia, changing direction thousands of times per minute. They must withstand cylinder pressures and thermal conditions specific to their use.
Gas pressure loads: Combustion forces on the piston crown can reach up to 180 bar in heavy diesel engines. Diesel pistons handle pressures up to 20 MPa, much higher than gasoline pistons.
Inertia loads: When reversing at top or bottom dead center, the piston's mass causes tensile and compressive forces on pin bosses, skirt, and wrist pin. These forces increase with engine speed, making piston weight critical for high RPM.
Boost pressure, engine speed, and tuning increase these stresses. Stock pistons may fail under aggressive tuning.
For heavy loads, upgrading to forged or heavy-duty pistons and rods helps prevent failures like cracked crowns and broken ring lands. Mechanical loads on pistons are relentless; cutting corners risks costly damage.
Thermal Loads and Piston Cooling Solutions
Piston crowns face intense heat from combustion, with temperatures reaching around 2000 °C in the gases and the piston itself hitting up to 350 °C or more during high-power use. Crowns can exceed 450 °C, making cooling essential to engine durability.
Heat from combustion transfers through the piston crown, ring belt, skirt, and pin, then to the cylinder walls, oil, and connecting rod. Cooling methods include oil jets that spray the underside of the crown, common in turbocharged diesels, and internal cooling galleries circulating oil to remove heat.
Effective oil flow—typically over 80% of injector flow—is critical for cooling. Poor cooling from blocked jets, low oil levels, or degraded oil leads to piston damage like crown cracking and ring groove wear. Maintaining the cooling and lubrication system is vital to prevent irreversible piston damage in heavy-duty engines.
Common Piston Types in Internal Combustion Engines
Piston design varies by application. Main types include:
Trunk pistons: Common in most car and truck engines, these have full skirts that guide the piston without a separate crosshead. They provide stability and are widely used in large diesel engines.
Slipper pistons: Used in performance gasoline engines, these have cut-down skirts to reduce weight and friction, enabling higher engine speeds.
Crosshead pistons: Found in large slow-speed marine or power-plant diesels, they use a separate crosshead to handle side loads and protect the cylinder.
Deflector pistons: Used in two-stroke engines, their raised crown sections direct gas flow between intake and exhaust ports.
Pistons are also categorized by manufacturing method and material, with choice depending on engine speed, size, duty cycle, and stroke type. Trunk pistons dominate in off-road and industrial engines for their balance of stability and cost.
The Piston-Connecting Rod-Crankshaft Relationship
Pistons are part of the cranktrain, along with connecting rods, crankshaft, and bearings inside the engine block.
The wrist pin connects the piston to the connecting rod's small end, allowing pivoting as the crankshaft rotates. This pivot converts the piston's up-and-down motion into smooth rotation.
The connecting rod handles compressive forces during the power stroke and tensile forces during intake and exhaust strokes. Its length and angle affect side loads on the piston skirt, so engine designers balance rod ratio with bore and stroke.
High-output diesel engines use forged steel rods and pins with larger diameters and stronger bearings. When replacing pistons in heavy equipment, always inspect connecting rods, crank journals, and other rods for wear or damage. A new piston with a worn rod risks engine failure.
Engine Pistons vs. Jet Engines and Gas Turbines
Both piston engines and gas turbines are internal combustion engines but work differently.
Piston engines combust fuel intermittently in cylinders, moving pistons up and down. Connecting rods convert this motion into crankshaft rotation, making them reciprocating engines.
Gas turbines and jet engines have continuous airflow through compressors, combustors, and turbines, with no pistons or reciprocating parts. Combustion is continuous.
Piston engines dominate trucks and heavy equipment because they provide high torque at low RPM, handle variable loads well, and are easier to service than turbines. This explains why piston technology keeps evolving with better materials and cooling instead of being replaced by turbines in ground vehicles.
Typical Piston Failures in Heavy-Duty and Diesel Engines
Pistons fail in real-world fleets mainly due to long hours at high load, poor maintenance, overheating, or incorrect tuning. Recognizing failure signs early can save an engine.
Common failures include:
- Cracked crowns and bowl rim: Thermal fatigue causes cracks starting at the bowl rim or pin bosses. One case showed a piston cracking after just 1,276 hours.
- Broken ring lands: Over-fueling or detonation shatters ring lands, ruining gas sealing and sending debris through the engine.
- Scuffed skirts: Caused by poor lubrication, cold starts, wrong clearance, or dirty oil, leading to wear and damage.
- Melted bowl edges: Rich fuel zones cause high temperatures that erode the crown.
Symptoms: power loss, increased oil use, exhaust smoke, and hard starting.
A study found pistons failing around 302,763 km, less than the OEM's 400,000 km rebuild interval, often due to severe use and poor maintenance.
Regular oil checks, compression tests, and inspections help catch issues early and prevent major failures.
Upgraded and Performance Pistons for Work and Play
Upgraded pistons aren't just for race cars. Fleets running high-horsepower tunes or heavy towing also benefit from stronger components.
Forged pistons are made from solid aluminum billets compressed under immense pressure, creating denser, stronger parts with better fatigue resistance. Cast pistons, made by pouring molten aluminum into molds, are adequate for stock power but less durable under high boost or heavy loads.
Performance pistons often feature:
- Reinforced ring lands to resist cracking under high pressure
- Thicker crowns for better heat resistance
- Strengthened pin bosses for tougher connecting rod connections
- Advanced coatings on skirts (graphite, molybdenum disulfide) to reduce friction and wear
- Thermal barrier coatings on crowns to limit heat absorption
These upgrades are crucial for engines pushed beyond stock limits, whether in tuned pickups or heavy-duty diesels. Fabheavyparts.com supplies quality heavy-duty pistons and components tailored to specific engine models in trucks and heavy machinery.
Choosing Replacement Pistons for Fleets and Heavy Equipment
Correct piston selection matters enormously when rebuilding an internal combustion engine in a truck, excavator, or generator set. The wrong part costs far more than the price difference.
Key selection factors:
|
Factor |
Why It Matters |
|
Engine model and serial number |
Determines exact piston dimensions and features |
|
Bore size (standard or oversize) |
Must match honed cylinder bore precisely |
|
Duty cycle |
Continuous heavy load vs. intermittent operation affects material choice |
|
Target compression ratio |
Must match cylinder head, injector calibration, and ECM |
|
Fuel type (diesel vs. gasoline) |
Completely different crown, ring, and material requirements |
|
Match piston material (aluminium or steel), ring groove count and width, and pin diameter to OEM specifications. Verify compatibility with existing connecting rods, the cylinder head, and emission control systems-especially on late-model diesel engines where fuel injection timing is calibrated to a specific combustion chamber volume. |
|
Maintenance Practices That Extend Piston Life
Pistons can last hundreds of thousands of miles or thousands of hours if the engine is properly maintained. Key factors include:
- Oil changes: Use the correct oil type and change it regularly. Diesel engines with EGR and DPF systems produce more soot and acids that degrade oil faster.
- Air filtration: Keep filters clean and intake sealed to prevent dust from damaging piston rings and cylinder walls.
- Cooling system: Maintain coolant quality and radiator cleanliness. Overheating damages piston crowns and reduces oil control.
- Operating habits: Avoid lugging at low RPM under heavy load. Follow warm-up and cool-down procedures to reduce thermal stress.
- Fuel quality: Use clean, proper fuel to prevent hot spots that erode pistons.
These simple maintenance steps greatly extend piston life and prevent costly engine failures.
How Pistons Affect Emissions and Fuel Economy
Piston design, ring sealing, and compression ratio all impact how fully air and fuel burn in the combustion chamber, affecting emissions and fuel use.
Tight ring sealing minimizes blow-by, keeping combustion gases in the chamber for useful work instead of leaking into the crankcase. Blow-by wastes energy and contaminates engine oil.
Optimized piston bowl shapes in diesel engines improve air-fuel mixing during injection, leading to more complete combustion, less soot, and better fuel efficiency. Research shows steel pistons in HSDI diesel engines reduce friction, shorten combustion duration, and improve thermal efficiency.
Worn pistons and rings increase particulate emissions, smoke, and can cause regulatory issues. Overhauling engines with quality pistons and rings often improves fuel economy and emissions consistency.
Engine Pistons Beyond Road Vehicles: Industrial, Marine, and Power Generation
Piston technology is vital across trucks, marine propulsion, mining machinery, and power generators.
Large medium- and low-speed diesel engines in ships use massive pistons, sometimes over a meter in diameter, featuring complex cooling galleries and specialized ring carrier designs. These engines often run on heavy fuel oil and operate for thousands of hours between maintenance.
Industrial compressors and power generators also use piston-type internal combustion engines fueled by diesel, natural gas, or dual-fuel systems. While bore sizes and piston speeds differ from road engines, their core function remains converting combustion pressure into mechanical work.
Suppliers for these industries must understand varied duty cycles, standards, and materials to provide compatible piston kits and components. Whether in haul trucks or backup generators, piston quality is key to engine reliability.
FAQ
Q1: How long should pistons last in a well-maintained diesel truck engine?
A1: In modern heavy-duty diesel engines, pistons typically last 500,000–1,000,000 km or several thousand hours before overhaul, assuming proper oil, fuel, and cooling maintenance. Severe-duty use—such as stop-and-go delivery, heavy towing, or extended idling—can shorten this lifespan. Highway or steady-load operation tends to extend piston life. Fleets should follow OEM overhaul intervals and watch for warning signs like rising oil consumption, increased blow-by from the crankcase vent, and gradual power loss.
Q2: Can I replace just one damaged piston instead of all of them?
A2: While it's technically possible to replace a single piston, best practice in most internal combustion engine pistons-especially high-mileage diesels-is to replace pistons as a matched set. A single new piston may differ slightly in weight, dimensional tolerance, and wear pattern from the remaining originals, potentially affecting balance and future reliability. Always inspect all cylinders, liners, and connecting rods before deciding.
Q3: Do I need to change connecting rods when I upgrade to stronger pistons?
A3: Stronger or heavier pistons may require upgraded connecting rods, especially in turbocharged or tuned engines running higher boost and cylinder pressure. The rod, big-end bearings, and crankshaft all see the extra load generated by new pistons and must handle it without failure. During a major rebuild, inspecting rods for stretch, twist, and cracks is essential. Many shops choose to replace rods and pistons together in high-stress applications to avoid mismatched strength in the cranktrain.
Q4: What happens if piston-to-bore clearance is too tight or too loose?
A4: If clearance is too tight, the piston can expand when hot and seize in the cylinder, causing severe engine damage quickly. If clearance is too loose, piston slap noise occurs at startup, and wear increases, leading to loss of compression and oil control. Machinists must follow the manufacturer's clearance specs carefully, as steel, aluminum, and coated pistons expand differently with heat.
Q5: Can mixing piston brands or designs cause problems in the same engine?
A5: Mixing different piston brands, designs, or compression heights in one engine is risky and can upset balance, compression ratio, and combustion characteristics across cylinders. Even small differences in crown shape or bowl volume change how air and fuel burn, especially in modern diesel engines with precise fuel injection strategies and ECM calibration. Use a complete matched set of pistons from a trusted supplier and verify they meet OEM specifications for that engine model.
