Caterpillar C7 Water Pump: Buying, Maintenance & Replacement Guide

Key Takeaways

• The Caterpillar C7 water pump is critical to engine cooling and preventing overheating on CAT C7 engines used in trucks, buses, RVs, industrial equipment, construction equipment, and marine applications.
• Common signs of a failing C7 water pump include coolant leaks, bearing noise, high engine temperature, frequent low-coolant warnings, and steam or sweet-smelling vapor from the exhaust.
• Customers can source new and premium aftermarket C7 water pumps, directly from Fab Heavy Parts with fast shipping from U.S. warehouses.
• This guide explains how to identify the correct pump by part number and engine serial number, review basic replacement steps, and extend water pump life with better cooling-system maintenance.
• At Fab Heavy Parts, support is available before checkout to help confirm fitment and reduce costly returns or downtime.



Introduction to the Caterpillar C7 Water Pump

The Caterpillar C7 engine is an inline 6-cylinder diesel engine that became popular in the early 2000s and was used in many on-highway and industrial applications through around 2010. It is commonly found in medium-duty trucks and RVs, and the Caterpillar C7 engine is commonly used in heavy-duty applications where dependable power matters every day.



Caterpillar C7 engines are used in semi-trucks, buses, excavators, and tractors. The C7 engine is used in construction, marine, and industrial applications, and the C7 engine serves as a power unit for water pumps and dredges. That wide range of work is why the cooling system has to stay healthy.



The water pump is designed to prevent overheating by circulating coolant. In simple terms, it moves coolant through the engine block, cylinder head, and radiator so the engine stays in a safe temperature range during operation. Water pumps help maintain engine temperature during operation, especially when the vehicle is loaded, climbing grades, idling for long periods, or working in hot weather.



Fab Heavy Parts supplies reliable heavy-duty parts for CAT C7 engines, including new and premium aftermarket water pumps, gasket kits, and cooling components.

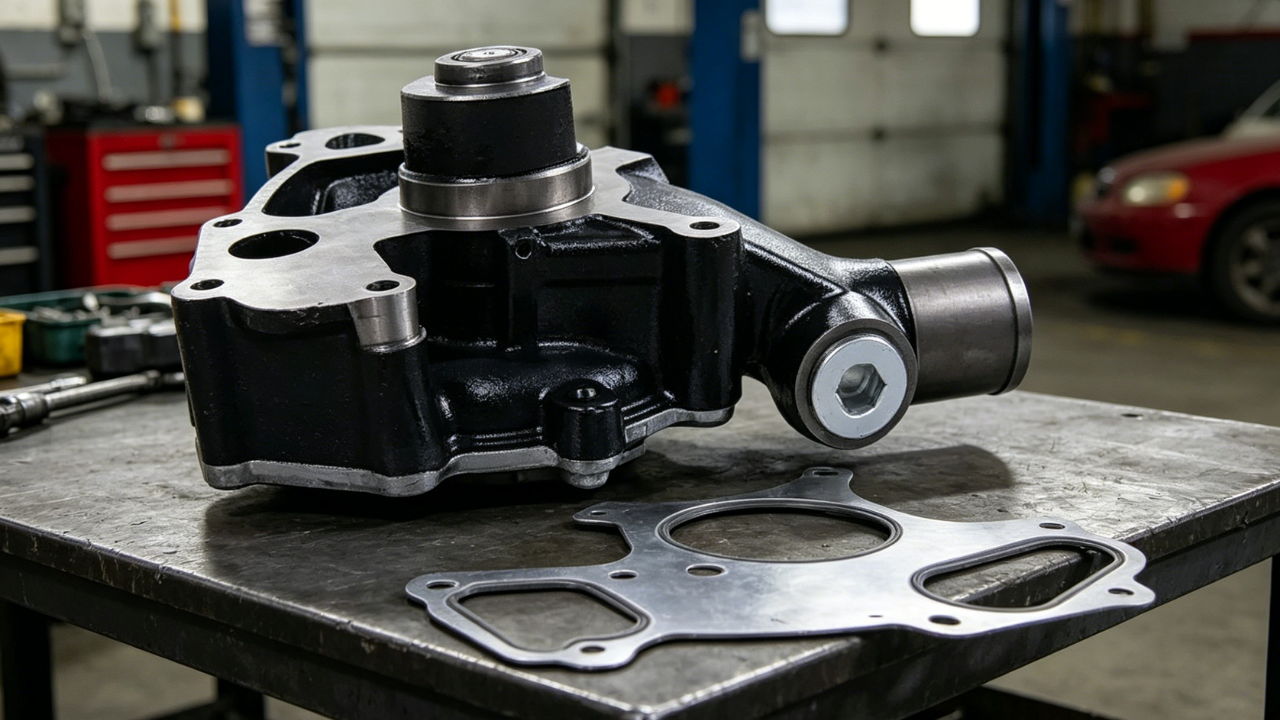

How the Caterpillar C7 Water Pump Works

The Caterpillar C7 water pump is located at the front of the engine. Depending on the exact C7 setup, the pump may be driven by the accessory belt, the gear train, or a related front-drive arrangement. The C7 water pump is belt-driven and weighs approximately 18 to 27 lbs in many common replacement configurations.



The main parts of a C7 water pump include:

Component	What it does
Impeller	Pushes coolant through the engine
Housing	Holds coolant pressure and supports the pump assembly
Shaft	Transfers drive force to the impeller
Bearings	Allow the shaft to spin smoothly
Seals	Keep coolant inside the pump
Pulley or gear	Connects the pump to the engine drive system

The C7 water pump features durable cast-iron construction, which helps it survive heat, vibration, and daily heavy-duty use. Caterpillar C7 water pumps utilize polished stainless-steel shafts to prevent corrosion, and many OEM water pumps are factory-tested and incorporate engineering upgrades for better service life.



On many C7 setups, the pump uses a pressed-on gear and a multi-groove pulley similar to the KWP4017 / 10R5407 style units used in freight and vocational trucks. CAT Reman part information for 10R-5407 also shows how important updated seals, shafts, bearings, and impellers are in these assemblies.



Here is the basic coolant flow path:

1. Coolant is pulled from the lower radiator area.
2. The water pump pushes coolant into the engine block.
3. Coolant flows around the cylinders and through the cylinder head.
4. The thermostat controls when coolant returns to the radiator.
5. The radiator removes heat before coolant returns to the pump.



The C7 engine prevents overheating by ensuring continuous coolant flow through the engine block. The cooling system allows for approximately 3.99 gallons of coolant in certain configurations, though actual capacity can vary by vehicle, radiator, hose routing, and equipment package.



The C7 engine cooling system has a top tank temperature of 108 degrees Celsius. That is why proper coolant, correct pressure, and good airflow are just as important as the pump itself. The C7 engine's cooling system is designed for large commercial and industrial applications, so it needs heavy-duty coolant, not light-duty shortcuts.



For many C7 engines, a 50/50 premixed heavy-duty coolant is the safest baseline. Always match the coolant to CAT or fleet recommendations, especially when using Extended Life Coolant or coolants meeting CAT EC-1 type requirements.



Common Signs Your CAT C7 Water Pump Is Failing

A failing water pump should never be ignored. Early detection can prevent head gasket failure, cracked cylinder heads, downtime, or a cracked engine block. A faulty water pump can lead to engine overheating, and overheating can cause a cracked engine block.



Watch for these signs:

• Coolant dripping from the pump weep hole
• Green, red, or orange coolant tracks on the front cover
• Puddles under the front of the engine after parking
• Frequent low-coolant warnings
• Steam or vapor near the engine compartment
• White steam or sweet-smelling vapor from the exhaust
• Visible wobble or play in the water pump pulley



Noise is another major warning sign. Grinding, squealing, or rumbling from the front of the engine can point to worn bearings or a misaligned pulley. This is common on older C7 water pumps, including 3126 & C7 3.75" pulley style pumps used in many medium-duty trucks.



Overheating may show up slowly at first. The dash gauge may creep above normal under load, the coolant warning light may come on, or the engine may derate or shut down on some 2004–2010 trucks with C7 engines. If the truck only overheats while towing, climbing, or idling in traffic, the pump may still be weak even if it has not fully failed.

Do not keep running a hot C7 engine. One short trip can turn a water pump repair into an engine repair.



Choosing the Right Caterpillar C7 Water Pump (Part Numbers & Fitment)

CAT reused similar pump designs across C7, 3126, and some C9 applications. That makes correct identification very important before you order.



Common OE, reman, and cross-reference numbers include:

• CAT 10R5407
• 227-4299
• 227-4301
• 227-8843
• 352-2109
• Casting numbers like 203-6093, 226-6051, and 197-9581



Some older numbers, such as 227-4299, may be discontinued or replaced by updated numbers. That does not mean the pump is impossible to find. It means you should verify the latest replacement before checkout.



To confirm fitment, check these details:

Fitment detail	Why it matters
Engine serial number, or ESN	Confirms the exact engine build
Arrangement number	Helps match engine-mounted parts
Existing pump part number	Speeds up cross-reference matching
Casting number	Useful when the label is missing
Pulley size	Many 3126 & C7 engines use a 3.75" pulley
Gear or belt drive style	Prevents ordering the wrong configuration

Fab Heavy Parts offers expert phone and email support to confirm the correct C7 water pump and water pump gasket kit before checkout. Sending clear photos of the old pump, pulley, gear, and mounting surface can help support verify the part faster.



The Caterpillar C7 water pump is widely used across various heavy industries, so there are several similar-looking pumps in the market. A quick compatibility check can save a full day of downtime.



New vs. Aftermarket vs. Reman CAT C7 Water Pumps

Buyers usually compare three things: price, warranty, and lead time. The right choice depends on how the truck or machine is used.



New OEM-equivalent aftermarket pumps are often the best fit for most on-highway C7 applications. These pumps are built to meet or exceed CAT-style performance requirements, and they can cost up to 30–50% less than dealer pricing in many cases.



Remanufactured pumps start with an original core. The pump is disassembled, inspected, cleaned, machined where needed, and rebuilt with new wear parts such as bearings, seals, and often an impeller. Reman pumps may include a core charge, which is credited when the old pump is returned.



OEM pumps can be a strong choice for fleets that prefer dealer programs or exact factory channels. Many OEM water pumps are factory-tested and incorporate engineering upgrades, but they may cost more or have longer lead times.



Here is a simple comparison:

Option	Best for	Notes
New aftermarket	Most owners and fleets	Good price, fast availability
Remanufactured	Cost control and sustainability	May require core return
OEM	Dealer-managed fleets	Often higher price

Many aftermarket and reman units come with a 1-Year Warranty against defects. Fab Heavy Parts works to match or exceed common warranty expectations where possible.



Verification successful of both the part number and supplier reputation helps avoid very cheap, low-quality pumps that can fail early. A low price is not helpful if the bearing fails, the seal leaks, or the impeller does not move enough coolant.



Installing a Caterpillar C7 Water Pump (Overview)

This section is a practical overview, not a full repair manual. Always follow CAT service literature, vehicle manufacturer procedures, and shop safety rules. Torque specs, belt routing, and access steps can vary by chassis.



Before starting:

• Park on level ground and let the engine cool.
• Disconnect the batteries.
• Drain coolant into a clean container for reuse or proper disposal.
• Inspect fan belts, tensioner, idlers, hoses, clamps, and fan clutch.
• Confirm the new pump, gasket, and pulley style match the old unit.



Main removal steps usually include:

1. Remove the fan shroud if needed.
2. Loosen the belt tensioner.
3. Remove the accessory belt.
4. Unbolt the fan hub or related front components if access is limited.
5. Remove the old C7 water pump.
6. Remove the old gasket and clean the mounting surface.



Installation highlights:

• Clean gasket surfaces carefully without gouging the metal.
• Test-fit the new pump before applying sealant or installing the gasket.
• Use the correct new gasket or water pump gasket kit.
• Torque bolts to the proper spec in a cross pattern.
• Reinstall the pulley, belt, fan, and shroud.
• Refill the coolant with the correct mixture.



After installation, bleed air from the cooling system, check for leaks, and recheck belt tension and coolant level after the first few hours of operation. Air pockets can cause hot spots, poor heater performance, and cavitation inside the pump.



Maintaining Your CAT C7 Cooling System for Longer Pump Life

Good cooling-system maintenance directly extends water pump life on C7 engines used in stop-and-go delivery, vocational service, long-haul routes, construction, marine duty, and industrial work. Heat, dirt, vibration, and poor coolant quality all shorten pump life.



Use these habits to reduce failures:

• Check coolant level at every pre-trip inspection.
• Look for stains around the pump, thermostat housing, hoses, and radiator.
• Inspect the belt path for misalignment.
• Listen for bearing noise during service.
• Pressure-test the system when leaks are hard to find.



A full coolant service is often recommended roughly every 2 years or 100,000–150,000 miles, or according to CAT, fleet, or coolant supplier guidance. Industrial and marine engines may follow hour-based intervals instead.



Use heavy-duty coolant that meets CAT EC-1 or equivalent specifications when required. Avoid mixing different coolant types unless the system is fully flushed. Mixed coolants can reduce corrosion protection, create deposits, and shorten seal life.



Whenever a water pump is replaced, inspect the belt, idlers, and tensioner. Replace worn parts that show cracks, fraying, rough bearings, or weak spring tension. A bad tensioner can side-load the pump shaft and cause early bearing failure.



Construction fleets should also clean the radiator and charge-air cooler on a schedule. Dust, chaff, mud, and jobsite debris reduce airflow. Higher operating temperature adds stress to the water pump, thermostat, fan clutch, hoses, and head gasket.



Ordering a Caterpillar C7 Water Pump from Fab Heavy Parts

Fab Heavy Parts focuses on high-quality heavy-duty components, fast shipping, and clear online fitment information on the website, with a security service used to protect the website for Caterpillar C7 engines. The goal is simple: help you get the right part the first time.



In some cases, a page may be displayed while the site is performing security verification and verifies each visitor to help block a bot and other malicious bots.



Typical online ordering is easy:

1. Search by engine model, such as CAT C7.
2. Search by part number, such as 10R5407.
3. Search by equipment make and model when available.
4. Review fitment notes, photos, and specifications.
5. Add the correct pump and gasket kit to cart.
6. Complete checkout.



Fab Heavy Parts customer support can help with pre-purchase compatibility checks and post-purchase installation questions. If your truck is down, contact support with your ESN, old part number, and photos before placing the order.



FAQ

Q1: How do I confirm I'm ordering the correct Caterpillar C7 water pump?

A1: Locate the engine serial number, or ESN, on the C7 data plate. It is often found on the valve cover or on the side of the engine block, depending on the engine and chassis. Cross-check the ESN, existing water pump part number, and any casting number with the listing on FabHeavyParts.com. You can also send clear photos of the old pump, gear, and pulley to Fab Heavy Parts support before ordering.



Q2: Should I replace anything else when I change my C7 water pump?

A2: Yes, it is smart to replace the water pump gasket kit, thermostat, and any suspect hoses or clamps while the cooling system is open. This can save labor later because many of these parts are already accessible. Inspect the belt, idler pulleys, and belt tensioner for cracks, fraying, or bearing noise. On high-mileage engines, a full coolant flush and fresh coolant are often worth doing at the same time.



Q3: How long does it take to replace a CAT C7 water pump?

A3: A professional shop may take about 3–6 hours, depending on the truck or equipment layout. Some chassis require fan, shroud, or accessory removal, which adds time. DIY owners with basic tools may need longer, especially on tight 2004–2009 on-highway trucks. Following torque specs and bleeding the cooling system correctly is more important than rushing the job.



Q4: What if my engine still overheats after installing a new water pump?

A4: If the engine still overheats, look beyond the pump. Common causes include a stuck thermostat, plugged radiator, weak fan clutch, low coolant level, air pockets, or a head gasket issue. Start by verifying coolant level, checking for leaks, and confirming the fan engages properly. If overheating continues, contact a qualified diesel technician or Fab Heavy Parts support because running a C7 hot can quickly cause expensive damage.
