Key Takeaways
- An intake manifold directs air, or an air-fuel mix on some engines, into each cylinder so combustion can happen evenly.
- Manifold design affects power, torque, fuel economy, emissions, cold starts, and engine response under load.
- Heavy equipment manifolds face heat, boost pressure, vibration, corrosion, and soot, so cracks, leaks, and carbon buildup are common.
- Choosing the right replacement manifold by OEM spec, material, engine family, and fit is critical. Fab Heavy Parts specializes in heavy-duty intake manifolds and related hardware.
Introduction: What an Intake Manifold Does in Your Engine
A manifold is like the air traffic controller of an engine. It does not create power by itself, but it tells air where to go, how fast to move, and how evenly to reach each cylinder.
In a truck, bus, excavator, loader, or tractor, there are usually two main manifolds. The intake manifold brings fresh air into the engine. The exhaust manifold collects burnt gases and sends them out toward the turbocharger and exhaust system. This guide focuses on the intake side.
That matters in the real world. A healthy intake manifold helps with pulling power, cold starts, fuel bills, emissions control, and downtime.
At Fab Heavy Parts, we focus on heavy-duty and off-highway engine components, including intake manifolds, gaskets, sensors, and mounting hardware. In this guide, we will cover how the intake manifold works, what parts it includes, common failure signs, how to select a replacement.
Intake Manifold Basics in Heavy-Duty Engines
The intake manifold is usually a cast or fabricated passage bolted to the cylinder head. Its job is to route filtered air, or an air-fuel mixture on older gasoline engines, to each cylinder.
Here is what the intake manifold actually does:
- It distributes incoming air as evenly as possible to every cylinder.
- It helps maintain air velocity, which affects combustion quality and engine response.
- It supports sensors such as the MAP sensor and intake air temperature sensor.
- It may include EGR passages, mixer areas, heater grids, or boost reference ports.
- It works with the turbocharger and charge-air cooler on most modern heavy-duty engines.
- It is different from the exhaust manifold, which handles hot, expanding exhaust gases from the cylinders.
Naturally aspirated engines pull air in using engine vacuum and piston movement. Turbocharged and aftercooled engines force air into the intake system under pressure. Most modern trucks and heavy equipment are turbocharged, so the intake manifold must handle boosted pressure, heat cycles, and vibration.
Modern diesel intake manifolds generally carry air only. Fuel is injected directly into the cylinder. Gasoline port-injection engines often use the intake manifold to carry an air-fuel mixture, so gasket design and fuel resistance can be different. This is one reason diesel and gasoline manifolds are not usually interchangeable.
Intake manifolds deliver air-fuel mixture to engine cylinders in many gasoline applications, while modern diesel intake manifolds mainly deliver air. Exhaust manifolds collect exhaust gases from engine cylinders. Turbocharged engines link intake and exhaust manifolds for efficiency because exhaust energy drives the turbo, and the turbo feeds compressed air back into the intake side.
Variable intake manifolds optimize airflow at different engine speeds. They are common in many passenger cars and pickups, especially from the late 1990s through the 2020s. In heavy-duty commercial diesel engines, variable geometry inside the intake is less common, but the idea is growing as emissions and efficiency demands increase.
Manifolds are crucial for optimal engine performance and fuel efficiency. If the intake manifold leaks, cracks, plugs with soot, or sends more air to some cylinders than others, the whole engine suffers.

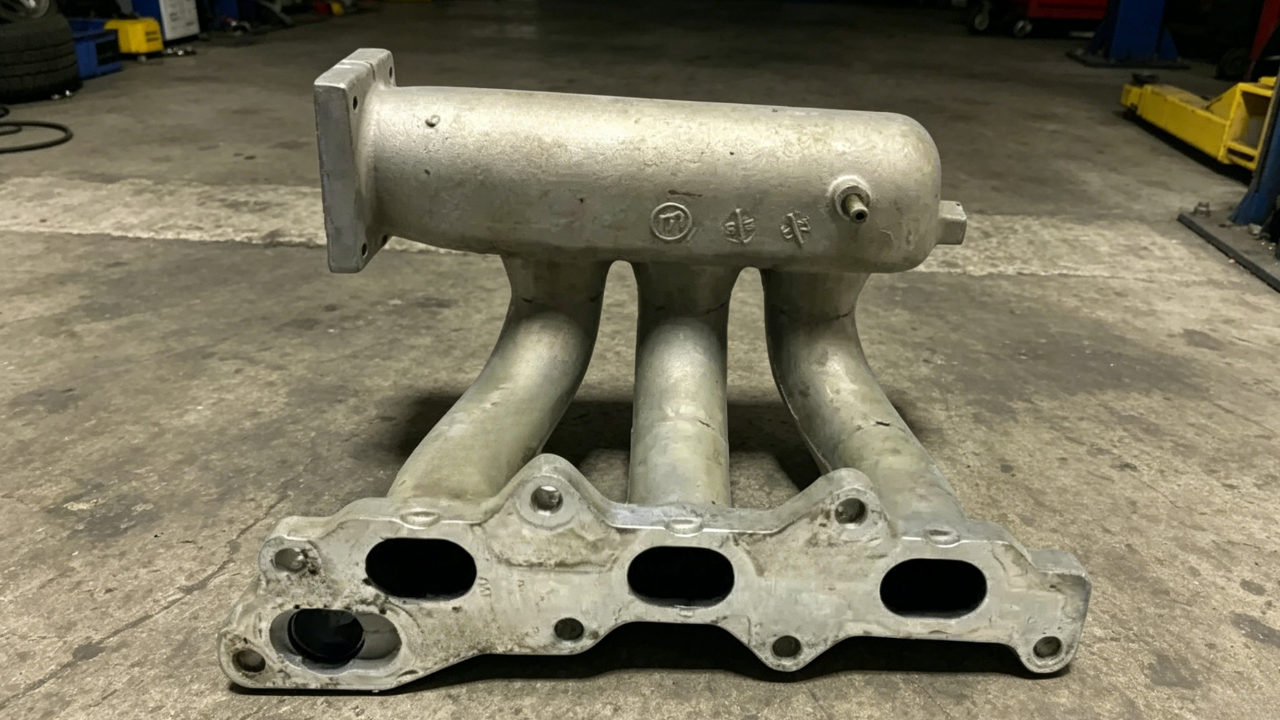

Main Components and Features of an Intake Manifold
Not all intake manifolds look the same. A late-model highway tractor manifold may have EGR mixing passages and multiple sensor ports, while an older off-road diesel may use a simpler cast housing.
Still, most heavy-duty intake manifolds share these key features:
- Plenum: The main chamber that receives air from the turbocharger, charge-air cooler, or intake pipe. A good plenum helps stabilize pressure pulses.
- Runners: The individual passages that carry air from the plenum to each intake port.
- Mounting flanges: The flat sealing surfaces where the manifold bolts to the cylinder head. Warped flanges often lead to gasket failure.
- EGR inlets or passages: Many modern diesel engines route cooled exhaust gas back into the intake to control NOx emissions.
- Sensor bungs: Threaded or machined locations for the MAP sensor, intake temperature sensor, or other monitoring devices.
- Boost line ports: Small ports that provide pressure reference signals for engine control or turbo systems.
- Brackets and bosses: Mounting points for wiring, fuel lines, heater grids, or support hardware.
- Gaskets and seals: These keep boost pressure inside the system and keep dirt, soot, and oil from escaping at joints.
Materials matter, especially in heavy-duty service. Cast iron is strong, stable, and handles heat well, but it is heavy. Cast aluminum is much lighter and sheds heat faster, but it must be engineered well to avoid warping or cracking. High-temp steel and fabricated aluminum are also used in some upgraded or specialty designs.
Heavy-duty engines often favor durability over extreme weight savings. A work truck does not need a fragile part that saves a few pounds but fails under load. It needs a manifold that seals, fits, and survives long heat cycles.
Manifold design is also about shape. Runner length, cross-section, bends, and plenum volume all affect how air moves. Longer and narrower runners can support low-end torque. Shorter and larger runners can help high-speed airflow. On a diesel work engine, even distribution and low pressure drop are often more important than peak horsepower.
A real-world example is the late-2000s Cummins ISX family. These engines often use cast intake manifold designs with EGR mixing, a grid heater area, and multiple sensor or reference ports. Caterpillar C15 intake manifold designs also show how heavy-duty engines rely on strong castings, large sealing surfaces, and careful routing for consistent airflow.
How the Intake Manifold Affects Performance and Emissions
Airflow inside a manifold is a lot like water moving through a network of pipes. Smooth, balanced flow helps every outlet get what it needs. Sharp turns, leaks, and blocked passages create losses.
Here is how the intake manifold affects the engine:
- Plenum volume can smooth pressure pulses. If the plenum is too small, airflow may become unstable. If it is too large, response can feel lazy.
- Runner length and shape affect the torque curve. Work trucks usually need strong low- and mid-range torque more than high-rpm power.
- Internal restrictions reduce boost pressure at the cylinder, even if the turbo is working hard.
- Uneven air distribution can make one cylinder run hotter or leaner than the others. That can increase NOx emissions and may risk piston, valve, or head gasket damage.
- The MAP sensor reads intake manifold pressure. On electronically controlled engines, the ECM uses that data to meter fuel, manage boost, and protect the turbocharger.
- EGR, diesel particulate filters, and SCR systems are connected to intake health. A clogged or cracked intake manifold can increase soot, raise exhaust temperatures, contribute to DPF plugging, and increase DEF use. The U.S. EPA explains how diesel particulate filters depend on proper engine operation to control emissions.
This is why a small boost leak can turn into a bigger problem. The engine may smoke, the turbo may work harder, and emissions components may see more stress than they were designed for.
Common Intake Manifold Problems and Symptoms
Manifolds wear out because they live in a harsh place. They face heat cycling, vibration, corrosion, oil mist, and soot. On-road tractors can run hundreds of thousands of miles, while off-highway machines may idle, lug, and work in dust for thousands of hours.
Common intake manifold problems include:
- Cracked castings: Cracks often appear near bolt bosses, sensor ports, EGR areas, or sharp corners.
- Warped flanges: A warped sealing face can cause a gasket leak even if the gasket is new.
- Blown gaskets: Heat cycles flatten or harden gasket materials over time.
- Stripped bolt holes: Over-torquing, corrosion, or repeated service can damage threads.
- Internal carbon buildup: EGR soot can mix with oil vapor and form sticky deposits.
- Oil contamination: Crankcase ventilation can carry oil mist into the intake, which makes soot stick faster.
- Damaged sensor bosses: A loose or cracked sensor port can leak boost or give bad readings.
- Loose brackets: Vibration can break support points and lead to cracks around mounting bosses.
Typical driver or operator symptoms include loss of power under load, hissing noises under boost, black smoke, increased fuel use, rough idle, and check-engine or fault codes related to intake pressure.
Turbocharged diesel intake leaks deserve special attention. If boost leaks before the cylinders, the effective air charge drops. The turbo may overspeed trying to compensate, and the ECM may command fueling that the air system cannot support.
Technicians should inspect the intake manifold during major services. For many highway tractors, a visual check around 250,000 to 300,000 miles is a smart practice. Off-highway equipment should be checked at scheduled hour intervals, especially when the machine has high idle time, heavy EGR use, or dusty operation.
Look for soot trails, oil mist around joints, loose fasteners, damaged studs, cracked areas, and discolored zones near heat sources. Replacing studs, bolts, and gaskets proactively can prevent repeat labor.
Selecting and Replacing an Intake Manifold for Heavy Equipment
Not all manifolds are interchangeable. A part that looks close may have the wrong bolt pattern, wrong sensor port, wrong EGR passage, or wrong flange depth. That can cause downtime, returns, and repeat failures.
Before you order, check these details:
- Engine make and model
- Engine serial number or VIN
- Model year and emissions tier
- Turbocharged or naturally aspirated configuration
- EGR or non-EGR setup
- Sensor port locations and thread sizes
- Bolt pattern and flange shape
- Gasket style and sealing surface condition
- Related parts, such as heater grids, studs, brackets, and pressure lines
Matching OEM part numbers or trusted cross-reference numbers is important. This is especially true for mixed fleets, older equipment, and engines that were rebuilt or swapped in the past.
Installation quality matters as much as part quality. Use the correct gasket set, clean the mating surfaces, inspect the cylinder head face, and follow proper torque specs. Tighten fasteners in the recommended sequence so the flange seats evenly and does not warp.
Fab Heavy Parts helps customers identify the right intake manifold for popular heavy-duty engine lines, including Cummins, Detroit Diesel, Caterpillar, Volvo, and PACCAR applications. If you are unsure, our team can help with part lookup, VIN support, engine serial number matching, and cross-referencing older numbers.
After installation, run a quick checklist:
- No boost leaks under load
- Correct MAP and intake temperature readings
- No unusual whistling
- No exhaust smell in the cab
- No oil or soot trails around the gasket
- Short road test, loaded test, or dyno pull when possible
Choosing the correct manifold upfront helps avoid installation headaches and protects the rest of the air system.
FAQ
Q1: How often should I inspect or service my intake manifold?
A1: The intake manifold is not a typical wear item like an air filter or oil filter, but it should be inspected during major services, turbo repairs, EGR service, or if boost pressure issues arise. For on-road tractors, visual checks every 250,000 miles are practical. Off-highway equipment should follow manufacturer hour schedules and be checked sooner if idling or working in dusty conditions. Look for soot trails, oil mist around joints, loose fasteners, cracks, and discoloration near hot areas. Internal carbon or oil buildup may require cleaning, especially with heavy EGR use.
Q2: Can I repair a cracked intake manifold, or should I replace it?
A2: Small external cracks in cast iron or aluminum can sometimes be welded or patched. However, such repairs often don’t last under repeated heat, vibration, and boost pressure cycles. For critical heavy-duty use, replacing with a properly engineered manifold is usually safer and more cost-effective. Welding cast materials requires specialized skill and may void warranties or fail inspections if done poorly. Always weigh repair costs against downtime, repeat labor, and potential engine damage. A temporary fix might get a machine home but isn’t the best long-term solution.
Q3: Do diesel and gasoline engines use intake manifolds the same way?
A3: Both engine types use intake manifolds to route air, but they do so differently. Gasoline port-injection engines mix fuel with air in the manifold, while modern diesel engines inject fuel directly into the cylinder. Diesel intake manifolds handle higher boost pressures from turbochargers and face more soot and EGR deposits, increasing contamination and stress. These differences affect manifold design, materials, and gasket types. Always match the manifold to the exact engine family, fuel type, and emissions setup.
Q4: Is porting or polishing my intake manifold worth it on a work truck?
A4: Porting and polishing can improve airflow in performance builds, but gains on stock or mildly tuned work trucks are usually small. For heavy-duty use, sealing, fit, strength, and reliability matter more than high-rpm gains. Aggressive porting can thin walls or disturb flow, causing hot spots or sealing issues under load. Before modifying a manifold, ensure basics are right: a sound manifold, clean air filters, good gaskets, correct torque, and a healthy turbo and charge-air cooler system.
Q5: How can Fab Heavy Parts help me find the right intake manifold?
A5: Fab Heavy Parts assists with part number lookups, engine serial number matching, VIN-based support, and cross-referencing older or discontinued numbers. This is especially helpful for rebuilt, repowered, or modified equipment. We provide intake manifolds, gaskets, sensors, and related hardware for trucks, buses, agricultural, and construction machinery. Visit fabheavyparts.com to browse parts, request quotes, or get expert help. Choosing the right manifold upfront helps prevent leaks, fitment problems, downtime, and repeat repairs.
