Key Takeaways
- Automotive wiring harnesses are the backbone of a vehicle’s electrical system, transmitting power and signals between sensors, electronic control units, lighting, and controls.
- The main types of wiring harnesses include the engine wiring harness, main wiring harness, body wiring harness, chassis wiring harness, floor harness, door harness, HVAC harness, ADAS harness, antenna harness, and EV high-voltage harness.
- Choosing the right new wiring harness improves safety, reliable connections, smooth operation, and optimal performance.
- Fab Heavy Parts focuses on durable, OEM-grade harnesses and electrical components for fleets, repair shops, and serious DIY car owners.
Introduction: Why Automotive Wiring Harnesses Are So Important Today
Modern vehicles rely on complex electrical systems. Automotive wiring harnesses route electrical power and control signals to every component, from connecting headlights and brake lights to air conditioning, audio systems, display screens, and advanced driver assistance systems.
Modern cars can have up to three miles of wiring, including body harnesses. Modern cars can have up to three miles of wiring because today’s car has more sensors, electronic components, and safety systems than older vehicles.

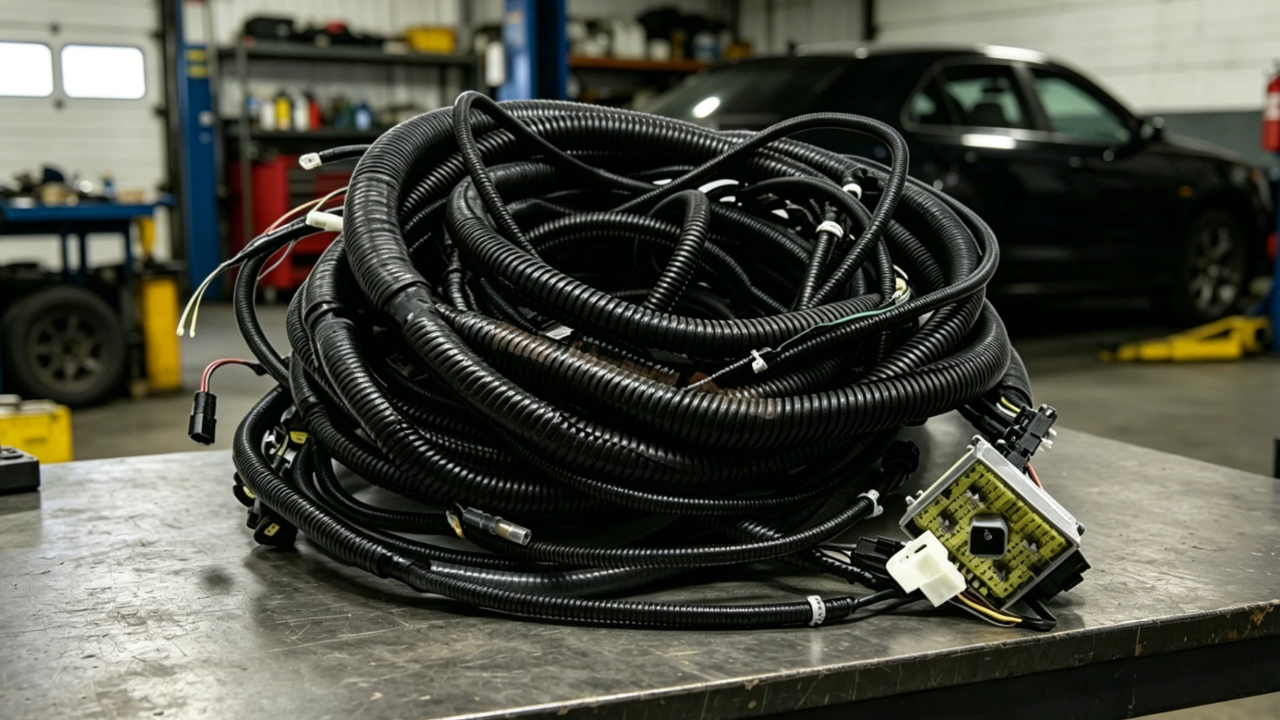

A wiring harness is an organized bundle of wires, cables, connectors, terminals, and protective covers. Wiring harness designs save space by consolidating individual wires into bundles, while effective harness designs reduce overall vehicle weight and improve fuel efficiency.
What Is an Automotive Wiring Harness?
An automotive wiring harness is a structured wiring assembly built for a specific area of a vehicle. It may carry power, ground, signals, and data lines for various components.
Wiring harnesses bundle wires in protective sleeves to prevent friction and wear. High-quality insulation reduces fire risks from overheated or damaged wires. Color-coded wires and standardized connectors ease troubleshooting of electrical issues.
Integrated wiring harnesses simplify vehicle manufacturing by allowing quick installation. Wiring harnesses use shielding to prevent electromagnetic interference in digital systems, especially near cameras, radar, GPS, and electronic control units.
Main Types of Wiring Harnesses in a Car
Automotive wiring harnesses are categorized by location and function within the vehicle. Names vary by brand, but these are the core harnesses most technicians see.
|
Harness type |
What it does |
|
Engine harness |
Links engine components, sensors, and ECU |
|
Main harness |
Connects major sub-harnesses |
|
Body/chassis harness |
Supports lighting, rear systems, safety |
|
Floor harness |
Runs low through the cabin |
|
Dash/interior harness |
Powers controls and displays |
|
Door harness |
Runs windows, locks, mirrors |
|
HVAC harness |
Controls climate systems |
|
ADAS harness |
Supports safety sensors |
|
EV high-voltage harness |
Manages electric drive power |
Engine Compartment / Engine Wire Harness
The engine harness connects the battery to essential components, including the starter motor, charging system, ignition coils, fuel injectors, temperature sensors, and various engine components.
The engine wiring harness sends signals between the ECU and various sensors. It sends data to the engine control unit for engine control, fuel injection, ignition timing, fuel and air mixture, and the car’s performance.
Automotive wiring harnesses must handle extreme temperatures and vibrations in engine bays. The engine wiring harness must withstand high temperatures and vibrations, oil, cold temperatures, and harsh conditions in the engine compartment. It may also link ignition coils to spark plugs through related ignition wiring.
Main Harness / Powertrain Harness
The main wiring harness connects various sub-harnesses in vehicles. The main harness is crucial for vehicle electrical system functionality and usually ties the battery cables, fuse box, engine, transmission, and electronic control units together.
The main harness powers most dashboard components, including dashboard instruments, warning lights, indicator lights, and some control switches. In trucks, it may also support PTO wiring, trailer controls, and other components.
When fire, corrosion, or crash damage affects the main wiring harness, replacement is often safer than patching many wires.
Body Wire Harness
The body wiring harness runs through the vehicle’s body. It powers interior lights, tail lamps, brake lights, turn signals, trunk release, door locks, and convenience features.
The body wire harness connects essential safety features in vehicles. The body wire harness provides power to the vehicle’s sound system and interior lights. The body wire harness helps prevent electrical shorts in vehicles by keeping circuits routed, protected, and grounded correctly.
Water leaks and road salt can corrode rear connectors, causing lighting faults or fuel gauge issues.
Chassis Wiring Harness and Floor Harness
The chassis wiring harness runs along the vehicle’s chassis. The chassis harness connects the fuel pump and rear lighting, and may also carry ABS, trailer, and underbody wiring.
The floor harness sits inside or near the floorpan. It often serves rear power windows, seat heaters, rear speakers, fuel pump wiring, and airbag wiring. Wet carpets, mud, and vibration can damage this harness.
Interior / Dashboard Harness
The dashboard wire harness powers instruments like speedometers and GPS. It also supports infotainment, air conditioning controls, display screens, USB ports, dashboard instruments, warning lights, and steering wheel switches.
Modern dashboard harnesses carry CAN bus and other data wiring. Cutting into them for aftermarket accessories can cause warning lights, communication faults, or disabled safety systems.
Door Harness
A door wire harness operates power windows and locks in vehicles. It also connects mirror motors, mirror heaters, keyless entry, side airbags, and blind-spot indicator lights.
Door harnesses require flexibility to accommodate constant opening and closing. Broken conductors inside the rubber boot can cause intermittent windows or door locks.
HVAC / Air Conditioning Harness
The HVAC wire harness connects components for climate control in vehicles. It links blower motors, resistor packs, actuators, pressure sensors, temperature sensors, and air conditioning compressor controls.
Common faults include melted blower connectors, corroded pressure sensor wiring, and failed resistor plugs.
Safety, Sensosr, and ADAS / Autonomous Driving Harnesses
Safety and control harnesses are dedicated to critical systems like airbags and anti-lock braking. These harnesses connect ABS sensors, airbags, TPMS, parking sensors, cameras, radar, and autonomous driving hardware.
Advanced driver assistance systems need clean signals and shielded cables. A damaged camera or radar harness can shut down lane keeping, automatic braking, or adaptive cruise.
Antenna, Infotainment, and Communicaction Harnesses
The antenna harness connects the antenna to the receiver for signals. It supports AM/FM, satellite radio, GPS, cellular, Wi-Fi, Bluetooth, and emergency call systems.
These harnesses use coaxial or shielded cables to protect weak signals from engine and alternator noise.
Electric Vehicle and Hybrid High-Voltage Harnesses
The high-voltage harness is specific to electric vehicles and manages high-voltage systems. Electric vehicles require high-voltage cables up to 1500V in some commercial applications, while many passenger EVs use 400–800V systems.
These orange cables connect the battery, inverter, motor, charger, and DC-DC converter. Only trained technicians should service them because the safety risk is serious.
Common Causes of Wiring Harness Failure in Vehicles
Even good harnesses fail. Main causes include corrosion, heat, vibration, chafing, overload, poor installation, and mechanical stress.
Battery Terminal Corrosion and Moisture Intrusion
Corroded battery cables and fuse box terminals increase resistance. Symptoms include dim lighting, slow cranking, random warning lights, and stalling.
If corrosion spreads inside the copper, replacing the cable or harness section is usually the long-term fix.
Thermal Expansion, Heat, and Aging
High temperatures dry out insulation. Cold temperatures make plastic brittle. Over time, connectors loosen and wires crack.
Inspect the engine wiring harness during major engine work, especially on older trucks and severe-duty vehicles.
Wear, Vibration, and Chafing
Chafing happens when wiring rubs against metal brackets, frame rails, or seat mounts. Vibration from rough roads or diesel engines makes it worse.
Exposed copper can create shorts, blown fuses, or fires.
What Happens When a Wiring Harness Fails?
Harness failure can cause small problems or total shutdown. Because harnesses carry power and signals, diagnosis should be systematic.
Engine Shutting Down or Not Starting
A broken engine harness wire can cut power to ignition coils, injectors, or the engine control unit. If the vehicle stalls over bumps, suspect damaged wiring before replacing engine components.
Ignition, Charging, and Starting Problems
Faults between the battery, starter motor, alternator, and fuse box cause no-crank, low charging voltage, or repeated battery failure. Voltage-drop testing helps find the bad section.
Malfunctioning Lights, Windows, and Other Electrical Parts
Bad body, floor, dash, or door harnesses can affect power windows, lighting, locks, audio systems, sensors, and other electrical components.
Repeated blown fuses often point to shorted wiring, especially where accessories were added without proper protection.
Repairing vs. Replacing Automotive Wiring Harnesses
Minor damage can be repaired. Severe damage calls for a new wiring harness.
When a Harness Can Be Repaired Safely
Repair may work for one broken connector, one or two chafed wires, or a small corroded area. Use automotive-grade wire, sealed connectors, correct gauges, and heat-shrink tubing.
Do not twist wires together and tape them. Avoid DIY repairs on airbags, ABS, ADAS, or EV high-voltage wiring.
When It's Smarter to Install a New Wiring Harness
Install a new wiring harness after fire, rodent damage, heavy corrosion, melted insulation, or many broken circuits.
A vehicle-specific harness restores factory routing, connector fit, and reliable connections. Fab Heavy Parts can help match harnesses by year, model, engine, and application.
How to Choose the Right Harness for Your Vehicle or Fleet
Choose by year, make, model, engine, transmission, trim, options, and environment. Also check load capacity, connector style, shielding, insulation rating, and routing.
Work trucks may need tougher loom, extra circuits, and better abrasion protection. The right automotive wiring improves safety, uptime, and long-term serviceability.
FAQ
Q1: How do I know which wiring harness is causing my car's problem?
A1: Start with symptoms. Engine faults point to the engine harness or main harness. Lighting, locks, or windows point to body, floor, or door harnesses. A scan tool can help. Codes for several sensors on one branch often suggest wiring damage.
Q2: Is it safe to drive with a bad wiring harness?
A2: It is risky. A bad harness can cause engine shutdown, airbag faults, ABS faults, or electrical fire. Stop driving if you smell burning, see melted connectors, or keep blowing fuses.
Q3: Can I install a new wiring harness myself?
A3: Skilled DIY owners can replace simple door or body sections. Main harnesses, engine harnesses, ADAS harnesses, and EV harnesses are best left to professionals. Take photos, label connectors, and follow factory diagrams.
Q4: What's the difference between OEM and aftermarket automotive wiring harnesses?
A4: OEM harnesses match factory specifications. Quality aftermarket harnesses can also perform well when they use correct wire gauge, insulation, connectors, and routing. Avoid cheap unbranded harnesses with thin wire or weak terminals.
Q5: Can I add extra circuits or accessories safely?
A5: Small accessories need proper fuses. Large loads like winches, work lights, and inverters should use dedicated fused feeds, relays, and accessory harnesses. For fleets and work trucks, fabheavyparts.com can help plan durable wiring solutions built for real use.
