If you’ve owned a late-model truck, SUV, or sedan with a V6 or turbocharged engine, you’ve likely heard about oil filter housing problems. This guide helps DIY owners and technicians understand, diagnose, and upgrade oil filter housings on modern engines. Once a simple component, the oil filter housing is now a common source of oil leaks, coolant contamination, and costly repairs in vehicles from 2011 to 2023. Learn what an oil filter housing does, why factory units fail, and how to choose a durable replacement.
Key Takeaways
- The oil filter housing holds the oil filter element, routes engine oil under pressure, and often integrates an oil cooler and sensor ports on modern engines like the 2011–2023 Chrysler 3.6L Pentastar V6.
- Common failures include leaks at core plugs, brass sensor inserts, and base seals, which can lead to low oil pressure, overheating, cross contamination of oil and coolant, and catastrophic engine damage.
- Upgraded housings with improved O-rings, distortion resistant seals, and high quality materials dramatically reduce repeat leaks and extend service life.
- Universal housings often cause fitment problems, warning lights, and incorrect oil pressure readings because they don't match vehicle-specific sensor locations and flow rates.
- Fab Heavy Parts focuses on complete, vehicle-specific replacement housings designed for an easy, one-time repair rather than temporary fixes that lead to comebacks.

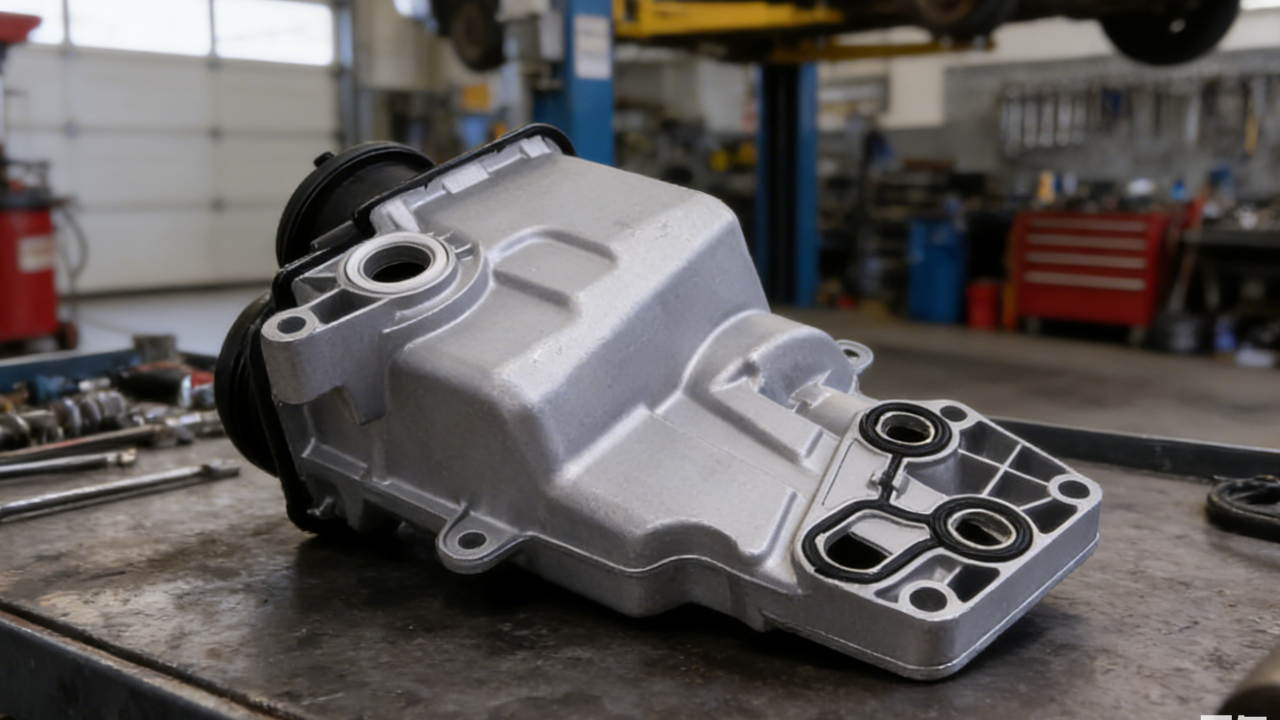

What an Oil Filter Housing Actually Does
Think of the oil filter housing as the “home and highway” for your engine oil. It’s the durable enclosure that holds the oil filter element in place while directing oil from the engine block, through the filter media to trap contaminants, and back into the engine’s oil galleries under controlled pressure. On modern vehicles, this component does far more than just hold a filter.
- On cartridge-style engines (common since the early 2010s), the housing contains only the replaceable filter element and gaskets. The permanent canister bolts to the engine block, and only the internal element changes during oil changes. This design reduces vehicle weight and increases recyclable content compared to older spin-on canister filters.
- Many 2010s engines, including the Pentastar V6, GM Ecotec 2.4L, and various European turbo engines, integrate the oil cooler directly into the housing. This heat exchanger allows coolant from the engine's cooling system to flow near the oil passages, managing oil temperrature without requiring a separate external cooler.
- The housing also serves as a sensor hub. Oil pressure switches and sensors thread directly into the housing and feed real-time data to the ECU and dashboard. This makes the engine oil filter housing a critical junction point for both mechanical and electronic engine management.
- Modern oil filter housing assembly designs operate under controlled high pressure, typically 40-80 psi during normal operation. The baseplate includes precisely engineered inlet and outlet ports that manage correct flow rate and direction back to bearings, camshafts, and other moving parts.
Modular oil filter housings contain the oil filter, multiple sensors, and serve as an oil cooler. Modular oil filter housings are becoming increasingly popular on modern vehicles, replacing the older spin-on style filters.
Common Oil Filter Housing Problems (And Why They Matter)
From 2011 onward, many OEM plastic housings developed a reputation for leaks and internal failure. The Chrysler 3.6L Pentastar V6, used in everything from the Dodge Charger to the Jeep Wrangler and RAM 1500, became especially notorious. These problems aren’t unique to one manufacturer, though. Similar issues affect GM Ecotec engines, some Volvo powertrains, and various Mercedes applications.
- Rear core plug leaks: Factory housings often use press-in core plugs that separate oil and coolant passages. Over time, heat cycling causes the plastic to micro-flex, allowing the plug to loosen and oil to seep down the back of the engine.
- Brass sensor insert seepage: The threaded inserts for oil pressure sensors and oil temperature sensor connections are pressed into the synthetic housing material. Without proper high-temp seals, engine oil weeps around the threads and insert shoulders.
- Base gasket failure: The seal between the housing and engine block can crush or take a permanent set after 50,000-100,000 miles, especially if over-torqued during previous service.
- Integrated oil cooler seal breakdown: Where oil and coolant passages meet inside the housing, failed seals allow cross contamination. This produces the telltale "chocolate milk" appearance in the coolant reservoir and is a classic sign of broader oil cooler failure symptoms.
Real-world symptoms drivers experience:
- Oil spots on the driveway directly under the engine
- Strong burning-oil smell, especially when the engine is hot
- Low-oil-level warnings despite no obvious external puddles
- Milky or discolored coolant indicating oil contaminates the cooling system
- Intermittent oil pressure warning lights on the dashboard
On engines like the Chrysler 3.6L Pentastar, a failed housing can quickly turn a $500-$1,200 repair into a multi-thousand-dollar engine replacement if oil starvation damages bearings or coolant contamination causes overheating.
Where the OEM Design Goes Wrong
OEMs optimized these housings for cost and weight, which left multiple weak points that only become apparent after years of heat and chemical exposure under harsh underhood conditions. Understanding these failure prone plastic housing designs helps explain why upgraded replacements are often the smarter long-term choice.
- Core plug issues: Factory housings used press-in core plugs without molded O-rings. When oil temperatures regularly exceed 200°F (93°C), the plastic eventually degrades and micro-flexes with each heat cycle. This allows the plug to loosen fractionally, creating a leak path that worsens over time.
- Oil-coolant cross-contamination risk: Some plugs that separate oil and coolant passages had no dedicated seal beyond the press-fit itself. When these loosen or deform, oil can enter the cooling system, causing premature radiator failure and cooling system problems. The reverse can also happen, with coolant entering the oil galleries and creating sludge.
- Sensor insert problems: The brass sensor inserts for oil pressure and temperature sensors are pressed into the synthetic housing material. Without proper high-temperature seals around the shoulder of these inserts, oil weeps out along the threads or around the base. This can also trigger false warning lights, confusing both drivers and technicians.
- Base seal distortion: Original oe seals and gaskets can crush or take a permanent set after 50,000-100,000 miles. This is especially common when the housing was over-torqued during a previous service or when sealing surfaces on the engine block are slightly warped. Once the seal loses elasticity, it cannot maintain an effective seal.
- Material limitations: The oe design used thin-walled plastic housings to save weight and cost. While adequate for typical driving, the long-term creep (permanent deformation) of plastic at high temperatures becomes a problem in engines that run hot, tow heavy loads, or operate in extreme climates.
How an Upgraded Oil Filter Housing Fixes These Issues
Fab Heavy Parts favors redesigned housings that don’t just copy OEM mistakes but solve them with better sealing and materials. High-quality aftermarket and upgraded OEM-equivalent housings tackle each known failure point directly, providing a complete repair that prevents future leaks rather than just delaying them.
Improved sealing on core plugs: Upgraded units use molded O-rings on every core plug, not just press-fit retention. Some designs employ ultrasonic welding or mechanical locking features to ensure the plug cannot loosen over time. These additional o rings maintain elasticity at high temperatures and provide a long lasting seal even after 200,000+ miles of operation.
Dedicated seals between oil and coolant passages: Rather than relying on tight tolerances alone, upgraded housings include a secondary high-temperature elastomer seal at any point where oil and coolant passages intersect. This redundant sealing dramatically reduces the risk of cross contamination even if the housing material warps or the primary seal degrades.
High-temp O-rings on brass sensor inserts: Upgraded units employ oil-resistant and heat-resistant elastomers around knurled brass inserts, typically rated to maintain elasticity beyond 250°F (121°C). These seals are often larger in diameter and installed with careful attention to compression, ensuring they do not extrude or lose contact over the lifespan of the vehicle.
Distortion resistant seals at the base: Many upgraded housings use multi-layer synthetic gaskets or seals designed to resist crushing and permanent set. These new gaskets often have a wider sealing surface (increased contact area with the engine block) to tolerate minor surface irregularities and installation errors. A robust seal at this junction point is critical for preventing oil leak issues.
Reinforced materials: Some upgraded plastics use additional glass fiber content or a different resin formulation with better thermal characteristics. This high temp synthetic housing material resists the creep and cracking that plague original units. The result is a housing engineered to withstand extreme conditions for the long haul.
Materials: Plastic vs. Aluminum Housings
Modern housings are often glass-filled nylon from the factory, but some aftermarket options convert to aluminum. Each approach has trade-offs that matter depending on your application and priorities.
Quality synthetic (glass-filled nylon) benefits:
|
Advantage |
Why It Matters |
|
Lighter weight |
Important for fuel economy and performance |
|
Matched thermal expansion |
Reduces stress at gasket interfaces |
|
Fast heat transfer |
Adequate oil cooling when properly engineered |
|
Lower cost |
More accessible for typical repairs |
|
Modern OEM glass-filled nylon housings are typically reinforced with 30-50% glass fiber by weight. When properly engineered, this synthetic material matches the thermal expansion rate of surrounding engine block materials and can transfer heat adequately for typical driving conditions. |
|
|
Aluminum housing benefits: |
|
|
Advantage |
Why It Matters |
|
Greater rigidity |
Less flexing under pressure and heat |
|
Reduced cracking risk |
More tolerant of over-torque during installation |
|
Superior thermal conductivity |
Better heat dissipation for high-performance use |
|
Perceived durability |
Preferred for heavy-duty and high-mileage applications |
|
However, low-quality aluminum conversions can create problems. If plastic housing warps is your concern, switching to aluminum seems logical. But poorly designed housings may route coolant flow differently than the OE design, potentially creating hot spots in the oil or cold spots in the cooler. This can lead to inadequate thermal management or stress at gasket interfaces. |
|
|
Fab Heavy Parts focuses on housings that match oe performance characteristics and flow rates, whether synthetic or aluminum. The brand avoids universal housings that compromise on fit and function to work on “most engines.” |
|
Vehicle-Specific vs. Universal Oil Filter Housings
From 2011 to 2023, engines like the Chrysler 3.6L Pentastar changed sensors, filter styles, and flow rates almost year by year. This creates significant compatibility challenges that many universal housings simply cannot address.
Why universal housings cause problems:
- Sensor ports may be in the wrong location or use incorrect thread pitches
- Bypass valve settings might not match your engine’s requirements
- Filter cartridge height and oil filter cap design can differ between model years
- Oil cooling system capacity may be inadequate or excessive for your application
Specific examples of generational differences:
The pentastar oil filter housings changed significantly across production years:
|
Year Range |
Key Differences |
|
2011-2013 |
Integrated oil temperature sensor with specific electrical connectors |
|
2014-2018 |
Revised filter cartridge height, changed cap design, moved sensor locations |
|
2019-2023 |
Some applications dropped temperature sensor, different filter media standards |
|
Installing a 2014-model housing on a 2018 engine might physically bolt on, but the sensor ports won’t align correctly, the oil filter element may not fit the filter cap, or the bypass valve opening pressure might be different. Any of these mismatches can trigger warning lights, cause oil pressure fluctuations, or worsen leaks. |
|
|
Fab Heavy Parts focuses on vehicle-specific housings matched to OEM part numbers, with correct filter height, correct pressure sensor thread and pinout, and proper flow characteristics for each year range. A 2017 Jeep Grand Cherokee with the 3.6L Pentastar requires a housing engineered specifically for that year and engine code, not a generic “fits many Chrysler products” component. |
|
This attention to distinct differences between model years is what separates reliable replacements from comebacks.
Installation Basics: Getting the Job Done Right
Even a perfect new housing will fail if installed poorly, over-torqued, or contaminated during assembly. Many repeat leaks after housing replacement trace back to installation errors rather than part defects.
High-level steps for a typical 2011-2020 Pentastar 3.6L housing replacement:
- Disconnect battery and allow engine to cool
- Drain coolant (the housing connects to the oil cooling system)
- Remove intake manifold (intake manifold gaskets needed for reassembly on most applications)
- Unbolt the old housing from the engine block
- Thoroughly clean the block sealing surface, removing all old gasket material
- Install the new housing with new gaskets and required gaskets for all connections
- Torque bolts in the specified sequence
- Refill coolant and engine oil to proper levels
- Bleed the cooling system to remove air pockets
- Start engine and check for leaks
Critical torque specifications:
The threaded mounting bolts on a typical housing should be torqued to approximately 8-10 ft-lb (96-120 in-lb), depending on the application. Over-torquing to 15-20 ft-lb can distort the housing plastic, compress seals unevenly, and create internal stress points that lead to cracks or seal failure within months.
|
Component |
Typical Torque Range |
|
Housing-to-block bolts |
8-10 ft-lb (96-120 in-lb) |
|
Sensor installations |
Hand-tight plus 1/4 turn |
|
Filter cap |
Per manufacturer spec |
|
Avoiding common mistakes: |
|
- Protect intake ports from debris when the manifold is removed
- Double-check that all old gaskets and O-rings are fully removed before installing
- Use a new oil pressure sensor or verify the existing correct oil pressure sensors are not corroded, since oil pump failure symptoms and housing-related pressure issues can appear very similar
- Apply light lubrication to O-ring seals during assembly for an effective seal
- Never cross-thread sensors into brass inserts
A complete housing from Fab Heavy Parts should come with new seals, cooler installed, and sensors seated and torqued. This factory assembled approach reduces assembly time by 30-60 minutes and eliminates the chance of forgetting a component during transfer from the old unit, while proper oil filter service and avoiding issues like a stuck oil filter during removal help ensure the repair lasts.
When to Replace Your Oil Filter Housing
Most housings begin showing subtle seepage between 60,000 and 100,000 miles. In hot climates or vehicles subject to heavy towing, failure can accelerate to 50,000 miles or less. By 120,000-150,000 miles, many aging housings develop significant leaks if not already replaced.
Clear warning signs that indicate replacement:
- Visible oil around the valley or back of the engine
- Coolant that looks oily or milky (indicating cross contamination)
- Frequent low-oil warnings despite no external puddles on the driveway
- Strong burning-oil smell after driving, especially from the engine bay
- Oil pressure warning light that flickers or illuminates intermittently
When gasket-only repair isn't enough:
Multiple repeat leaks after just replacing gaskets often indicate the housing body itself is warped, cracked internally, or has compromised oe weak points. At this point, a full replacement is more cost-effective and reliable than another gasket job.
Signs the housing body needs replacement, not only oil filters and seals:
- Hairline cracks or stress marks visible on the plastic
- Dark discoloration indicating heat damage
- Seepage at sensor inserts despite sensor replacement
- Previous coolant contamination that may have damaged internal seals
Vehicles that benefit from preemptive replacement:
Ram vehicles, Dodge Grand Caravan, Jeep Grand Cherokee, and Chrysler 300 models with the 3.6L V6 frequently benefit from a preemptive housing replacement when major intake work is already being done. The labor to remove and reliably replace the housing is primarily in the disassembly. Adding a housing replacement to an already-scheduled major service is cost-effective insurance against a future oil leak.
The cost of waiting too long:
Ignoring a leaking housing can lead to catastrophic engine damage. A slow leak that is not addressed may eventually lower the oil level to the point where the oil pump cavitates, starving critical bearings and camshaft journals of lubrication. Even a few minutes of oil starvation can cause spun bearings, scored cylinder walls, or broken crankshaft journals. Overheating from low oil or cooling issues, combined with faulty thermostat symptoms, can turn a $500-$1,200 housing repair into a $4,000-$8,000 engine replacement.
FAQ
Q1:Is it safe to keep driving with a leaking oil filter housing?
A1: Small oil seeps might not cause immediate failure but can worsen quickly, especially in hot weather or when towing. Leaks lower oil levels, risking lubrication loss to bearings and camshafts, increasing engine friction and heat. Oil dripping on hot exhaust parts can cause smoke or, rarely, fire. If you notice oil spots, burning smells, or low-oil warnings, have the vehicle inspected and repaired promptly. Avoid long trips or heavy loads until fixed. Replacing the housing is relatively affordable compared to engine rebuilds or replacements.
Q2: Can I just replace the gasket instead of the whole oil filter housing?
A2: On older engines with simple metal housings, gasket-only repairs were usually sufficient. However, for 2010s plastic housings, leaks often come from internal plugs, oil cooler seals, or hairline cracks—not just the base gasket. If the housing has over 70,000-100,000 miles or has leaked after a gasket change, a full replacement is more reliable. Inspect for cracks, warped surfaces, and sensor seepage; if present, replace the entire assembly.
Q3: How long does it take to replace an oil filter housing?
A3: For many V6 engines with the housing in the engine valley (like the 2011-2020 Pentastar 3.6L), professional repair usually takes 2-4 hours, depending on experience and condition. DIY repairs may take longer due to intake manifold removal and coolant handling. Using a complete, pre-assembled housing can save 30-60 minutes compared to swapping parts from the old unit, especially helpful for shops working on multiple vehicles.
Q4: How often should I check my oil filter housing for leaks?
A4: Inspect the housing at every oil change (about every 5,000-7,500 miles). Check for fresh oil around the base, back of the engine, and near coolant lines. Engines from 2011-2018 should be watched closely after 60,000 miles, as minor leaks often worsen. Early detection helps prevent major leaks and protects engine cooling and lubrication.
