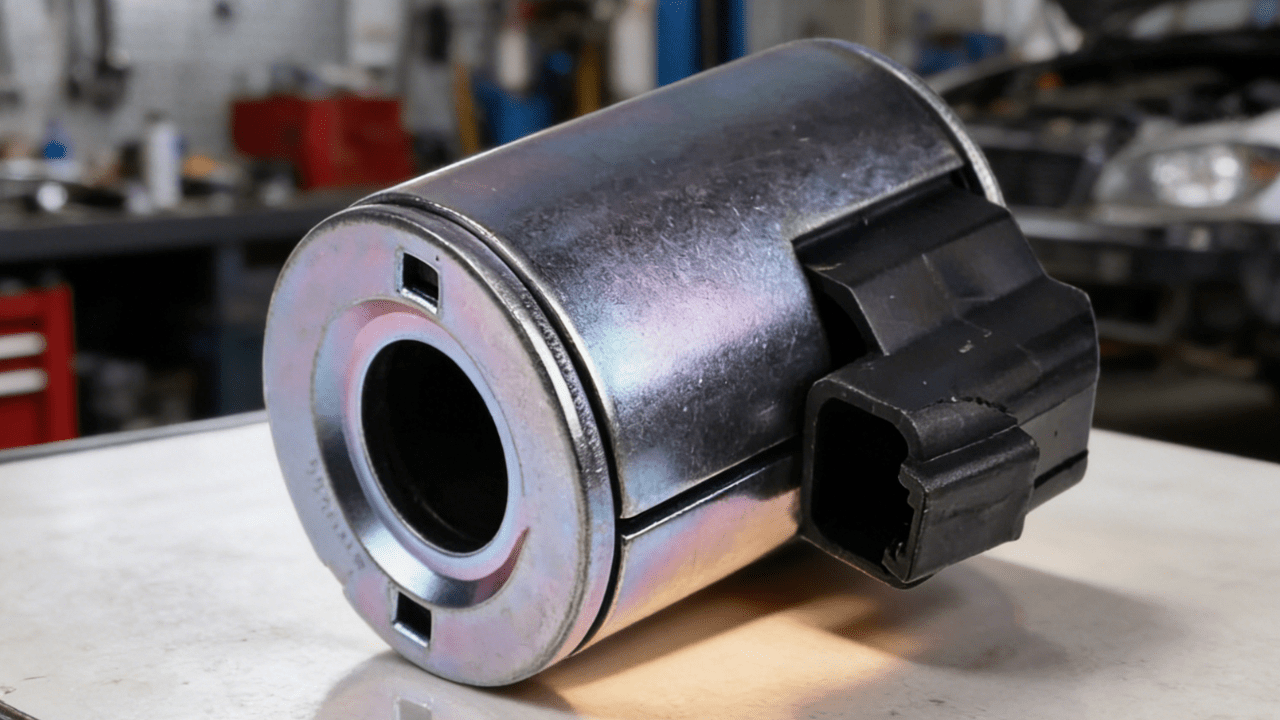

Solenoid Coil: Working, Testing, And Failure Signs In Automotive Systems

Key Takeaways

• A solenoid coil is an electrical coil made of tightly wound copper wire that creates a magnetic field to move parts in auto systems like starters, transmission valves, and fuel systems
• When current flows through the coil, it pulls a plunger or opens and closes a valve to perform mechanical work in the vehicle
• A bad solenoid coil can cause hard starting, shifting issues, stalling, warning lights, or intermittent electrical faults that leave you stranded
• Basic testing can be done with a multimeter by checking resistance and continuity, and by verifying proper voltage supply at the coil terminals
• Replacing damaged or burnt coils quickly helps prevent bigger failures in starters, transmissions, or fuel and hydraulic systems



What Is A Solenoid Coil in Auto Parts?

A solenoid coil is a tightly wound copper wire component that turns electrical energy from your vehicle’s battery into magnetic force. Think of it as the heart of an electromagnet. When power flows through those windings, the coil generates a strong magnetic field that can move metal parts with precision and speed.



Solenoids are suitable for a wide range of automation and control applications, and are crucial for users in both industrial and everyday settings.



In automotive systems, the solenoid coil is usually part of a larger solenoid assembly. This assembly typically includes a housing, a movable plunger or armature, a return spring, and sometimes valve components. The coil itself does not move. Instead, it creates the magnetism that moves everything else around it.



You will find solenoid coils in many places across your car, truck, or heavy equipment:

• Starter solenoid coil – Mounted on or near the starter motor, it engages the starter drive with the engine flywheel
• Transmission shift solenoid coils – Located inside automatic gearboxes to control hydraulic fluid flow and gear changes
• Fuel shutoff solenoid coils – Found on diesel engines to cut fuel supply when you turn off the ignition
• Hydraulic control solenoid coils – Used in heavy equipment like loaders and excavators to direct hydraulic fluid



Solenoids are widely used in automotive systems to carry electric current from the battery to the ignition system, as well as in fuel injection, transmission, and emission control systems. Solenoids are also utilized in electronic locking mechanisms such as door locks and safes, and are integrated into a wide range of everyday technology to handle precise mechanical operations.



Types of solenoids include linear solenoids, rotary solenoids, and solenoid valves, each designed for different types of motion and applications. Solenoids are classified by their power source, type of motion produced, and structural design.



At Fab Heavy Parts, the focus is on robust, heavy-duty solenoid coils designed for trucks, construction machines, agricultural equipment, and other commercial vehicles.

How Does A Solenoid Coil Work in A Vehicle?

The working principle is simple but effective. When electric current is applied to the coil, it generates an electromagnetic field inside it, and that field pulls or pushes a metal plunger or armature. The number of turns in the coil, the amount of electric current flowing, the length of the coil, and the core material all determine how strong the pull will be, as well as the distribution of the magnetic field.



Here is what happens step-by-step when you turn the key or press the start button in your car:

1. The battery sends electric current through the ignition switch to the starter solenoid coil
2. Electric current is applied to the coil, and the current flowing through the coil generates an electromagnetic field around its iron or metal core
3. This electromagnetic field pulls the metal plunger inside the solenoid toward the core
4. As the plunger moves, it closes a set of heavy-duty electrical contacts
5. Those contacts connect the battery directly to the starter motor
6. The starter motor spins and engages the engine’s flywheel to crank the engine



The magnetic field strength depends on a straightforward formula. In simple terms, more turns in the coil, higher electric current, and a longer coil length means a stronger and more uniform field. The iron or steel metal core inside the winding amplifies this effect, increasing the magnetic flux density by concentrating the field lines into a powerful force. The density of the magnetic field inside the solenoid depends on the number of turns, the current, and the core material, and a greater length-to-diameter ratio results in a more uniform field.



When you release the key, the current stops flowing. The electromagnetic field collapses almost instantly. The return spring then pushes the plunger back to its resting position, the contacts open, and the starter disengages. This all happens in a fraction of a second.



Proportional solenoids allow for variable control of the plunger's position based on the electrical input received. In actuation systems for proportional valves, controlling the current flowing through the solenoid coil allows for precise control over the valve opening, enabling fluid flow to be matched to specific application requirements.



The same basic principle applies whether you are looking at a long solenoid in a transmission valve body or a compact unit in an emissions system. The direction of plunger movement and the size of the device may differ, but the underlying magnetism is identical.



Main Automotive Uses of Solenoid Coils

Solenoid coils show up anywhere a vehicle needs electrical control over mechanical movement or fluid flow. They are the bridge between your car’s electronic brain and its physical actions. In automotive and industrial systems, a variety of hydraulic valves and components are available for precise flow control, direction, and pressure regulation. Solenoid valves, including directional control valves, are widely used for switching fluid direction and managing flow control in hydraulic systems. Solenoids can function as either 'normally closed' or 'normally open', depending on the application. Latching solenoids use a permanent magnet to hold the plunger in position without continuous current. Rotary solenoids convert linear magnetic force into angular motion, typically between 30° and 90°, while linear solenoids produce straight-line motion. DC C-Frame and D-Frame solenoids differ in their structural design, affecting their control and stroke behavior.



Starter Solenoid Coils

These are probably the most familiar type. The starter solenoid coil connects the battery to the starter motor when you command an engine start. In most applications, this solenoid is installed directly on the starter housing or mounted nearby on the fender or firewall.



When energized, the coil does two jobs at once:

• It pushes the starter drive gear into mesh with the flywheel ring gear
• It closes the main contacts to send high current to the motor



This design keeps the high-amperage circuit separate from your ignition switch, which only handles the low current needed to activate the coil.



Automatic Transmission Solenoid Coils

Modern automatic gearboxes rely heavily on solenoid coils. These components open and close hydraulic passages inside the valve body to control gear shifts, torque converter lockup, and line pressure. The result of the solenoid coil's operation is the movement of the valve spool, which changes the direction of fluid flow and enables precise gear selection. A typical 6-speed or 8-speed automatic may have six or more individual shift solenoids.



Electronic control modules send signals to these coils in precise patterns. Some operate as simple on-off valves. Others use pulse-width modulation to vary the flow, allowing smooth, nearly seamless gear changes. When one of these coils fails, you often end up in limp mode with harsh or delayed shifts.



Fuel System Solenoid Coils

Diesel engines commonly use fuel shutoff solenoid coils to cut fuel flow when you turn off the ignition. Without this device, a diesel would keep running as long as fuel reached the injection pump. The solenoid acts as a positive shutoff.



On gasoline engines, you will find solenoid coils in evaporative emission (EVAP) purge valves. These control fuel vapors from the tank, directing them to the engine for burning instead of releasing them to the atmosphere.



Heavy-Duty and Specialty Applications

Beyond the typical car or light truck, solenoid coils serve critical roles in:

Application	Function
Hydraulic valve solenoids	Direct oil flow in loaders, excavators, and forklifts
ABS and traction control	Modulate brake pressure during wheel slip events
EGR solenoids	Control exhaust gas recirculation for emissions
Power steering	Assist with hydraulic pressure in some systems

These applications demand great durability. A hydraulic solenoid on a backhoe may cycle thousands of times in a single day of work.



How to Test An Automotive Solenoid Coil

Before you start any electrical testing, take basic safety precautions. Disconnect the battery ground cable when required. Follow your vehicle's service guidelines. Avoid testing on hot engine components where burns or accidental shorts could occur.



Resistance (Ohms) Test

This is the most common check for a solenoid coil. You will need a digital multimeter set to the ohms function.

1. Disconnect the electrical connector from the solenoid
2. Place your multimeter leads on the two coil terminals
3. Read the resistance value displayed



For automotive solenoids, typical resistance ranges fall between:

1. Starter solenoids: 3–20 ohms
2. Transmission shift solenoids: 10–30 ohms
3. Fuel shutoff solenoids: 5-25 ohms



An open circuit reading (infinite resistance or “OL”) means the coil winding is broken. Very low resistance (less than 1 ohm) suggests shorted turns inside the winding. Either condition means the coil has failed.



Continuity and Ground Short Test

After checking resistance, verify there is no short to ground. This is important on coils designed with isolated windings.

• Measure resistance between each coil terminal and the metal housing
• The reading should exceed 100 kilohms (often showing as open)
• If you see low resistance, the insulation has broken down and the coil is grounded



Voltage Supply Test

Sometimes the coil is fine but is not receiving power. With the ignition on or during a start command, check for proper voltage at the coil connector.

• Use your multimeter on DC voltage
• One lead goes to battery ground, the other to the power wire
• You should see close to battery voltage (12–14V) when the circuit is commanded on



Low or missing voltage points to wiring problems, blown fuses, or control module issues rather than a bad coil.



Functional Bench Test

For a quick function check, you can apply 12 volts directly to the solenoid terminals and listen for a solid click as the plunger moves. If voltage and resistance readings look good but you hear no click or movement, the problem is likely mechanical—a stuck plunger or internal damage.

Common Symptoms of A Bad Solenoid Coil

Solenoid coil failures can be partial or complete. Sometimes they work fine when cold but fail after the engine warms up. Other times they quit suddenly with no warning. Learn to recognize the symptoms so you can address problems before they strand you.



Starter-Related Symptoms

When the starter solenoid coil fails, you may experience:

• Turning the key and hearing only a single click, or nothing at all
• Intermittent no-crank conditions that come and go
• The engine cranking only when the vehicle is cool, then refusing to start after a drive
• A grinding noise if the solenoid engages partially but does not fully mesh the drive gear



Transmission-Related Symptoms

A failing transmission solenoid coil often triggers:

• Delayed engagement when shifting from Park to Drive or Reverse
• Harsh, jarring shifts between gears
• Being stuck in one gear (limp mode or fail-safe mode)
• Warning lights on the dashboard and stored trouble codes like P0750 or similar shift solenoid malfunction codes



Industry data suggests that about 70% of solenoid-related transmission codes correlate with high coil resistance—a sign the windings are degrading.



Fuel and Emission Symptoms

Problems with fuel or emission solenoid coils may cause:

• Engine stalling when warm, especially at idle
• Difficulty shutting off a diesel engine (the engine runs on after key is turned off)
• Rough idle when EVAP purge or EGR solenoids fail
• Check engine lights and emissions test failures



Physical Signs

• Sometimes you can spot trouble with your eyes and nose:
• Burnt smell near the solenoid location
• Melted or discolored plastic on the connector or housing
• Visible corrosion at terminals and connectors
• Dark, damaged insulation visible through the housing



These physical signs are strong indicators that the solenoid coil or its immediate environment is compromised and needs attention.



Why Solenoid Coils Fail And How to Prevent Damage

Solenoid coils fail from heat, vibration, electrical overload, and contamination. Heavy-duty and off-road environments accelerate these problems. Understanding the causes helps you take steps to extend coil life.



Thermal Stress

Heat is the number one enemy of coil windings. The insulation on the copper wire can only handle so much temperature—typically rated between 105°C and 155°C depending on the material class.



Problems that cause overheating include:

• Extended cranking times when the engine will not start
• High ambient temperatures in the engine bay
• Poor heat dissipation from blocked airflow or mounting position
• Coils stuck in the energized position due to control faults




Electrical Issues

Low system voltage is particularly damaging. When voltage drops, the coil draws more current trying to develop the same magnetic field strength. This extra current produces more heat inside the windings.



Other electrical problems include:

• Incorrect wiring or poor connections causing resistance
• Short circuits in the harness or control module
• Using a coil outside its designed duty cycle (continuous versus intermittent rating)



Mechanical and Environmental Factors

Solenoid coils in vehicles face tough conditions every day:

• Oil or coolant leaks that soak into the windings and degrade insulation
• Water intrusion through damaged connectors or seals
• Road salt causing corrosion on terminals and housings
• Constant vibration loosening internal connections or cracking brittle insulation



Prevention Tips

You can help your solenoid coils last longer with some simple practices:

• Repair leaks quickly – Do not let fluids pool around electrical components
• Avoid unnecessary long cranking – If the engine does not start in 10 seconds, stop and diagnose the problem
• Keep connectors clean and tight – Use dielectric grease on terminals when specified
• Inspect harness routing – Make sure wires are not rubbing on exhaust or moving parts
• Maintain your charging system – A healthy battery and alternator protect all electrical components

Repair or Replace? Handling A Failed Solenoid Coil

In most automotive applications, a failed solenoid coil is replaced as a complete assembly rather than rewound on the vehicle. Rewinding requires specialized equipment and precise specifications that are not practical in a typical shop setting.



Typical Repair Approaches

The replacement strategy depends on the type of solenoid and its location:

Solenoid Type	Common Replacement Approach
Starter solenoid	Replace entire starter or solenoid assembly
Transmission solenoid	Replace individual solenoid or full valve body solenoid kit
Fuel shutoff solenoid	Replace complete solenoid module
Hydraulic solenoid	Replace valve cartridge assembly

For transmission solenoids, many technicians recommend replacing the full set of shift solenoids when one fails, especially on high-mileage vehicles. This prevents repeat teardowns and addresses components that may be nearing the end of their service life.



Following Proper Procedures

When replacing a solenoid assembly, follow the vehicle's service manual for:

• Correct torque specifications on fasteners
• Replacement of gaskets, O-rings, or seals
• Fluid fill and level procedures
• Relearn or adaptation procedures for electronic controls



This is especially important for transmission and engine control solenoids where the control module may need to relearn valve characteristics.



Sourcing Quality Replacement Parts

For heavy-duty trucks, construction machines, and commercial vehicles, sourcing durable replacement solenoid coils is essential. Fab Heavy Parts stocks robust components designed for compatibility with demanding applications. Quality matters when you need a product that will hold up to heat, vibration, and long duty cycles.



Post-Repair Verification

After installation, take time to verify everything works correctly:

• Clear any diagnostic trouble codes stored in the control module
• Operate the system under load to confirm proper function
• Check for leaks around gaskets and seals
• Listen for abnormal noises or vibrations
• Perform a road test or work-cycle test as appropriate for the equipment



These steps ensure the repair is complete and the new component is functioning as designed.



FAQ

Q1: How long does an automotive solenoid coil usually last?

A1: A quality solenoid coil can last 8 to 15 years or over 150,000 miles under normal conditions. Heavy towing, extreme heat, short trips, and off-road use can shorten its life. Starter coils often fail sooner with frequent restarts. Transmission and fuel coils may fail due to age or contamination. Regular maintenance helps extend lifespan.



Q2: Can a weak battery damage a solenoid coil?

A2: A weak battery doesn’t directly burn out a coil, but low voltage causes the solenoid to engage longer, generating excess heat that can damage the windings over time. Keeping your battery and charging system healthy protects the coil.



Q3: Is it safe to drive with a failing transmission solenoid coil?

A3: The vehicle may still move but with harsh or delayed shifts or limp mode. Driving with a bad coil increases wear and can lead to major transmission damage. It’s best to fix solenoid issues promptly to avoid costly repairs.



Q4: Can solenoid coils be rewound instead of replaced?

A4: Rewinding is possible but rarely practical for automotive parts. Replacement assemblies are widely available, match specs, and are quicker to install. Rewinding is usually reserved for obsolete or specialty equipment.



Q5: What tools do I need to check a solenoid coil at home?

A5: You’ll need a digital multimeter, basic hand tools, safety gear, and vehicle wiring info. These let you check resistance, voltage, and function. For complex issues, consult a professional to avoid mistakes.
