Stop Solenoid: How It Works and How to Diagnose Its Issues

Key Takeaways

• The fuel stop solenoid is an electromagnetic device that controls the engine’s fuel supply by regulating the fuel line, enabling smooth starts, stable idling, and reliable shutdowns. In its normal state (unenergized), the solenoid remains in a closed position, preventing fuel flow.
• It plays a major role in safety, cutting off fuel instantly during emergencies to prevent damage or accidents. In addition to cutting off fuel, some engine shutdown systems also restrict air intake to ensure the engine stops safely in all scenarios.
• A malfunctioning solenoid can cause engine issues, including hard starts, stalling, or failure to shut down.
• Testing involves checking wiring, listening for clicks, confirming plunger movement, and verifying voltage with or without a multimeter.
• Driving with a faulty solenoid is unsafe, as it can cause unpredictable engine behavior or make the engine unable to shut off.



The fuel stop solenoid—also known as the shut-down solenoid, or fuel shut-off solenoid—is an essential electromagnetic device in engine control and fuel management. In its normal state (unenergized), the solenoid is in a closed position, blocking the fuel line to prevent fuel flow. When energized, it opens the fuel line to allow engine operation. The solenoid is typically located at the inlet of the fuel injection pump or in the fuel line, especially in diesel engines used in construction machinery, vehicles, and generators. Its operation is controlled by the engine’s electrical system or control panel, which manages the solenoid’s state for starting and stopping the engine. The solenoid works in conjunction with other parts such as brackets and electrical connectors to ensure proper fuel management and engine safety. Its main purpose is to regulate the engine’s fuel flow, ensuring smooth operation, better fuel economy, and overall safety. When selecting a solenoid, note that parts may have changed due to engineering updates, so it is important to check the online parts catalog by your specific engine model and serial number to ensure compatibility and reliable performance. In many cases, such as in generators or construction equipment, the engine stop solenoid is critical for controlled and safe engine shutdown.

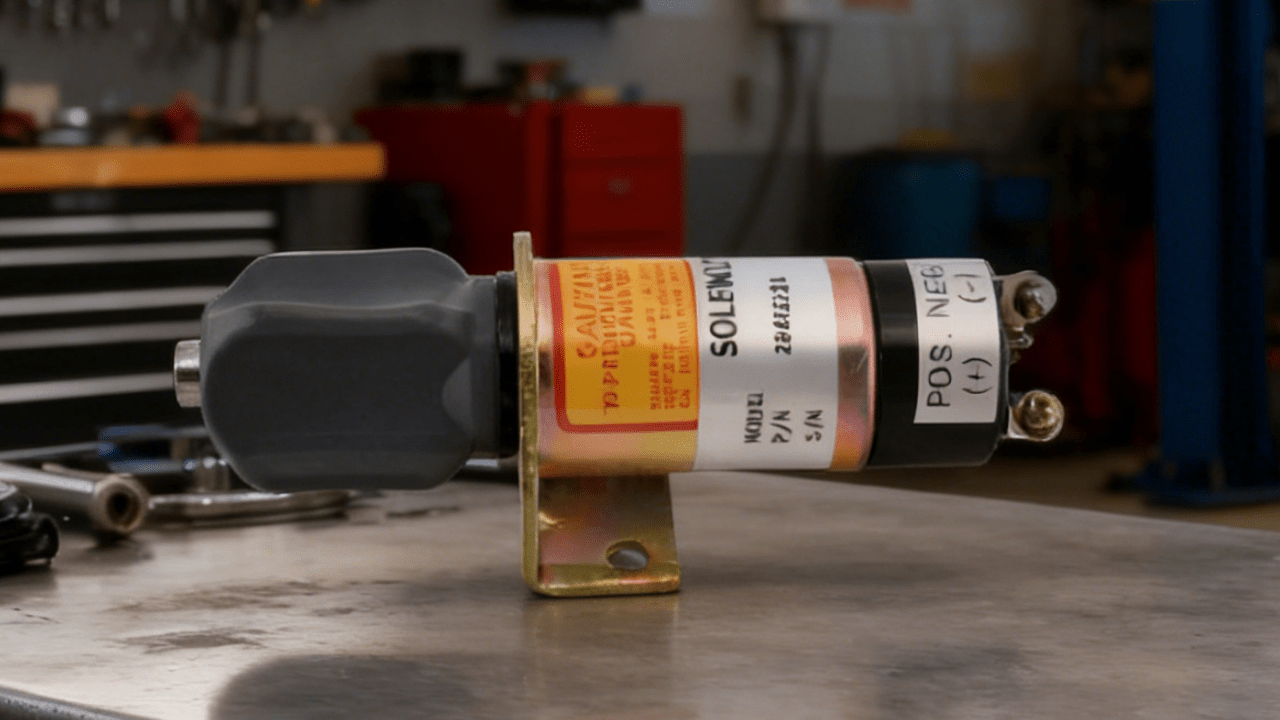

What is a Fuel Stop Solenoid?

A fuel stop solenoid is an electromechanical device responsible for controlling the fuel supply to an engine. It is often referred to as a diesel fuel shut-off solenoid valve or fuel cut solenoid valve and is commonly used in diesel fuel systems.



The exact installation location depends on the engine type and configuration. Installation may require additional parts such as mounting brackets or wiring harnesses, depending on the engine design. In some engines, the solenoid is mounted on the carburetor or fuel rail, while in others, it is built into the fuel injection pump. Some solenoids are specifically designed for engines with certain cylinder configurations, such as 6-cylinder diesel engines, to ensure proper fit and function. To confirm the precise position on a specific engine, refer to the manufacturer’s documentation or consult a professional.



This solenoid uses an electromagnetic coil to pull a plunger, opening the fuel line when energized and sealing the line when de-energized. When you press the start button or turn the key, the solenoid is energized, allowing fuel to flow so the engine starts. It is vital for engine safety. In emergency situations—such as overspeed conditions or internal malfunctions—it can immediately stop the fuel supply, preventing severe damage or potential accidents.



By controlling fuel flow with precision, the solenoid helps optimize fuel usage. It ensures fuel is only delivered when needed, reducing waste and improving efficiency—an important advantage in fuel-sensitive industrial machinery.



The diesel fuel stop solenoid valve also supports smooth engine operation, helping maintain stable starts, idling, and shutdowns. It prevents issues like engine run-on or diesel “afterburn,” which can happen if fuel continues flowing after shutdown. Unlike gasoline engines, diesel engines do not use spark plugs and instead rely on compression for ignition, making a reliable stop solenoid essential for safe and effective engine shutdown.



What Does a Fuel Stop Solenoid Do?

In engine management, the fuel stop solenoid is a key component.



It provides on/off control of the fuel supply, allowing accurate regulation of fuel delivery and engine performance. When energized, the solenoid opens to let fuel reach the engine. When de-energized, or if electrical power is lost, it means the plunger is released and a spring seals the fuel port, cutting off the fuel supply and stalling the engine.



Additionally, the solenoid contributes to improved fuel efficiency. By controlling fuel delivery precisely, it ensures fuel is supplied only when required, reducing unnecessary consumption and boosting overall performance—especially important in transportation and heavy-duty equipment where fuel economy matters.



Types of Stop Solenoids

Fuel stop solenoids are available in a range of types, each tailored to meet the unique demands of different engines and fuel supply systems. The two most common types are normally closed (NC) and normally open (NO) solenoids. Normally closed solenoids are the best seller in the market because they provide a reliable way to cut off the fuel supply when the engine is at rest or the vehicle is turned off, ensuring safety and efficiency. When energized, these solenoids open to allow fuel flow; when de-energized, they cut the fuel, stopping the engine instantly.



Some solenoids are specifically designed for certain engine types, such as diesel or gasoline engines, and may require a particular oil or fuel to function at their best. Additionally, some solenoids come equipped with extra safety features or mounting options to suit various engine requirements. It’s important to select a stop solenoid that matches your engine’s power requirements, fuel flow rate, and compatibility with your vehicle to prevent damage and ensure smooth operation. Note that some solenoids may have changed part numbers due to engineering updates or improvements, so always verify compatibility with the latest catalog before purchasing.



Finding the right fuel stop solenoid is easy with online platforms. On the product page, users can sort and filter items by price, brand, or customer rating, making it simple to find the best option for their needs. You can also check if a particular solenoid is in stock before making a purchase. Detailed product descriptions and specifications are available to read, helping you make an informed decision before you add items to your cart or select the “buy” button to place your order. Shipping is available to various locations, including the Netherlands, so you can have your chosen solenoid delivered right to your door.



The website’s account system allows you to save your favorite products, track your orders, and manage your account information with ease. Secure payment options ensure your money is safe, and customer support is always available to help with any questions or issues that may arise. By reading product reviews and checking the number of stars, you can get a sense of the solenoid‘s quality and performance, helping you find the best seller for your engine.



With a wide range of fuel stop solenoids available, you can rest assured that you’ll find the right part to meet your engine’s fuel supply needs. Take the time to read the information provided, use the search and filter functions to sort through options, and turn to expert advice if needed. By selecting the right solenoid, you’ll ensure your engine runs smoothly, efficiently, and safely for years to come.



Causes of Stop Solenoid Failure

The stop solenoid is a vital part of any engine control system, responsible for managing the fuel supply and ensuring the engine shuts down safely when needed. However, several factors can cause a stop solenoid to stop functioning properly, leading to issues with fuel flow, engine shutdown, and overall reliable performance of your vehicle or equipment. Understanding these causes can help you prevent unexpected failures, save money on repairs, and maintain the safety and efficiency of your system.

1. Worn or Corroded Electrical Connectors Over time, the electrical connectors that deliver power to the stop solenoid can become worn or corroded. This disrupts the electrical flow, making it difficult for the solenoid to open or shut as required. When this happens, the fuel shut function may fail, leading to problems with engine control and potentially leaving the engine running when it should stop.
2. Failed Plunger or Spring Inside every stop solenoid, the plunger and spring are essential for controlling fuel flow. If these parts wear out or break, the solenoid may not open or close correctly, causing unreliable fuel shut-off. This can lead to the engine failing to stop or, in some cases, not starting at all.
3. Incorrect Installation or Damaged Brackets Proper installation is crucial for the solenoid to function as intended. If the mounting brackets are loose, misaligned, or damaged, the solenoid may not operate smoothly. This can result in inconsistent fuel flow and unreliable engine shutdown, compromising both performance and safety.
4. Fuel Contamination Contaminants such as dirt, water, or debris in the fuel can clog the solenoid’s internal passages or damage its electrical components. This not only affects the solenoid’s ability to control fuel supply but can also lead to premature failure of the part.
5. Overvoltage or Electrical Surges Electrical surges or overvoltage conditions can damage the solenoid’s coil or other internal components. Poor electrical regulation or exposure to high-voltage events can lead to a sudden loss of function, making it impossible for the solenoid to control fuel flow and engine shutdown.
6. Lack of Maintenance Regular inspection and maintenance are key to keeping the stop solenoid and its associated systems in top condition. Neglecting routine checks for corrosion, loose connections, or worn parts can lead to unexpected failures and costly downtime.
7. Poor Quality or Counterfeit Solenoids Using low-quality or counterfeit solenoids can significantly reduce the lifespan and reliability of your engine’s fuel control system. Always choose high-quality, genuine parts from reputable sellers to ensure your solenoid meets the required standards for safety and performance.
8. Compatibility Issues Installing a solenoid that isn’t compatible with your engine or fuel system can cause operational problems and early failure. It’s essential to select a solenoid that matches your engine’s specifications for power, fuel flow, and mounting requirements.
9. Physical Damage Physical impacts, drops, or mishandling during installation or replacement can damage the solenoid’s internal components. Handle all parts with care to avoid unnecessary failures.
10. Age and Wear Like any engine component, stop solenoids have a limited service life. Over time, normal wear and tear can lead to reduced performance or complete failure. Regularly replacing the solenoid at recommended intervals helps maintain reliable engine control and fuel shut-off.



In summary, a range of factors—from electrical issues and mechanical wear to poor installation and incompatible parts—can lead to stop solenoid failure. By understanding these common causes and taking proactive steps in maintenance and part selection, you can ensure your engine’s fuel supply system remains safe, efficient, and reliable. This not only helps prevent unexpected breakdowns but also saves money and extends the life of your vehicle or equipment.



What are the Symptoms of a Bad Stop Solenoid?

A failing fuel stop solenoid, also known as an idle stop solenoid in carbureted engines, can lead to several noticeable engine issues. The idle stop solenoid and idle stop are responsible for managing the throttle position at idle and preventing engine run-on or dieseling by ensuring the throttle closes properly when the ignition is turned off. If the solenoid fails in the open position, the engine may continue to idle or run after the ignition is turned off, requiring emergency shutdown methods. Common symptoms include:



Engine Fails to Shut Down

The engine keeps running after turning off the ignition because the solenoid cannot cut off the fuel supply.



Hard Starting or No Start

If the solenoid cannot open properly, the engine may struggle to start or fail to start at all.



Irregular Idling

Erratic or unstable idling can occur due to inconsistent fuel delivery.



Sudden Stalling

The engine may stall unexpectedly if the solenoid intermittently closes while running.



Clicking Noises

A weak or inconsistent clicking sound may indicate solenoid coil problems.



These symptoms are often found during routine maintenance or when diagnosing engine shutdown problems.



How to Test an Engine Stop Solenoid?

Testing a fuel stop solenoid involves checking its electrical and mechanical functions:



Visual Inspection

Look for damaged wiring, loose connectors, corrosion, or physical damage.



Listen for a Click

Turn the ignition on and off—most functional solenoids produce a “click” sound when energized.



Check for Movement

Remove the solenoid if needed and observe the plunger. It should retract when powered and extend when power is removed.



Verify Power Supply

Use a multimeter to confirm that voltage is reaching the solenoid when the key is turned on.



If any of these tests fail, the solenoid may need cleaning, rewiring, or replacement.



Can You Still Drive with a Bad Solenoid?

Driving with a faulty fuel stop solenoid is not recommended.



A bad solenoid can:

• prevent the engine from shutting off properly;
• cause unpredictable stalling;
• reduce engine performance;
• lead to unsafe operation in emergency situations;



In some cases, the engine may not start at all. Even if it runs, the risk of sudden shutdown or inability to stop the engine makes it unsafe. It is important to replace the faulty solenoid promptly to maintain engine performance and safety.



How to Test a Stop Solenoid with a Multimeter?

A multimeter can help confirm whether the solenoid is receiving power and whether its internal coil is functioning properly.



Steps to test with a multimeter:

1. Disconnect the solenoid from the wiring harness.

2. Set the multimeter to resistance (Ω).

3. Measure coil resistance:

• Place the two probes on the solenoid's terminals.
• A healthy solenoid typically shows a stable resistance value (exact specs depend on the engine model).
• A reading of 0 Ω (short circuit) or OL (open circuit) indicates a faulty coil.



4. Check voltage supply:

• Switch the multimeter to DC voltage.
• Probe the connector while turning the ignition on.
• You should see the rated voltage (usually 12V or 24V, depending on the system).



5. Power the solenoid directly (optional advanced test):

• Apply battery voltage to the terminals.
• The solenoid should produce a clear click and retract the plunger.



If resistance, voltage, or actuation is abnormal, the solenoid likely needs replacement.



FAQ

Q1: What causes a fuel stop solenoid to fail?

A1: Common causes include worn internal components, burned coils, corroded connectors, damaged wiring, or contamination inside the fuel system.



Q2: Can a bad fuel stop solenoid prevent my engine from starting?

A2: Yes. If the solenoid fails to open, it blocks fuel flow, causing hard starts or a complete no-start condition.



Q3: What is the expected lifespan of a fuel stop solenoid?

A3: Lifespan varies by engine type and operating environment, but many last several years under normal conditions. Heavy use, vibration, or dirty fuel systems can shorten it.



Q4: Is replacing a stop solenoid expensive?

A4: Most fuel stop solenoids are relatively affordable compared to other engine components, and replacement is usually straightforward.



Q5: Do I need special tools to test a fuel stop solenoid?

A5: Basic tools like a multimeter, a power source, and standard hand tools are sufficient for most testing and troubleshooting.
