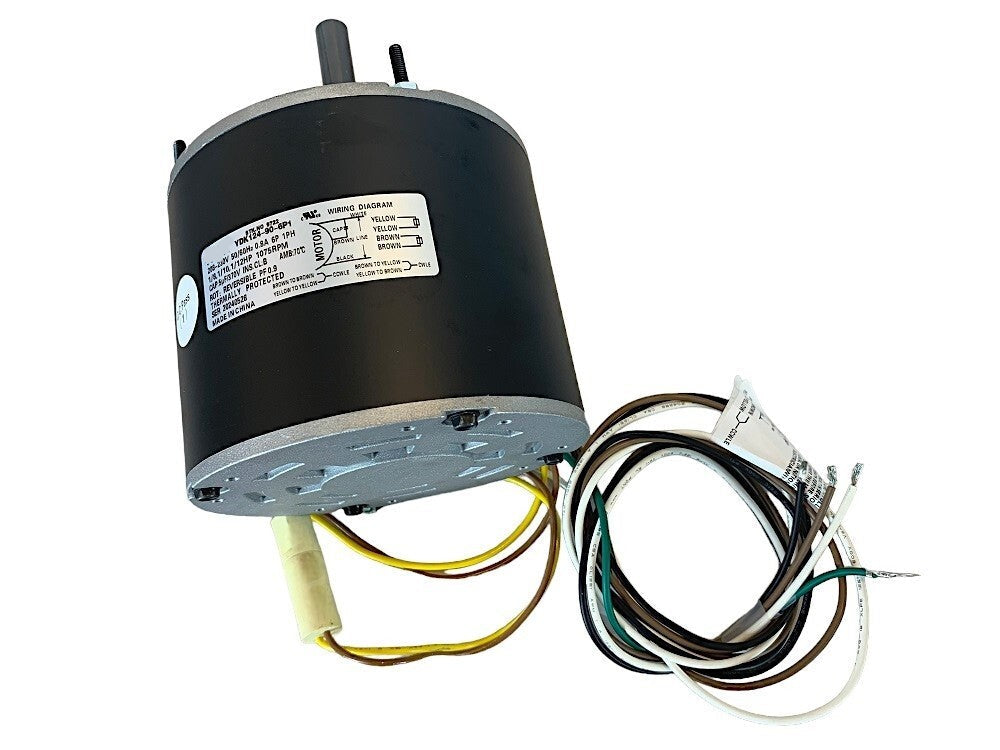

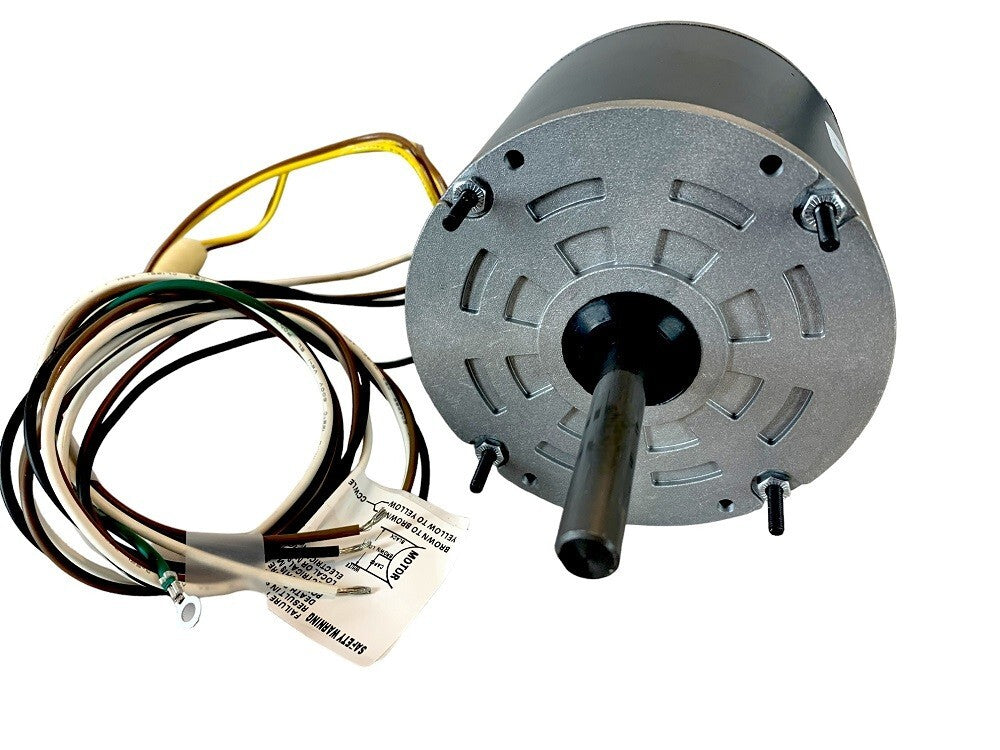

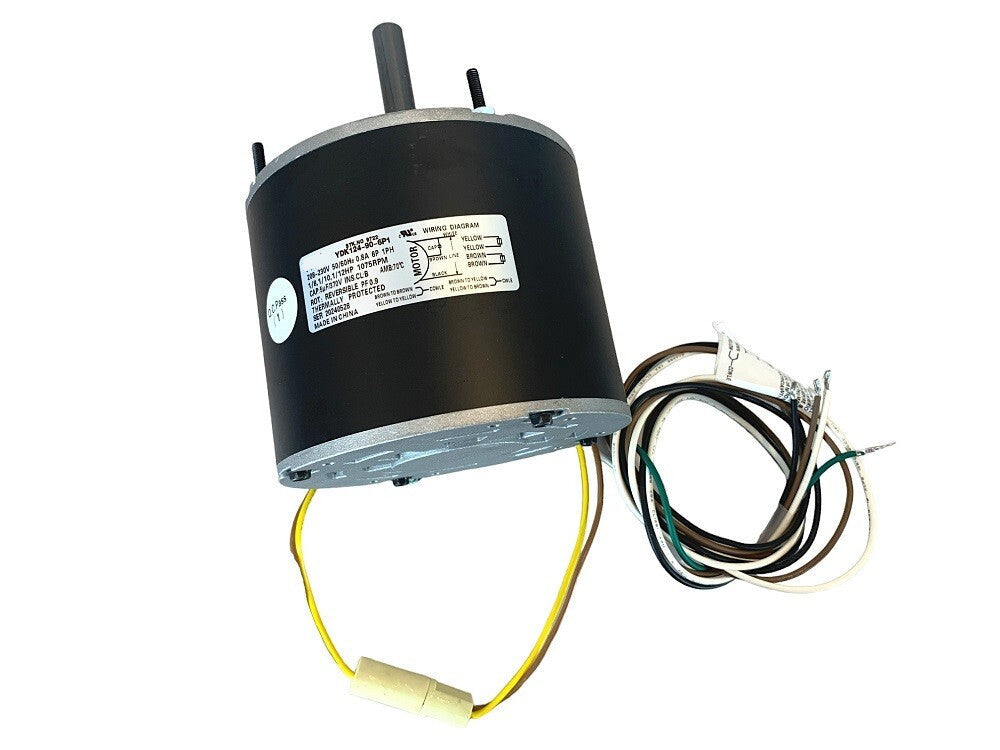

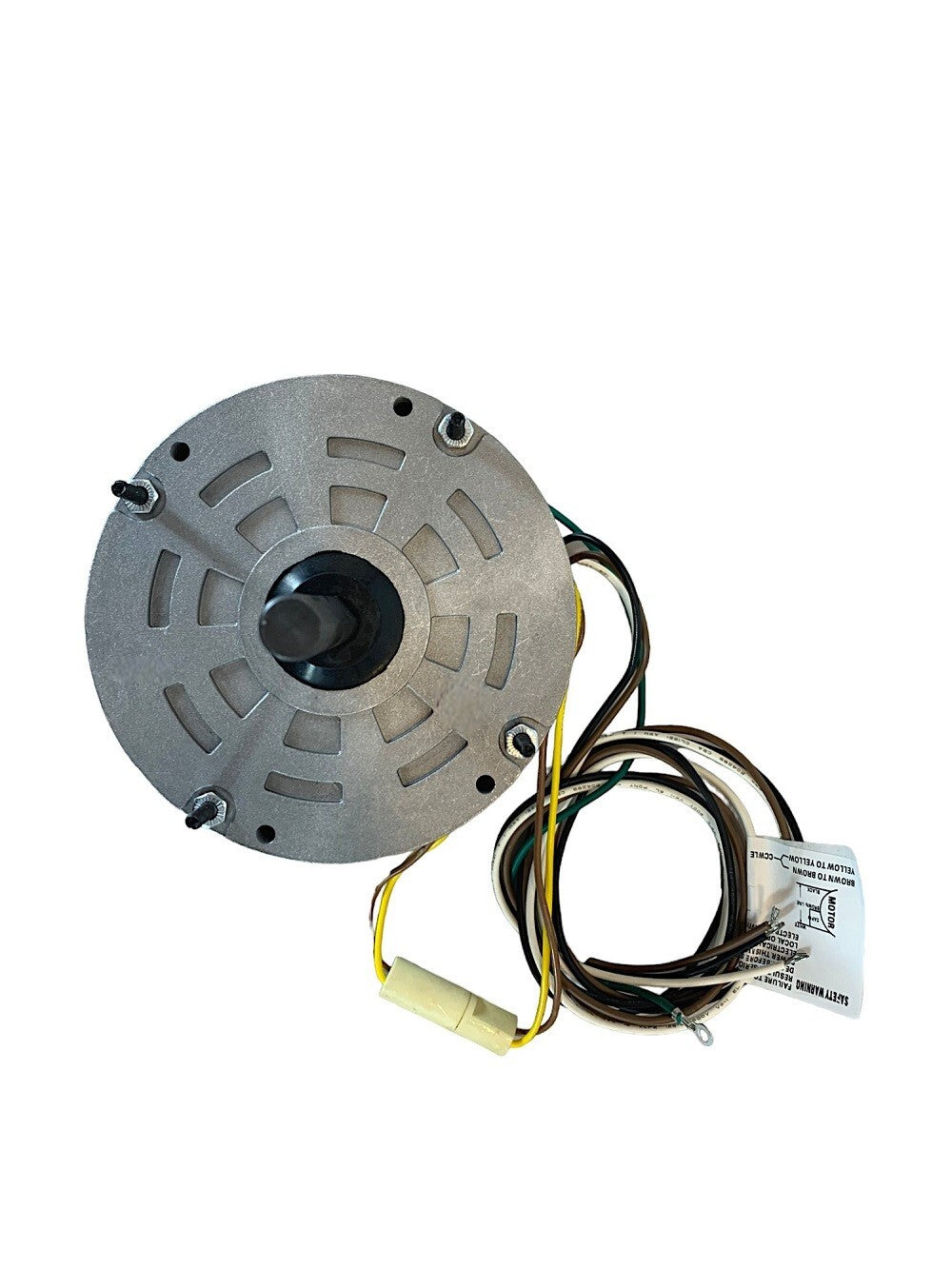

Fits for Century 9722 Condenser Fan Motor 1/8 1/10 1/12 HP 1075 RPM 208-230V 1-Speed Aftermarket Replacement
Fits for Century 9722 Condenser Fan Motor 1/8 1/10 1/12 HP 1075 RPM 208-230V 1-Speed Aftermarket Replacement is backordered and will ship as soon as it is back in stock.
-
Powering 10,000+ Commercial Fleets
-
One Year Warranty
-
Easy 60-day Return
-
No Hidden Charges Upon Arrival
Compatibility Information
| Part Number | 9722, F42E05A50, 3RCR6 |
|---|---|
| Model | 208-230V, 1-Speed, 208 |
Description
Description
Fits for Century 9722 Condenser Fan Motor 1/8 1/10 1/12 HP 1075 RPM 208-230V 1-Speed Aftermarket Replacement
Compatible Part Numbers
- 9722
- F42E05A50
- Dayton 3RCR6
Specifications
- Horsepower: 1/8, 1/10, 1/12 HP
- Speed: 1075 RPM, single speed
- Voltage: 208-230 V
- Amperage: 0.8 Amps
- Mounting bolt circle diameters: 4.33", 4.42", and 4.62"
- Frame size: 42 - 5" diameter
- Shaft dimensions: 1/2" x 3"
- Lead length: 36"
- Capacitor required: 5MFD-370VAC (not included)
- Reversible rotation
- Maximum ambient temperature: 60 °C
- Insulation class: B
- Design: Totally enclosed air over air
- Bearings: Sleeve bearings
- Mounting shaft orientation: Up or down
- Water-resistant reverse plug
- Automatic overload protection
- UL and CSA recognized
Compatible Equipment
- Century Condenser Fan Motors: Model 9722 and equivalents
- Dayton Motors: Model 3RCR6
This aftermarket replacement condenser fan motor is designed for use in various HVAC condenser fan applications. It features a permanent split capacitor (PSC) design with multiple horsepower settings, offering versatility for different system requirements. The motor provides high starting torque and energy efficiency compared to shaded pole motors due to the capacitor-assisted start.
The motor includes extended through bolts for secure mounting and supports installation at any angle. Its reversible rotation capability allows compatibility with different fan blade orientations. The totally enclosed air-over-air design protects the motor internals from dust and debris, extending operational life in demanding environments.

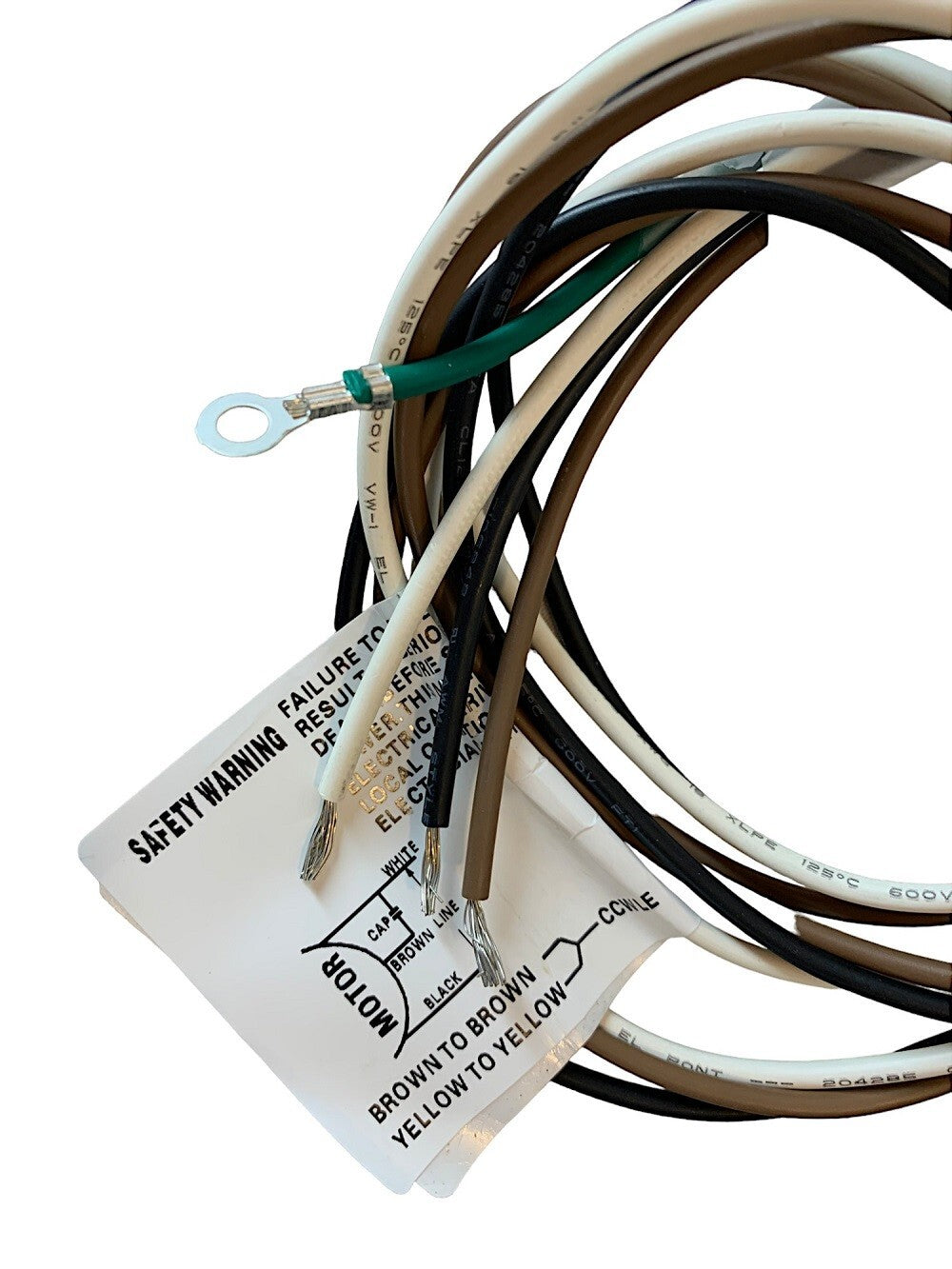

Electrical connections are made via four wires: two for power supply and two for the capacitor (capacitor not included). The water-resistant reverse plug ensures durability in moist conditions. Sleeve bearings provide smooth operation, while the motor’s insulation class B rating and maximum ambient temperature of 60 °C define its thermal limits.
This replacement motor meets safety standards, being recognized by UL and CSA, and includes automatic overload protection to prevent damage during electrical faults. Its shaft size and mounting bolt circle diameters match commonly used condenser fan motors, making it a direct fit replacement.
